Angxun/Angthumb/XLZ OPS23 V1.0
Logs
chipChipset
cpuSocket
Socket G2 (rPGA988B)
speedFSB speed
Empty
moboForm factor
OEM / Proprietary
dimDimensions
190mm x 170mm
chipCache
None/Integrated in the CPU
ramMax RAM size
16GB
ramRAM type
204-pin DDR3 SO-DIMM
pwrPSU connector
OEM/Proprietary
tag Also known as
connI/O ports
1x
3.5mm Line-Out
1x
3.5mm Microphone
1x
HDMI
1x
RJ-45 LAN
1x
SATA II
1x
Serial
6x
USB 2.0
2x
USB 3.0
1x
VGA
1x
mSATA
cardExpansion slots
1x
Mini-PCIe
notes Notes

Extended daughter card:

  • Expandable 1 USB3.0 interface and 3 USB2.0 interfaces.
  • One HDMI interface can be extended, supporting HDMI1.2, and the maximum resolution is 2560*1600@60Hz, so you can choose between extended DP.
  • One DP interface can be extended, and the maximum resolution is 2560*1600@60Hz, so you can choose between extended HDMI.
  • 1 standard 2.5mm 19V/12V DC power socket; 1 x 2x2Pin ATX power socket
  • 1 Line-out
Last updated 2025-07-25T13:55:45Z
Board info score is 6.3/10
bios 0 BIOS files available
drv 3 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
10.001.0505.2015
OS support
Windows 10
Arch
x86 , x86-64
Size
9.4MB
Filename
Name
Version
7.082.0317.2014
OS support
Windows 7
Arch
x86 , x86-64
Size
3.7MB
Filename
Name
Version
8.029.0314.2014
OS support
Windows 8.x
Arch
x86 , x86-64
Size
3.6MB
Filename
doc No board documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2011-02-11
File
Logs
Chip
Release date
2011-02-11
File
Logs
image1 Image 1 of 4 (Angxun/Ancthumb/XLZ)
image2 Image 2 of 4 (Angxun/Ancthumb/XLZ)

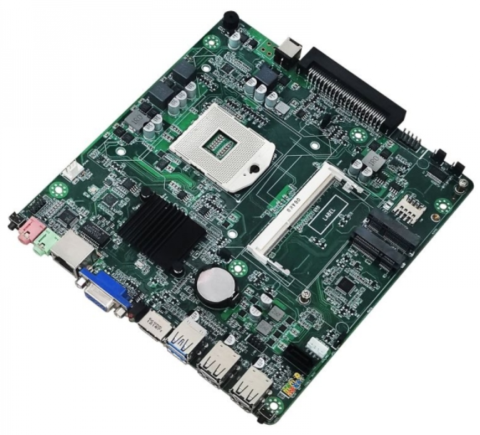

image3 Image 3 of 4 (Angxun/Ancthumb/XLZ)
image4 Image 4 of 4 (Angxun/Ancthumb/XLZ)
