Angxun/Angthumb/XLZ H61M-S13
Logs
chipChipset
cpuSocket
Socket H2 (LGA1155)
speedFSB speed
Empty
moboForm factor
ITX (215 mm x 191 mm)
dimDimensions
220mm x 171mm
chipCache
None/Integrated in the CPU
ramMax RAM size
16GB
ramRAM type
DDR3 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
connI/O ports
1x
3.5mm Audio Combo
1x
HDMI
1x
RJ-45 LAN
4x
SATA II
8x
USB 2.0
2x
USB 3.0
1x
VGA
cardExpansion slots
1x
M.2 (M key)
1x
PCIe x1
1x
PCIe x16
wrench No board specific known issues
  • Recalled Product (Certain revisions only)

One or more revisions of this hardware component were recalled from the market because of certain reasons like defects (including major breaking ones), overheating, fire, or safety hazards. Users of said hardware component should take precaution while using it or even avoid using it altogether.

Always look the hardware compoment's page for more info about it.

Last updated 2025-06-27T16:35:39Z
Board info score is 5.5/10
chip Chips
-> Chipset part
Intel BD82H61 (PCH)
cpufam CPU family support
Empty
bios 0 BIOS files available
drv No drivers available
doc No board documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Socket
Release date
File
Logs
Socket
Release date
2013-01
File
Logs

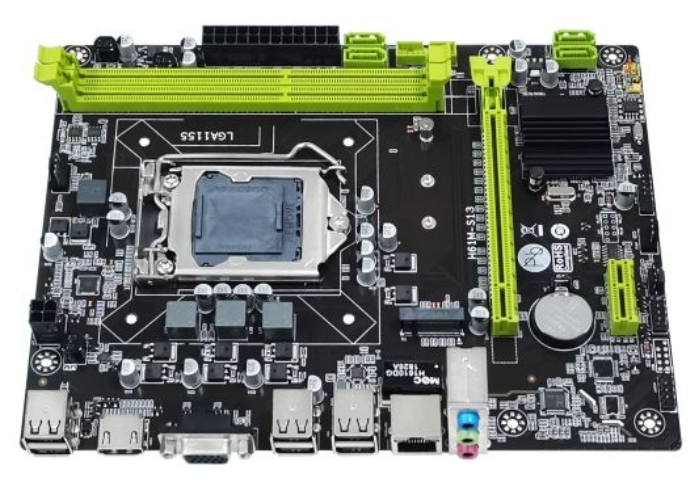

image1 Image 1 of 2 (Angxun/Ancthumb/XLZ)

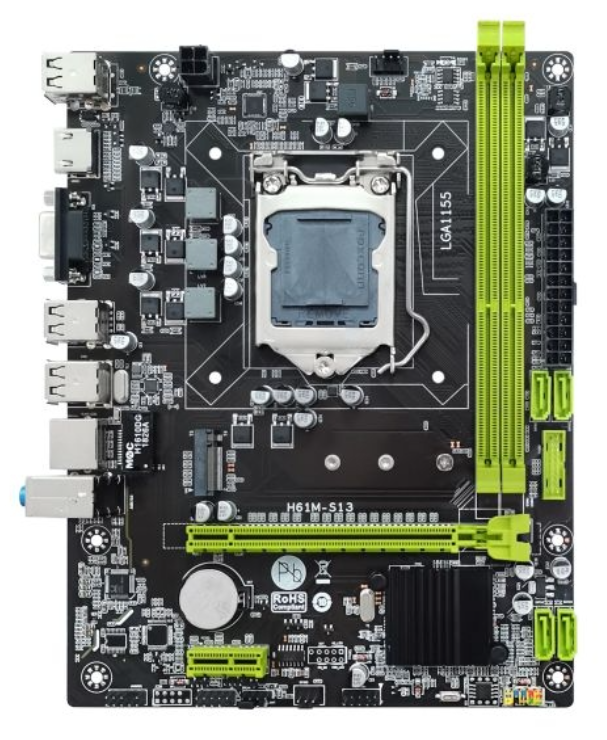

image2 Image 2 of 2 (Angxun/Ancthumb/XLZ)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
