Angxun/Angthumb/XLZ GW7-POS23 V1.1
Logs
chipChipset
cpuSocket
FCBGA1023 (BGA1023)
speedFSB speed
Empty
moboForm factor
Mini ITX (max 170 x 170 mm)
dimDimensions
170mm x 170mm
chipCache
None/Integrated in the CPU
ramMax RAM size
8GB
ramRAM type
204-pin DDR3 SO-DIMM
pwrPSU connector
DC Jack (12V) ATX P4 connector 12v (4-pin P4)
tag Also known as
connI/O ports
1x
3.5mm Line-Out
1x
3.5mm Microphone
1x
GPIO
2x
LVDS
1x
Parallel
1x
RJ-45 LAN
2x
SATA II
2x
Serial
6x
USB 2.0
2x
USB 3.0
1x
VGA
1x
mSATA
cardExpansion slots
1x
Mini-PCIe
Last updated 2025-09-11T20:11:29Z
Board info score is 6/10
bios 0 BIOS files available
drv No drivers available
doc No board documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

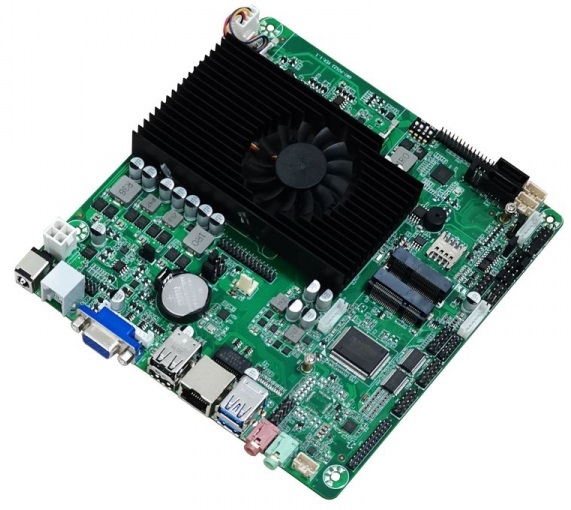

image1 Image 1 of 3 (Angxun/Ancthumb/XLZ)

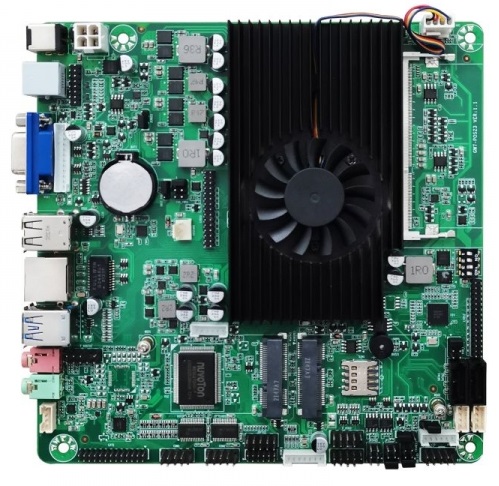

image2 Image 2 of 3 (Angxun/Ancthumb/XLZ)
image3 Image 3 of 3 (Angxun/Ancthumb/XLZ)
