Angxun/Angthumb/XLZ B450M-AMD V1.0
Logs
chipChipset
cpuSocket
Socket AM4 (mPGA1331)
speedFSB speed
Empty
moboForm factor
ITX (215 mm x 191 mm)
dimDimensions
216mm x 180mm
chipCache
None/Integrated in the CPU
ramMax RAM size
64GB
ramRAM type
DDR4 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)
tag Also known as
connI/O ports
1x
3.5mm Audio Combo
1x
HDMI
1x
PS/2 keyboard
1x
PS/2 mouse
1x
RJ-45 LAN
4x
SATA III
1x
Serial
2x
USB 2.0
6x
USB 3.2 Type-A
1x
VGA
cardExpansion slots
1x
M.2 (M key)
1x
PCIe x1
1x
PCIe x16
Last updated 2025-07-01T20:52:03Z
Board info score is 6.6/10
bios 1 BIOS file available

vendor AMI - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
07/06/2024
Core version
UEFI
BIOS version
Logs
drv No drivers available
doc No board documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

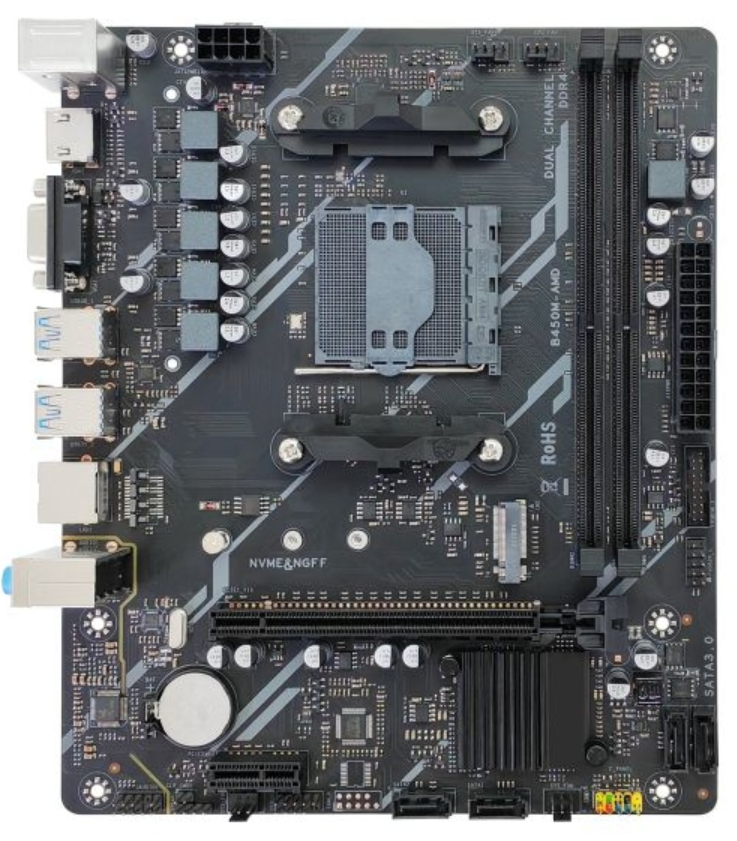

image1 Image 1 of 2 (Angxun/Ancthumb/XLZ)

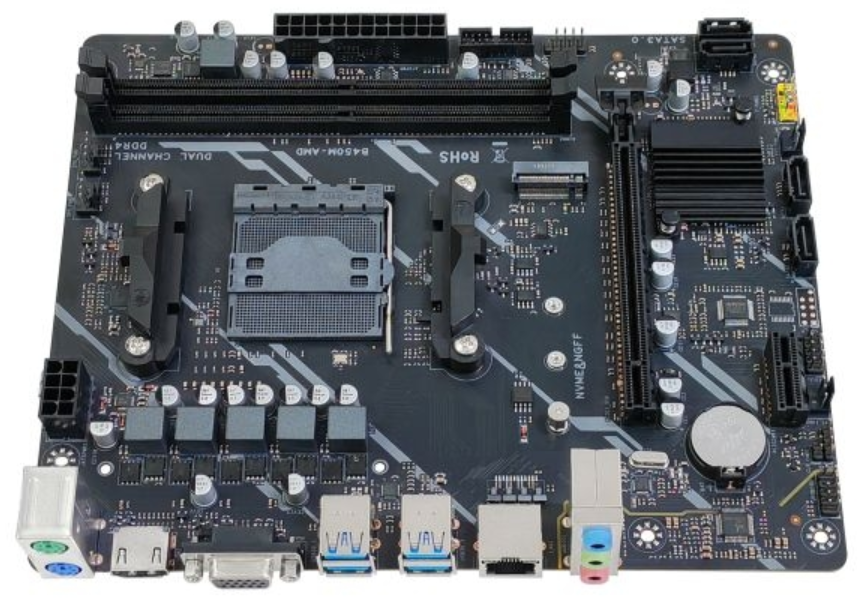

image2 Image 2 of 2 (Angxun/Ancthumb/XLZ)
