Angxun/Angthumb/XLZ B250-AI V2.1
Logs
chipChipset
cpuSocket
Socket H4 (LGA1151)
speedFSB speed
Empty
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
240mm x 185mm
chipCache
None/Integrated in the CPU
ramMax RAM size
32GB
ramRAM type
DDR4 UDIMM
pwrPSU connector
Molex (4-pin) ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)
tag Also known as
connI/O ports
1x
3.5mm Audio Combo
1x
PS/2 keyboard
1x
PS/2 mouse
1x
RJ-45 LAN
4x
SATA III
4x
USB 2.0
6x
USB 3.0
1x
mSATA
cardExpansion slots
11x
PCIe x1
1x
PCIe x16
Last updated 2025-07-10T14:10:21Z
Board info score is 6/10
bios 0 BIOS files available
drv No drivers available
doc No board documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

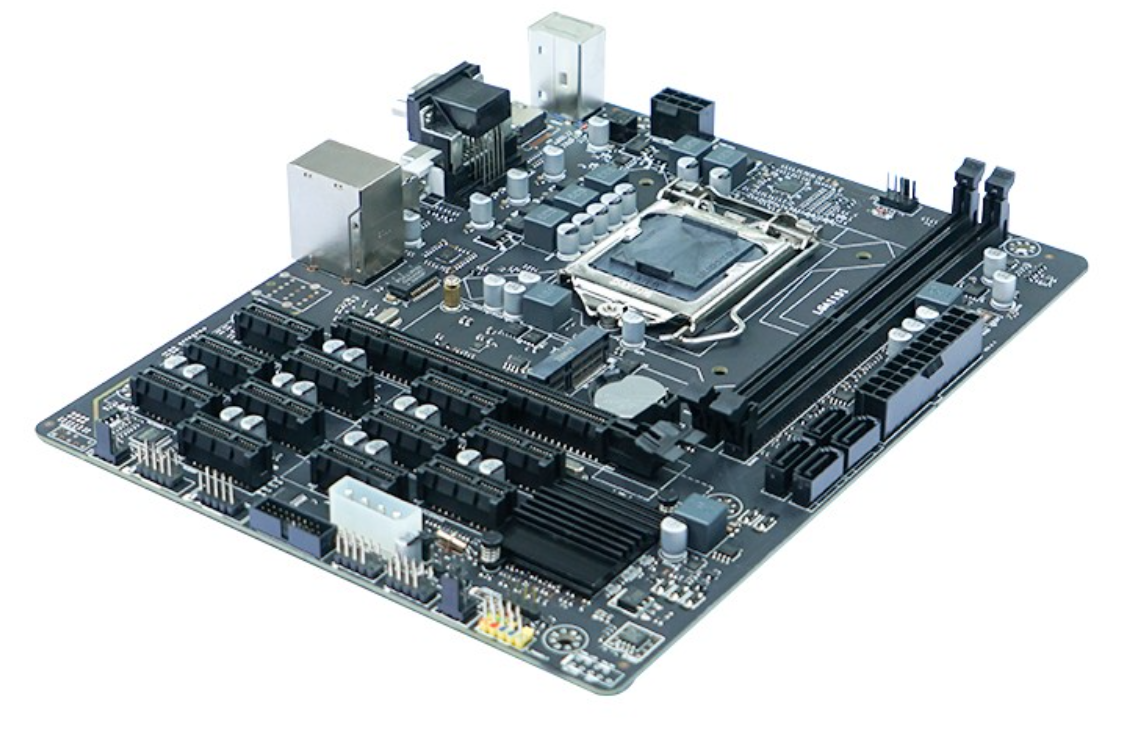

image1 Image 1 of 4 (Angxun/Ancthumb/XLZ)

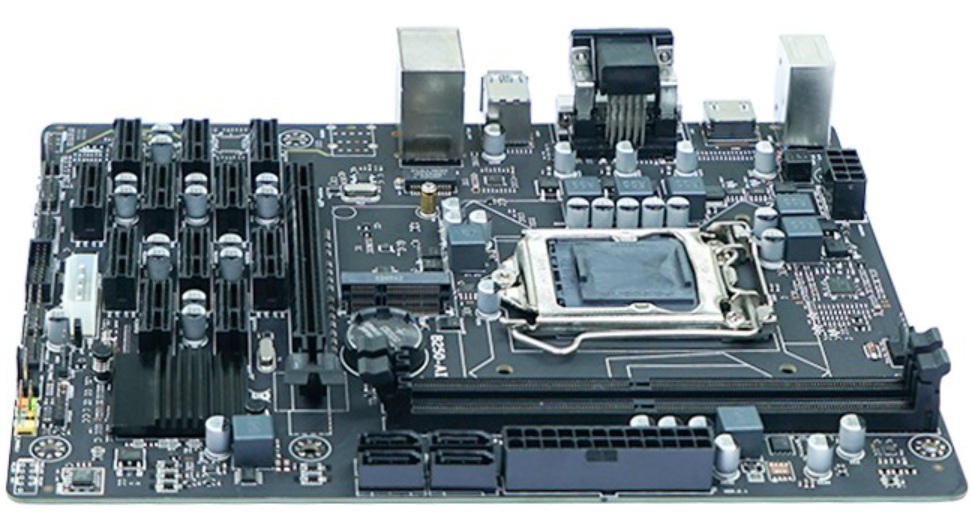

image2 Image 2 of 4 (Angxun/Ancthumb/XLZ)

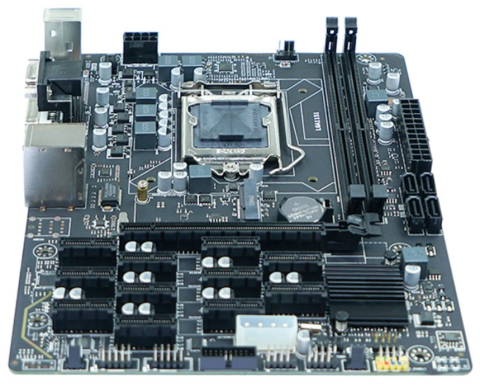

image3 Image 3 of 4 (Angxun/Ancthumb/XLZ)
image4 Image 4 of 4 (Angxun/Ancthumb/XLZ)
