Amstrad VSC386SXD V2.01
Chipset
Sockets
FSB speeds 16MHz33MHz
Form factorLPX (max 229 x 330 mm)
DimensionsEmpty
Cache
None/Integrated in the CPU
Max RAM size
8MB
RAM type 30-pin SIMM
PSU connector
I/O ports1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
1x
VGA
Expansion slotsEmpty
Known issues
- Leaky Ni-Cd clock battery
The Ni-Cd battery may be leaking, risking damage to PCB layers & nearby components. Promptly remove the battery & clean corrosion/alkaline salts from the board. Use white vinegar to dissolve salts, but exercise caution as vinegar can corrode exposed metals. A thorough examination & repair may be needed. Replace battery with guide: https://github.com/wiretap-retro/Not-A-Varta
- Expansion slots are on proprietary riser
The listed slots are on the riser card that came with the motherboard.
If you have this board make sure you have the riser for it.
Last updated 2025-06-28T13:13:32Z
Board info score is 7/10
Chips
-> Chipset part
-> Human Interface
-> RAMDAC
-> Signal transmitter/receiver
-> Video
No drivers available
No board documents available
Chip
Release date
File
Logs
Chip
Release date
1995-11-30
File
Logs
Chip
Release date
1995-11-22
File
Logs
Chip
Release date
1990-03-10
File
WD75C10, WD76C10, WD76C10LP System Controller for 80386SX and 80286 Desktop and Portable Compatibles
Logs
Chip
Release date
1990-10-22
File
Logs
Chip
Release date
1990-11-05
File
Logs
Chip
Release date
1994-07
File
Logs
Chip
Release date
1996-01
File
Logs

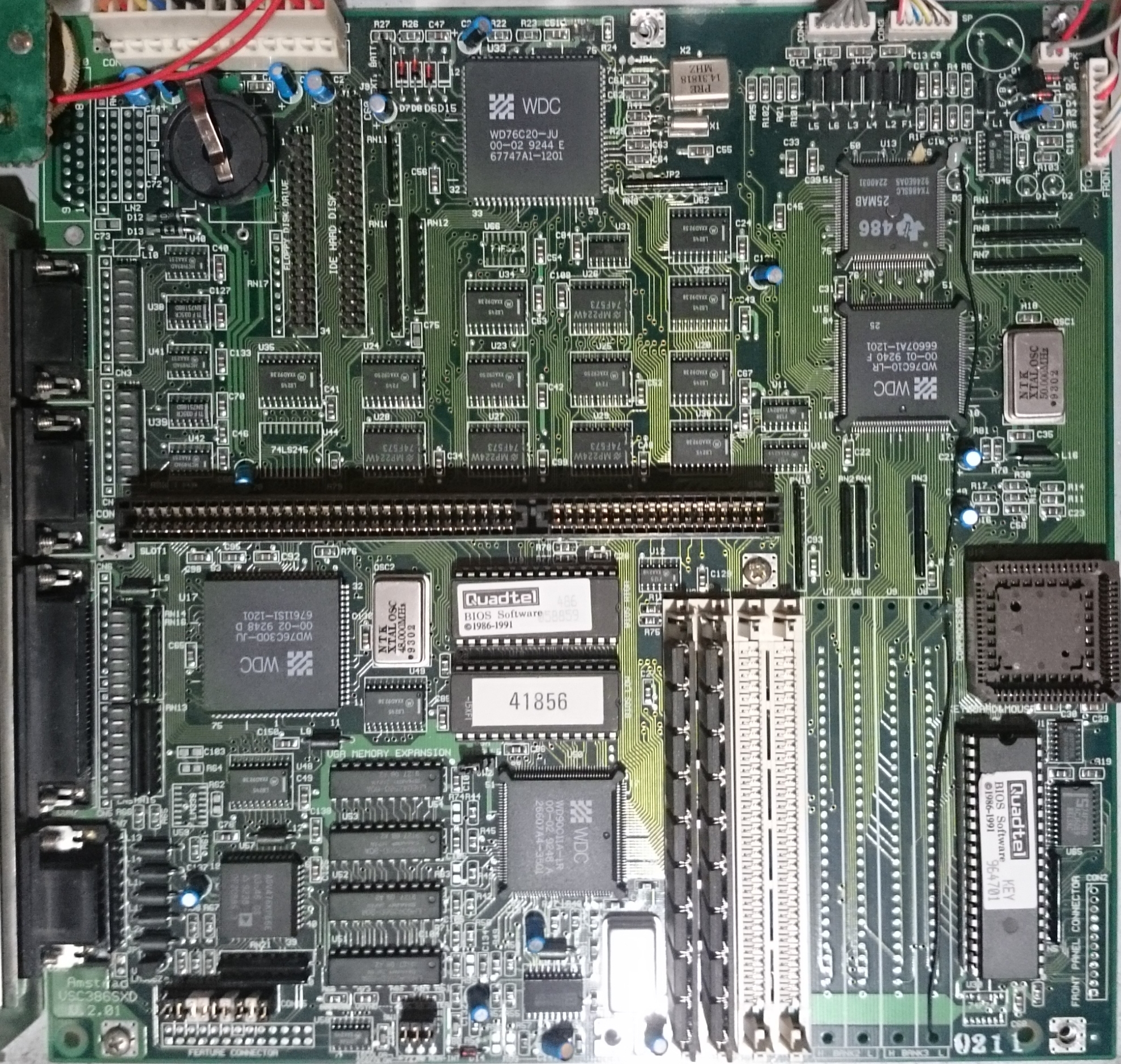

Image 1 of 3 (Mister_rf)

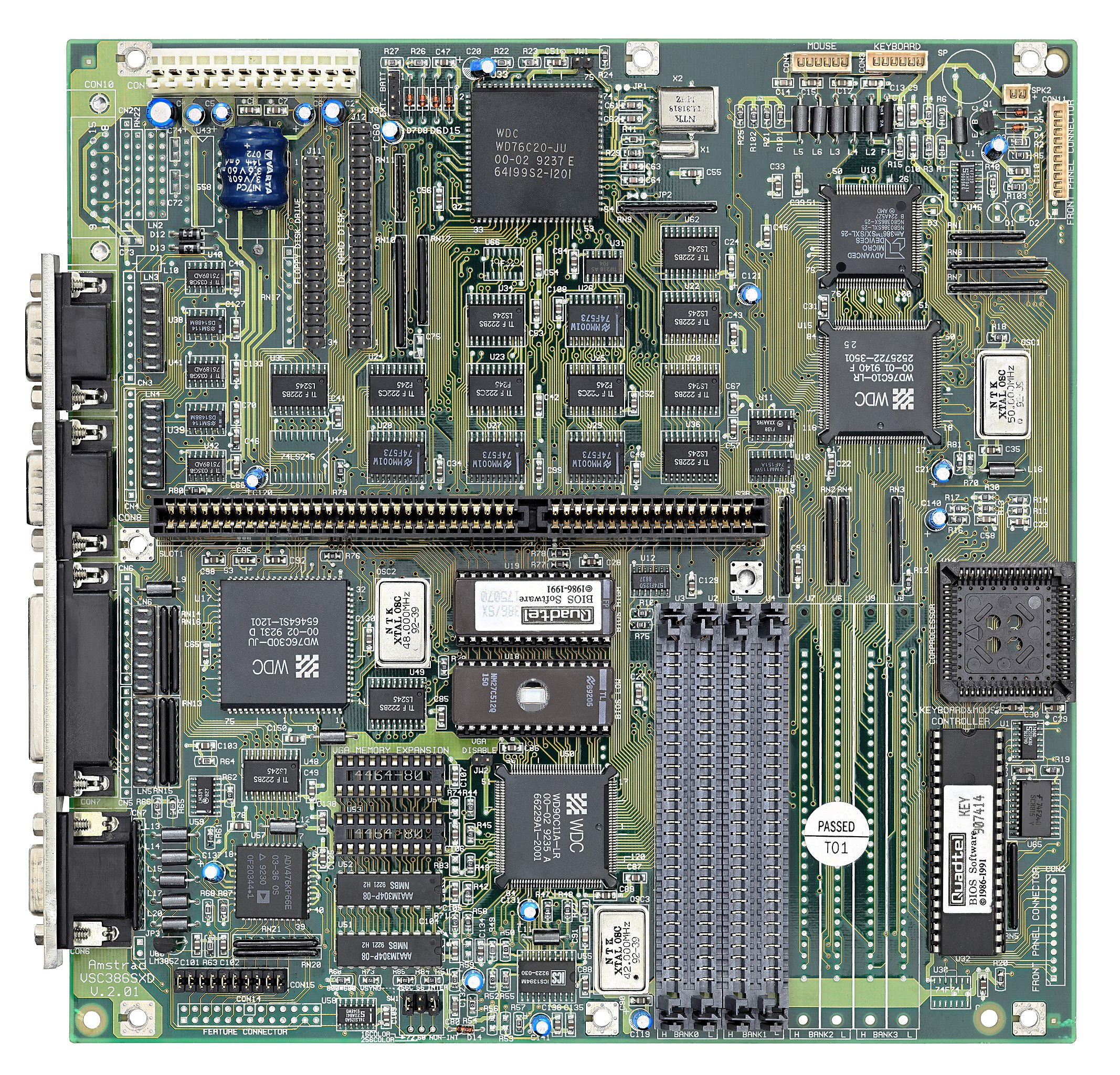

Image 2 of 3 (keropi)
Image 3 of 3 (keropi)
Disclaimer
The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
