AMD Pike (Engineering Sample)
Logs
chipChipset
cpuSockets
Socket AM3 (mPGA941) Socket AM3+ (mPGA942)
speedFSB speed
Empty
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
Empty
chipCache
None/Integrated in the CPU
ramMax RAM size
32GB(8GB DDR3 Modules)
ramRAM types
DDR3 UDIMMDDR3 UDIMM ECC
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)

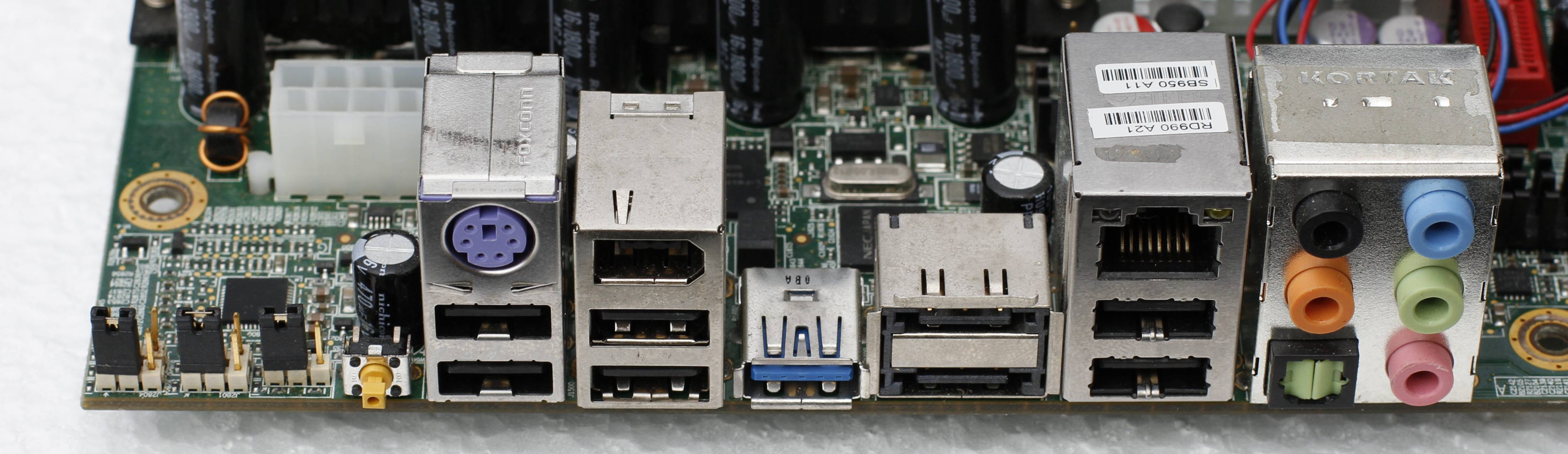

connI/O ports
1x
3.5mm Audio Combo
1x
FireWire 400
1x
PS/2 keyboard
1x
RJ-45 LAN
6x
SATA II
6x
USB 2.0
1x
USB 3.0
2x
eSATA II
cardExpansion slots
1x
32-bit PCI
1x
Mini-PCIe
2x
PCIe x16
2x
PCIe x16 @ x8
1x
PCIe x4
wrench Known issues
  • Engineering Sample

This is an engineering sample, not a final product, for testing and evaluation.

  1. Compatibility: Limited compatibility with hardware, software, or peripherals.
  2. Stability: Potential for crashes, freezes, or unexpected behavior.
  3. Performance: Differences in memory bandwidth, data transfer rates, or overall system performance.
  4. Feature Limitations: Missing or incomplete features compared to the final product.
  5. Engineering Features: Additional options or settings not found in commercial versions.
Last updated 2025-02-01T17:40:19Z
Board info score is 8.1/10
bios 1 BIOS file available

vendor AMI - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
WPK1A12X_Weekly_11_10_12
Note
Core version
APTIO
BIOS version
Logs
drv 4 drivers available
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 7 Windows Vista Windows XP/2k3
Arch
x86
Size
7.2MB
Filename
Version
OS support
Windows 7 Windows Vista Windows XP/2k3
Arch
x86
Size
7.3MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 7 Windows Vista Windows XP/2k3
Arch
x86
Size
11.3MB
Filename
Version
OS support
Windows 7 Windows Vista Windows XP/2k3
Arch
x86
Size
7.2MB
Filename
doc No board documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2006
File
Logs

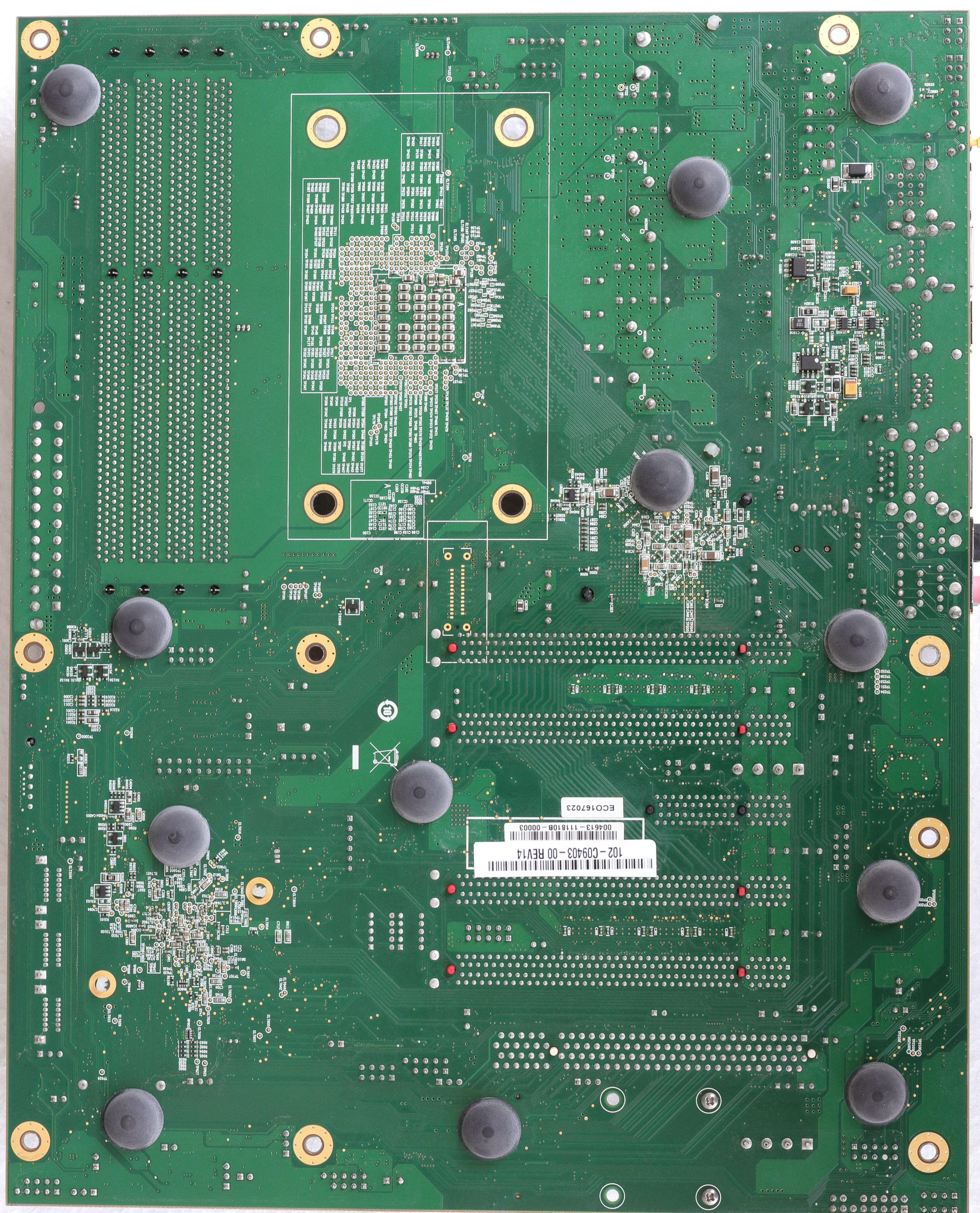

image1 Image 1 of 3 (Rigo "0xCats" Reddig)

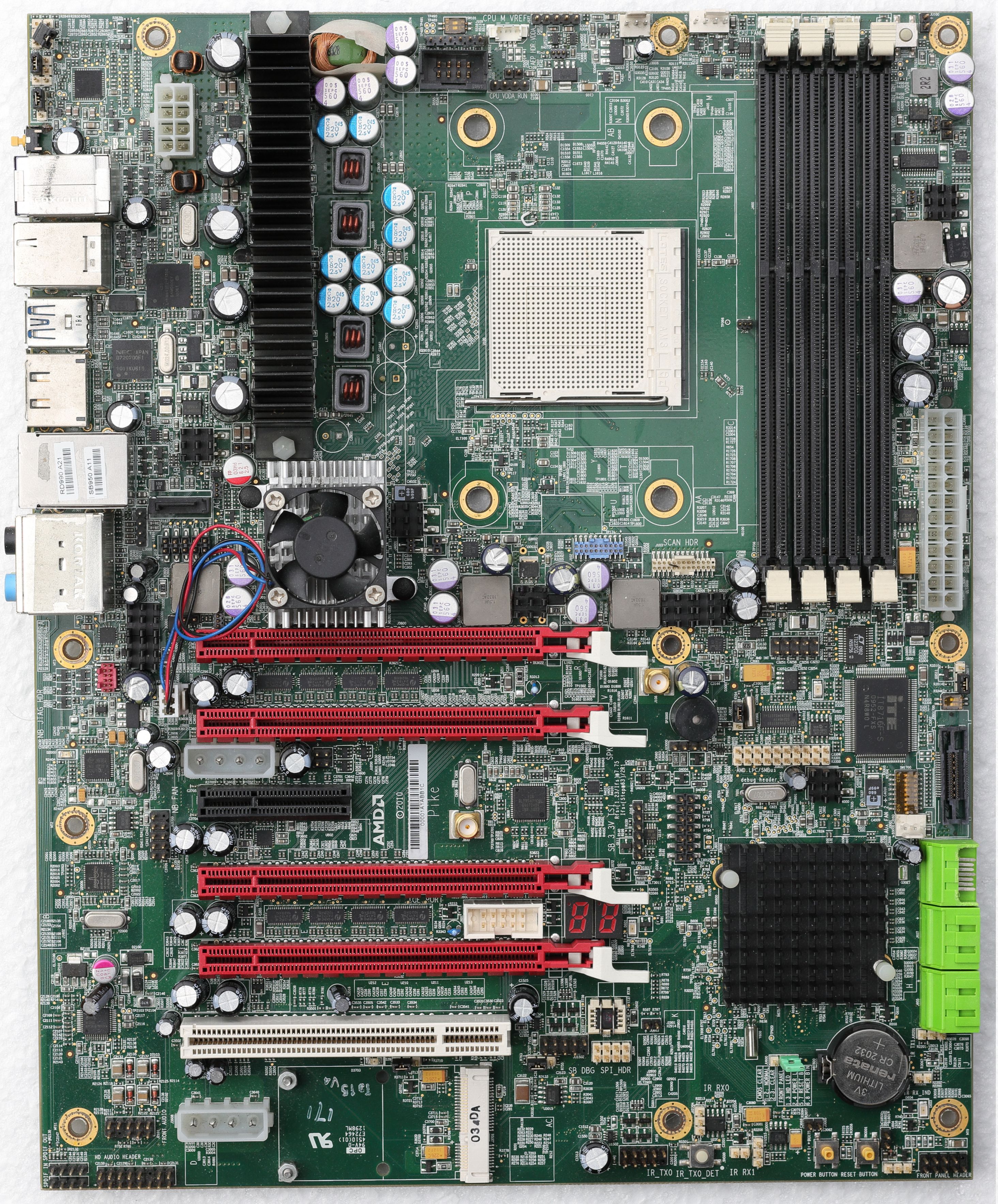

image2 Image 2 of 3 (Rigo "0xCats" Reddig)

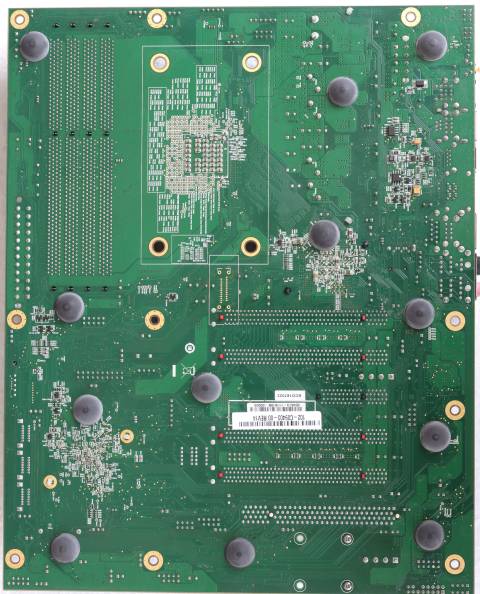

image3 Image 3 of 3 (Rigo "0xCats" Reddig)
