AMD Am286ZLX/HW/MRYB20
Logs
chipChipset
Empty
cpuSocket
PQFP216
speedFSB speed
12MHz
moboForm factor
OEM / Proprietary
dimDimensions
Empty
chipCache
None/Integrated in the CPU
ramMax RAM size
8MB
ramRAM type
Empty
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
connI/O ports
1x
AT Keyboard
cardExpansion slots
3x
16-bit ISA
notes Notes

Evaluation board for the Am286ZX/Am286LX SoC processors

Last updated 2025-10-03T14:45:40Z
Board info score is 6.6/10
chip Chips
cpufam CPU family support
bios 1 BIOS file available

vendor Phoenix - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Advanced Micro Devices
Note
Core version
A286 1.01
BIOS version
Logs
drv No drivers available
doc No board documents available

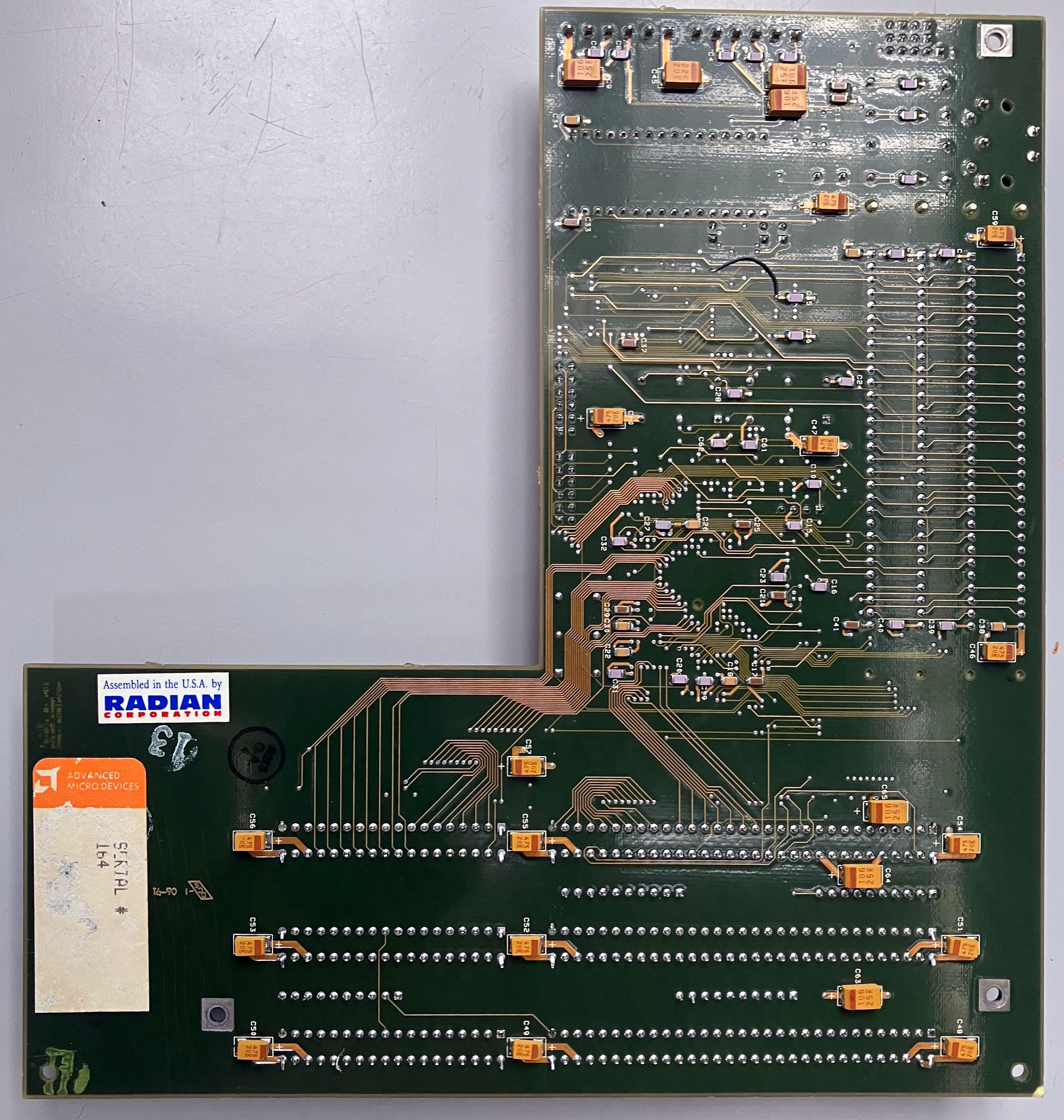

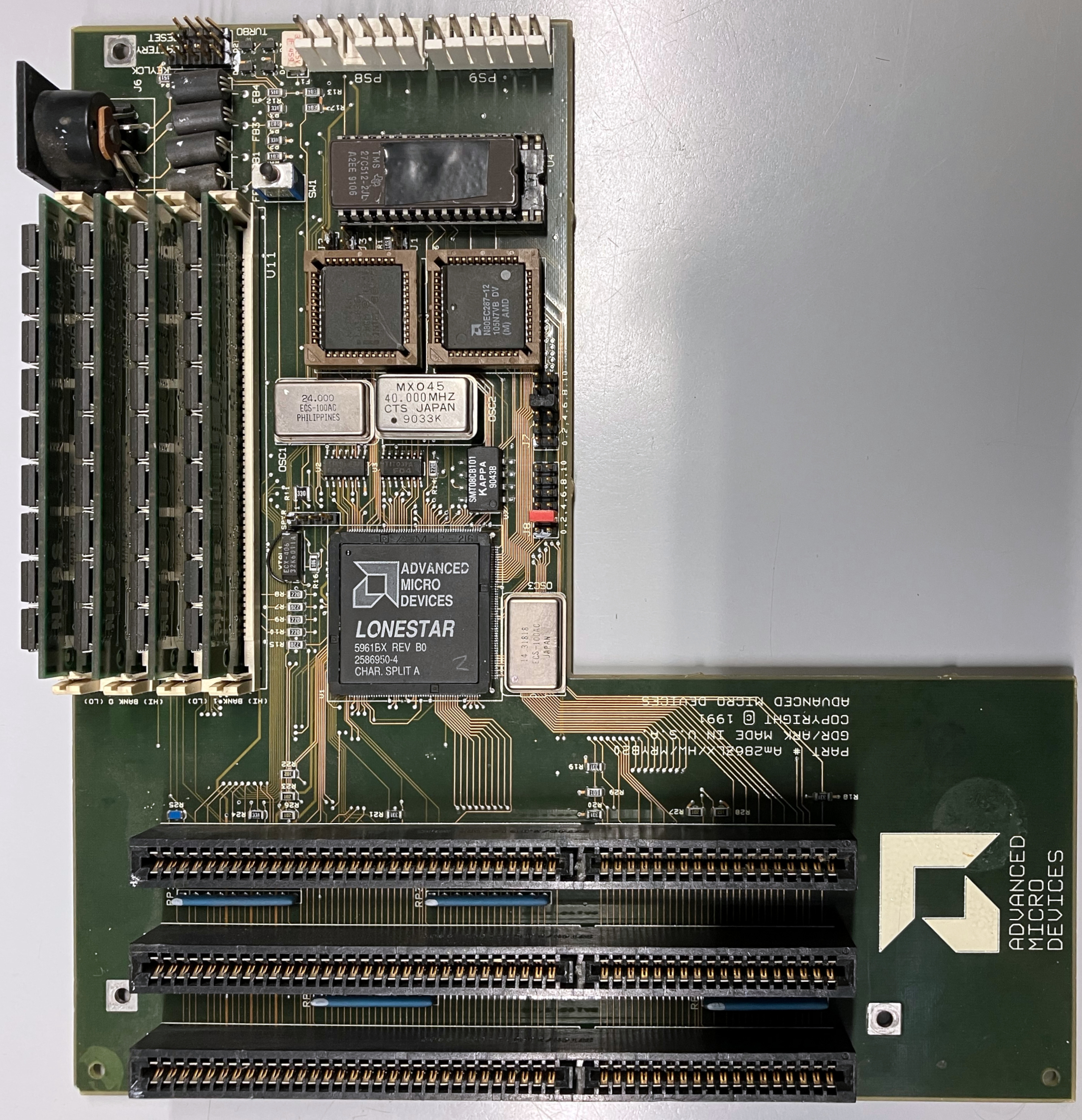

image1 Image 1 of 2 (Giuseppe Ziggiotto)

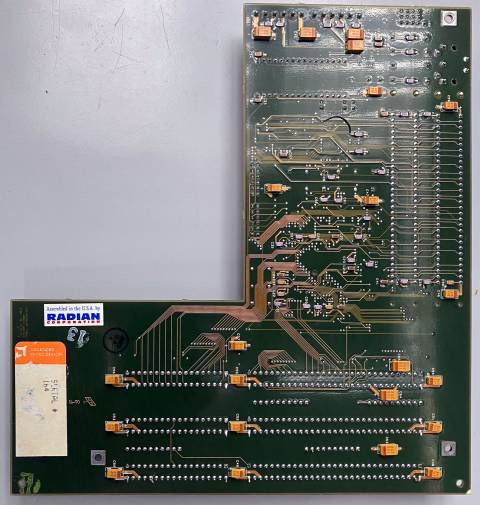

image2 Image 2 of 2 (Giuseppe Ziggiotto)
