ALD VL4200
Logs
chipChipset
cpuSocket
Socket 3 (PGA237)
speedFSB speeds
25 MHz33 MHz40 MHz
moboForm factor
Baby AT (max 220 x 330 mm)
dimDimensions
Empty
chipCache
128KB256KB512KB
ramMax RAM size
192 MB
ramRAM types
30-pin SIMM72-pin FPM72-pin EDO
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
tag Also known as
  • ALD VL-4200
  • Unknown MD53
connI/O ports
1x
AT Keyboard
cardExpansion slots
6x
16-bit ISA
3x
32-bit VLB
Last updated 2024-02-01T17:55:34Z
Board info score is 9/10
chip Chips
-> Chipset part
ALD 93C413
cpufam CPU family support
bios 1 BIOS file available

vendor AMI - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
40-0100-000000-00001111-101094-ALD413-0
Note
Core version
101094
BIOS version
Logs
drv No drivers available
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
1996-03
File
Logs
Family
Release date
1995-07
File
Logs
Family
Release date
1995-10
File
Logs
Family
Release date
1995-12
File
Logs
Family
Release date
1989-04
File
Logs
Family
Release date
1990
File
Logs
Family
Release date
1992-10
File
Logs
Family
Release date
1992-02
File
Logs
image1 Image 1 of 4 (evasive)

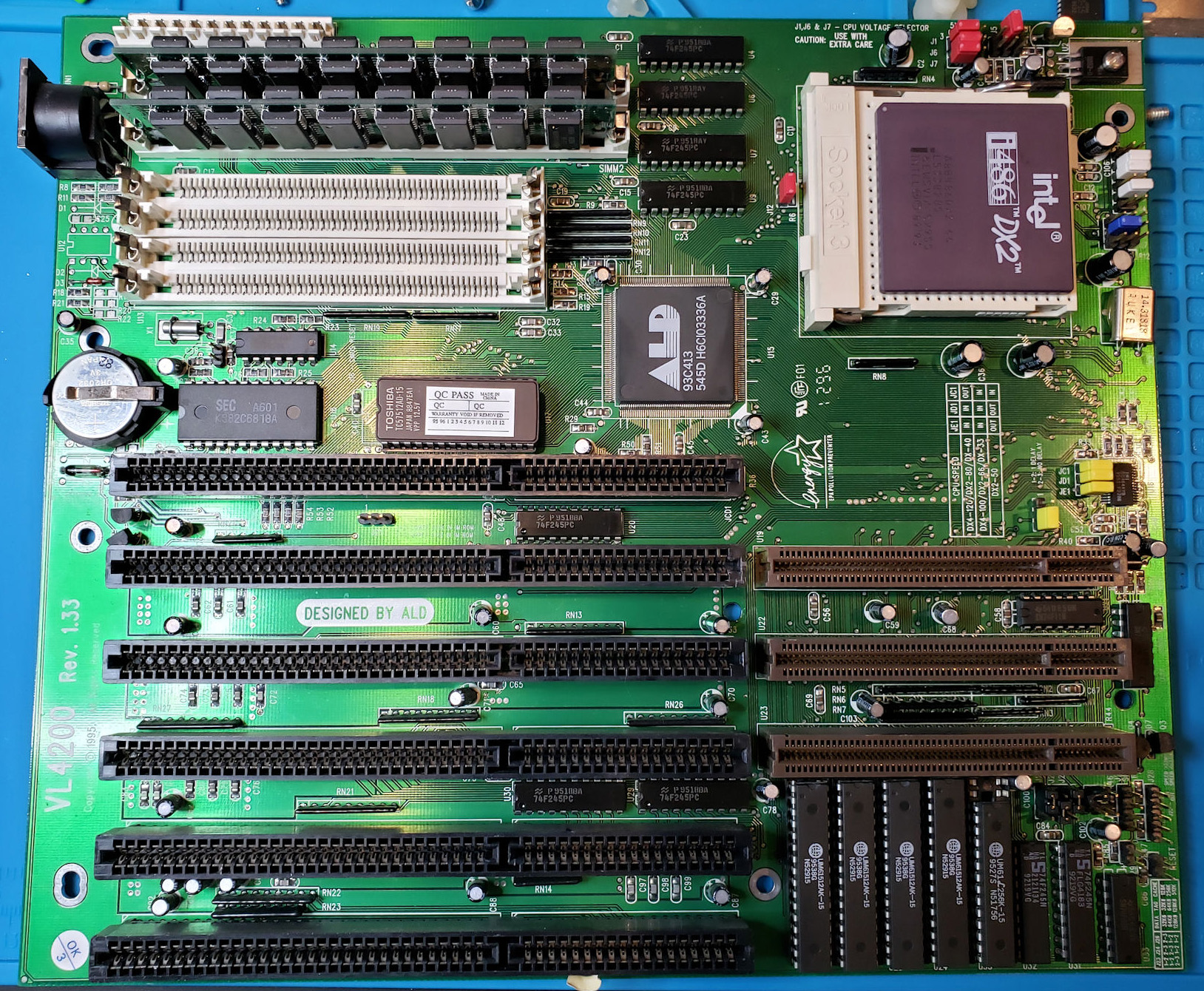

image2 Image 2 of 4

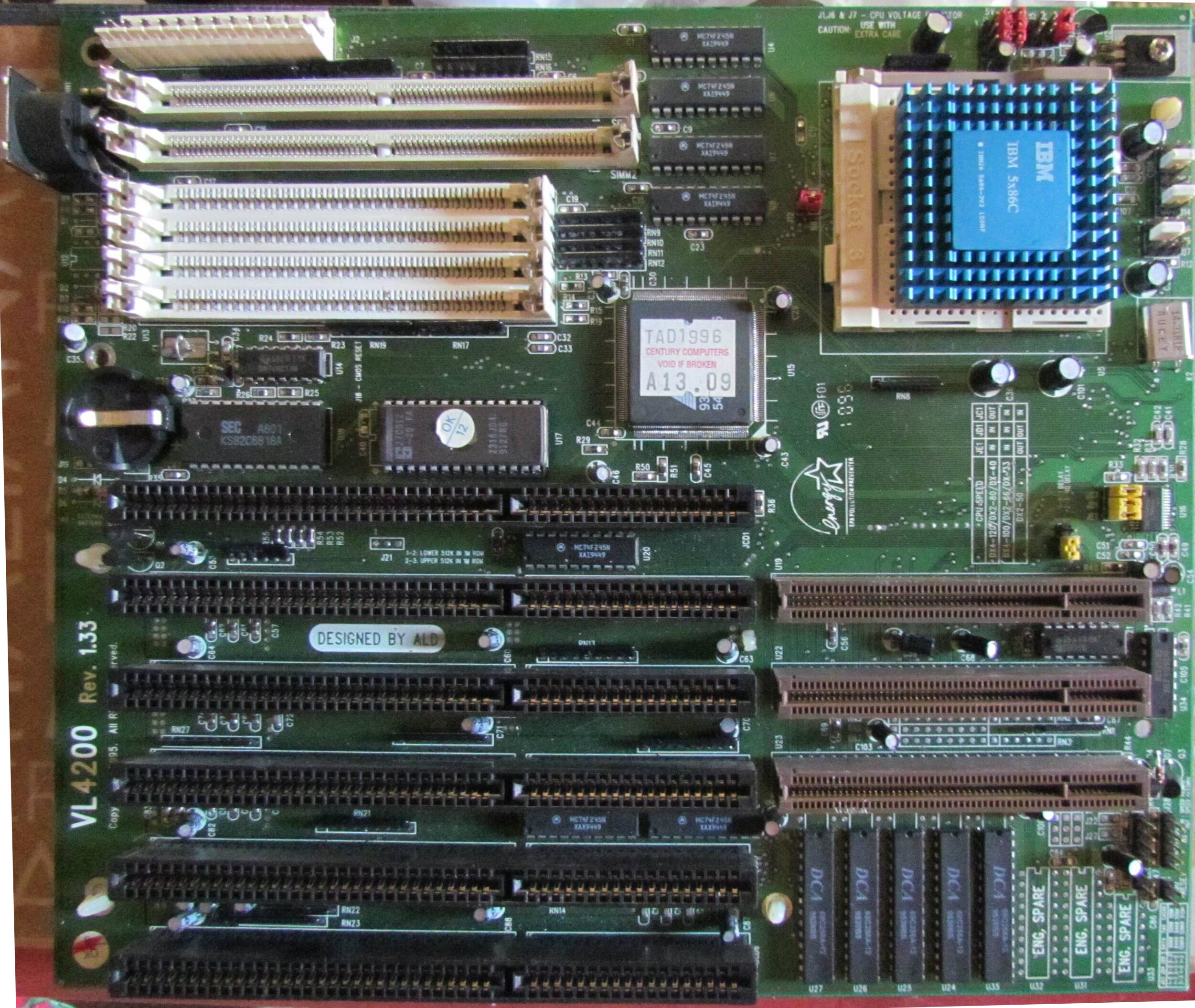

image3 Image 3 of 4 (Am386DX-40)

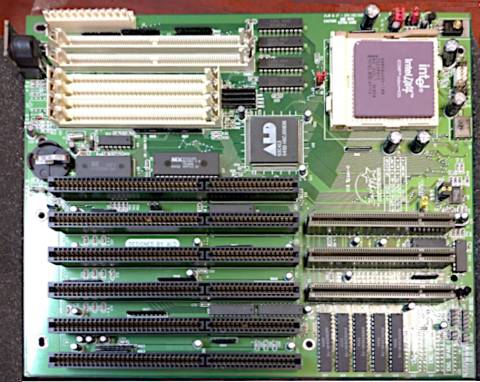

image4 Image 4 of 4 (efflixi)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
