ALD PCI5400
Logs
Chipset
Socket
FSB speeds 16MHz20MHz25MHz33MHz40MHz50MHz
Form factorBaby AT (max 220 x 330 mm)
DimensionsEmpty
Cache
128KB256KB512KB
Max RAM size
Empty
RAM types 72-pin FPM72-pin EDO
PSU connector
I/O ports1x
AT Keyboard
1x
Floppy interface
2x
IDE interface
1x
Parallel
2x
Serial
Expansion slots4x
16-bit ISA
3x
32-bit PCI
Known issues
- Fake cache
The motherboard may include a non-functional or counterfeit SRAM cache, which can adversely affect performance. Signs of fake cache often include soldered DIP-chips and no jumpers to set the chache size. Cache functionality can usually be restored by installing proper chips, jumpers and a BIOS update/mod.
Notes

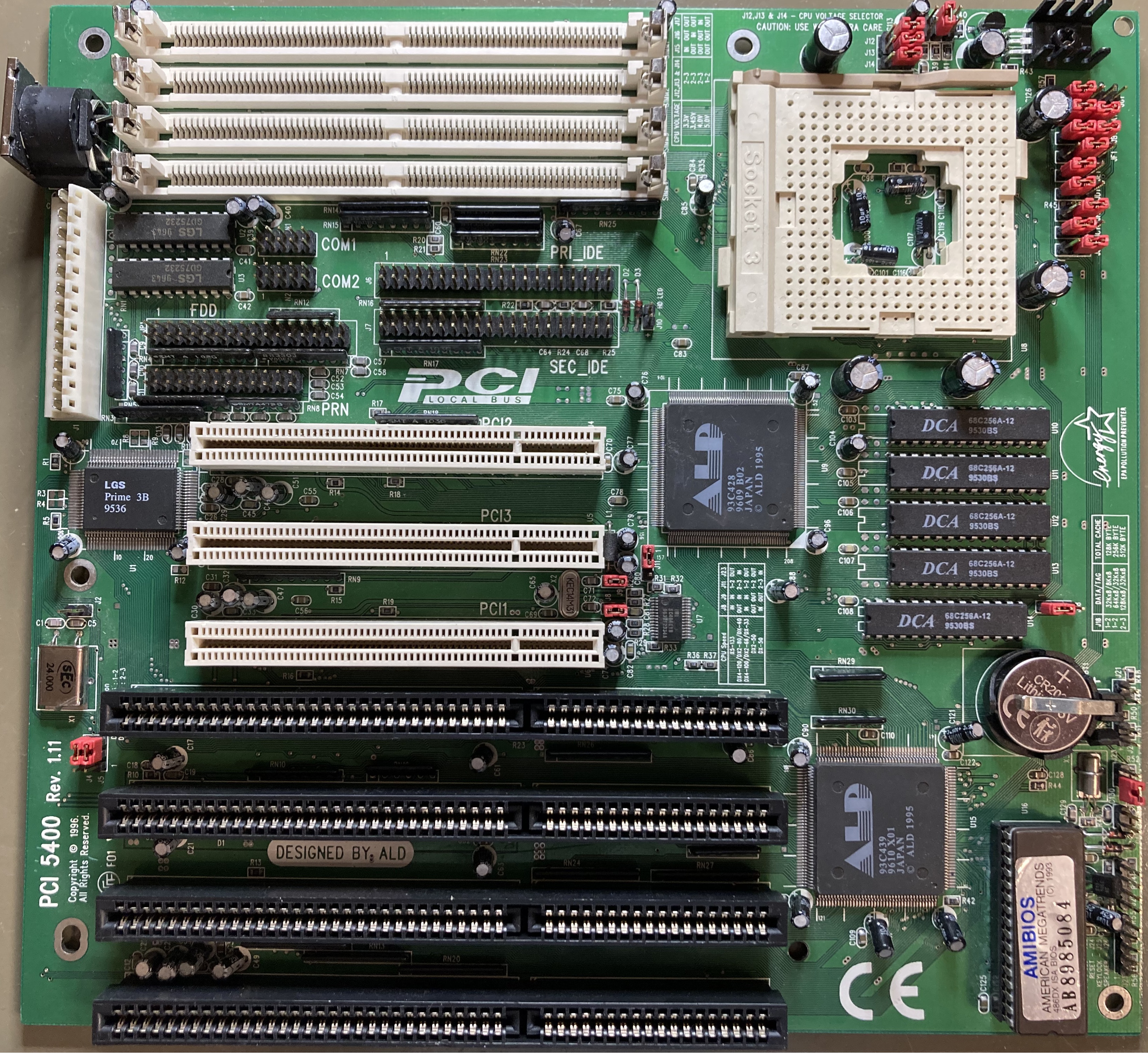

Even though DCA fake chips were mounted, this board was showing "WRITE BACK CACHE ON" in the post screen.
Last updated 2025-03-23T19:36:11Z
Board info score is 8/10
Chips
-> Chipset part
CPU family support
1 BIOS file available
AMI - 1 entry
POST string
Note
Core Ver.
BIOS Ver.
Logs
No drivers available
1 board document available
Release date
File
Logs
Family
Release date
File
Logs

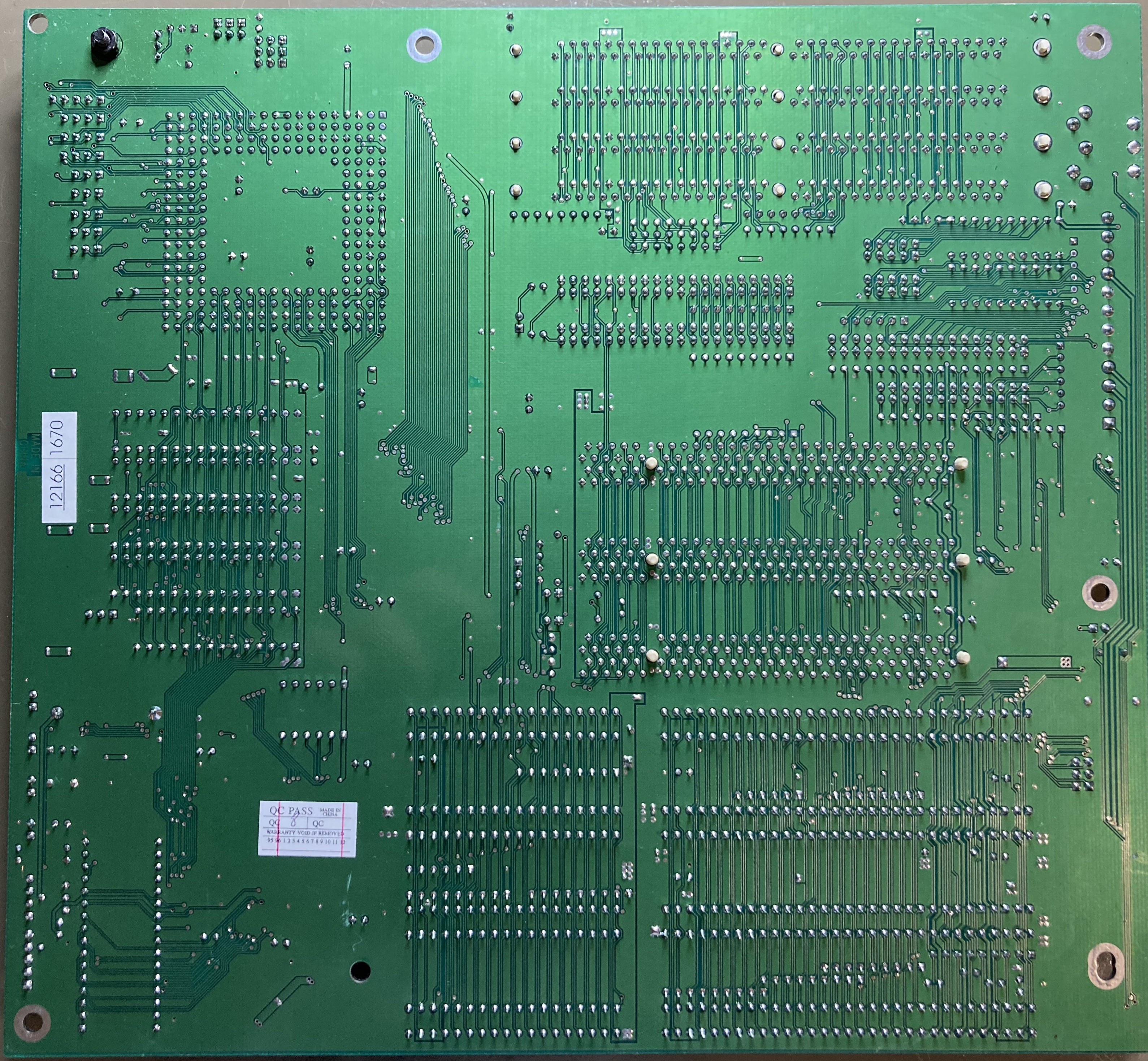

Image 1 of 5 (evasive)

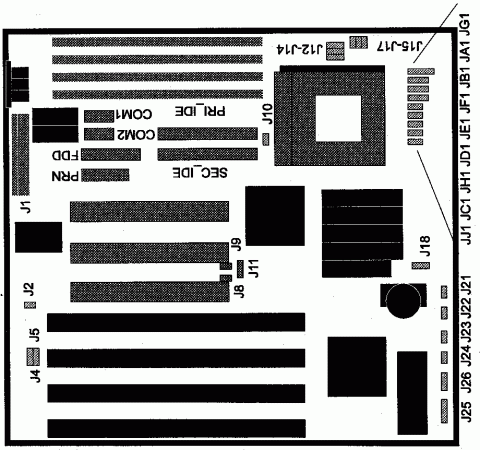

Image 2 of 5 (Jan Kouba)

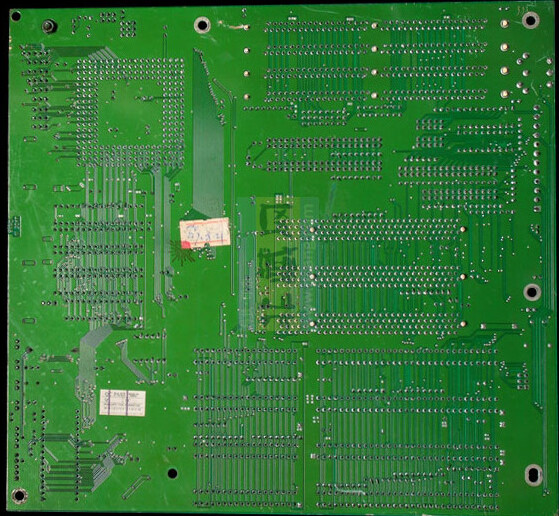

Image 3 of 5 (PCang)

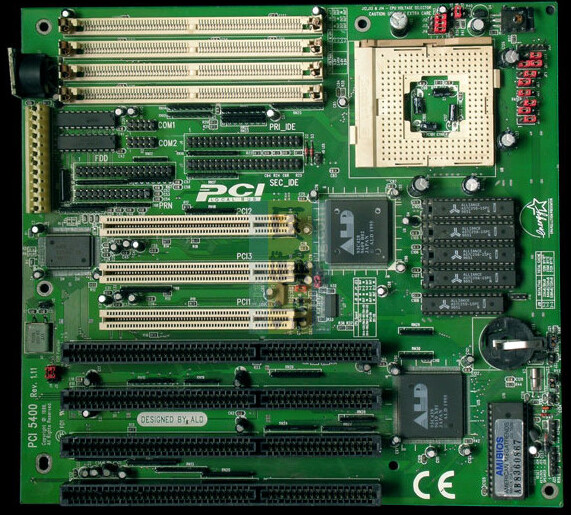

Image 4 of 5 (Jan Kouba)

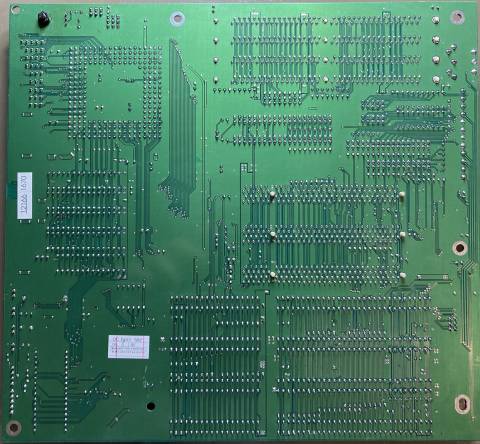

Image 5 of 5 (PCang)
