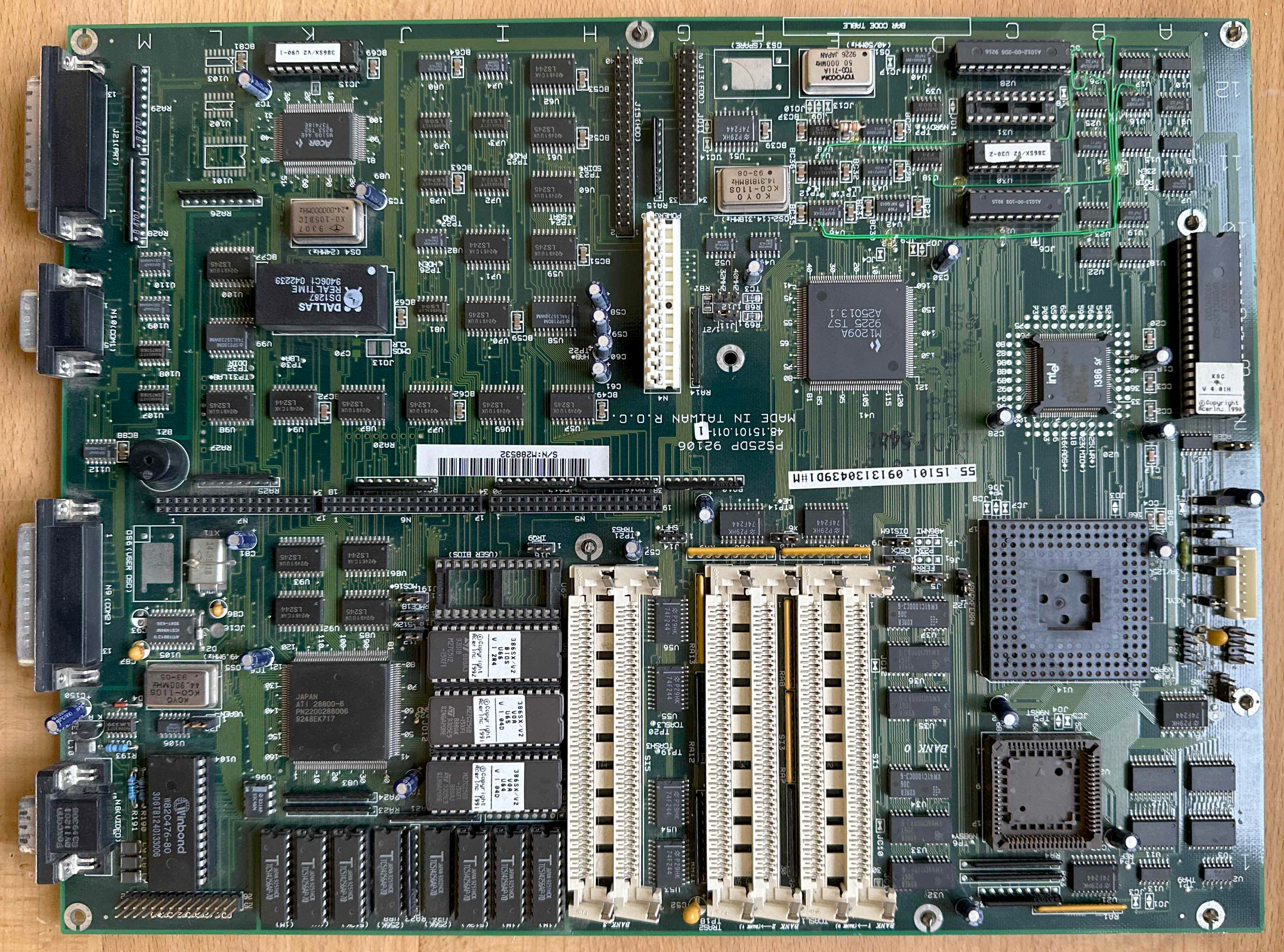

Alcatel PS25DP
Logs
chipChipset
cpuSockets
speedFSB speed
25MHz
moboForm factor
LPX (max 229 x 330 mm)
dimDimensions
Empty
ramMax VRAM size
1MB
chipCache
None/Integrated in the CPU
ramMax RAM size
8MB
ramRAM type
30-pin SIMM
pwrPSU connector
tag Also known as
connI/O ports
1x
Floppy interface
1x
IDE interface
1x
Parallel
2x
Serial
1x
VGA
cardExpansion slots
4x
16-bit ISA
wrench Known issues
  • DALLAS RTC coin cell empty

The motherboard's Real-Time Clock (RTC) chip contains a coin cell that may have drained, causing the loss of CMOS settings. This can result in an inability to save settings, causing system instability or failure to boot. To fix this, the RTC chip can be replaced with an equivalent or repaired by cutting into it and soldering on a new external coin cell holder. Replacement guides are available at https://github.com/necroware/nwX287 or https://github.com/necroware/nw12887, depending on the actual chip used.

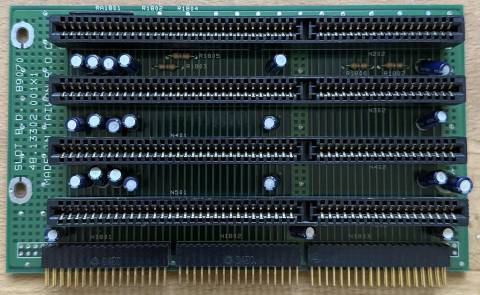

  • Expansion slots are on proprietary riser

The listed slots are on the riser card that came with the motherboard.
If you have this board make sure you have the riser for it.

notes Notes

This board has 2MB of onboard system memory and 256KB of onboard video memory.

Last updated 2025-06-24T20:17:28Z
Board info score is 6.8/10
chip Chips
-> Chipset part -> Human Interface -> Real-Time Clock -> Super I/O -> Video
cpufam CPU family support
bios 0 BIOS files available
drv 5 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1992-04-03
OS support
Windows 3.1x
Arch
x86
Size
705.8KB
Filename
doc No board documents available
