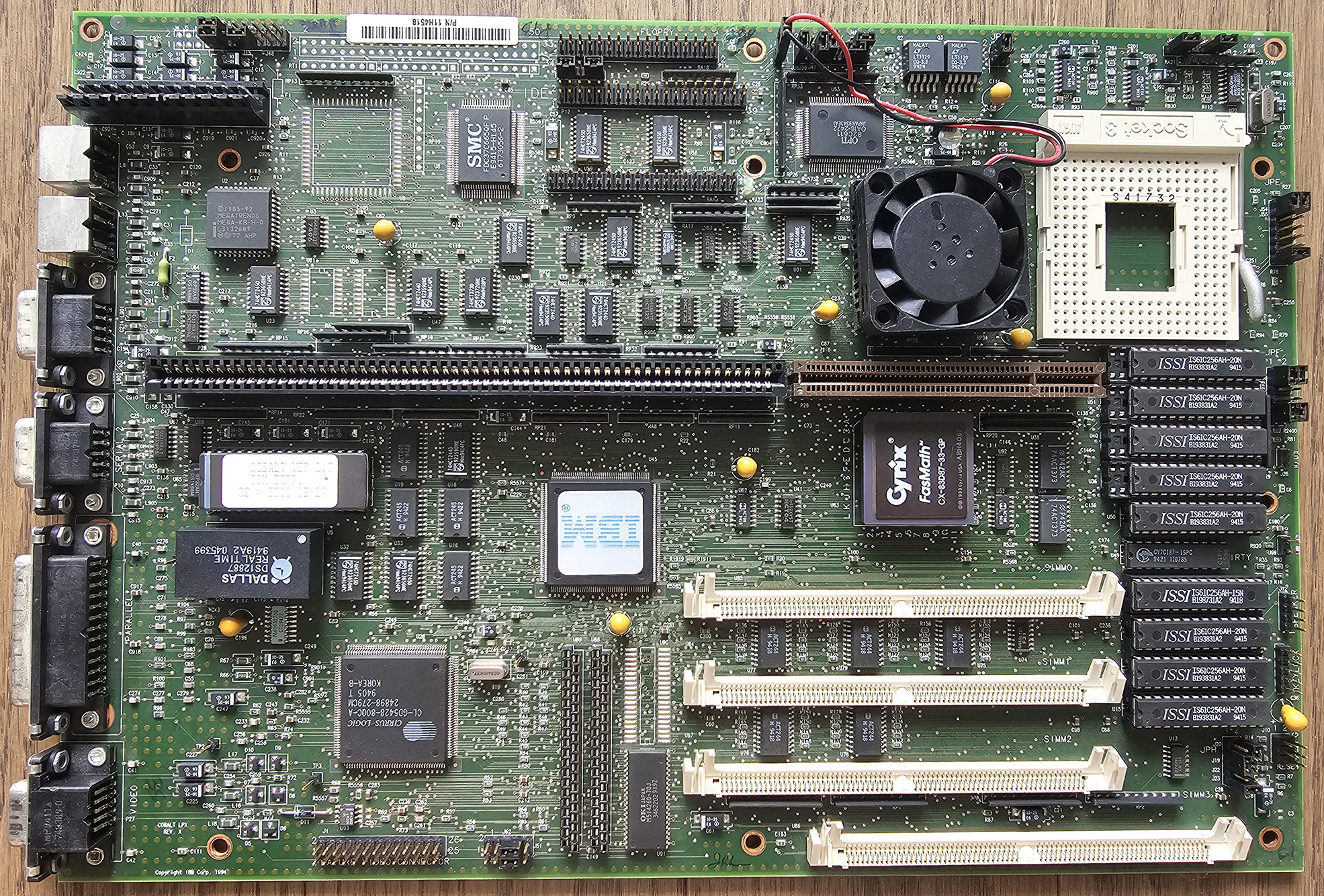

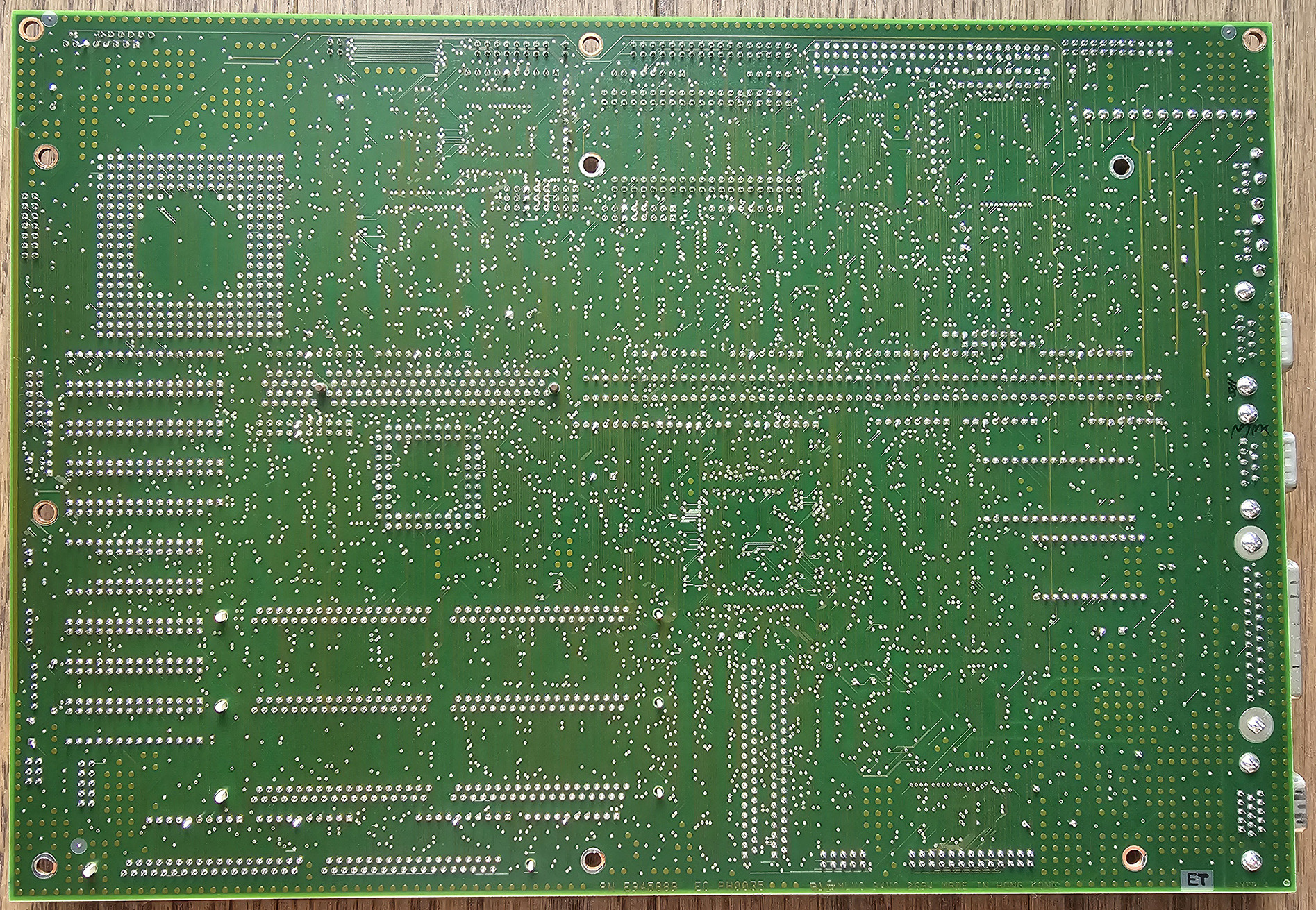

Alaris Cobalt LPX Rev. A
Logs
chipChipset
cpuSockets
speedFSB speeds
25MHz33MHz50MHz
moboForm factor
LPX (max 229 x 330 mm)
dimDimensions
Empty
ramMax VRAM size
2MB
chipCache
256KB
ramMax RAM size
64MB
ramRAM type
72-pin FPM
pwrPSU connector
connI/O ports
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
cardExpansion slots
1x
32-bit VLB
wrench Known issues
  • DALLAS RTC coin cell empty

The motherboard's Real-Time Clock (RTC) chip contains a coin cell that may have drained, causing the loss of CMOS settings. This can result in an inability to save settings, causing system instability or failure to boot. To fix this, the RTC chip can be replaced with an equivalent or repaired by cutting into it and soldering on a new external coin cell holder. Replacement guides are available at https://github.com/necroware/nwX287 or https://github.com/necroware/nw12887, depending on the actual chip used.

  • Expansion slots are on proprietary riser

The listed slots are on the riser card that came with the motherboard.
If you have this board make sure you have the riser for it.

Last updated 2025-06-25T14:59:58Z
Board info score is 9.5/10
chip Chips
-> Chipset part -> IDE ctrl. -> Processor -> Super I/O -> Video
cpufam CPU family support
bios 1 BIOS file available

vendor IBM - 1 entry

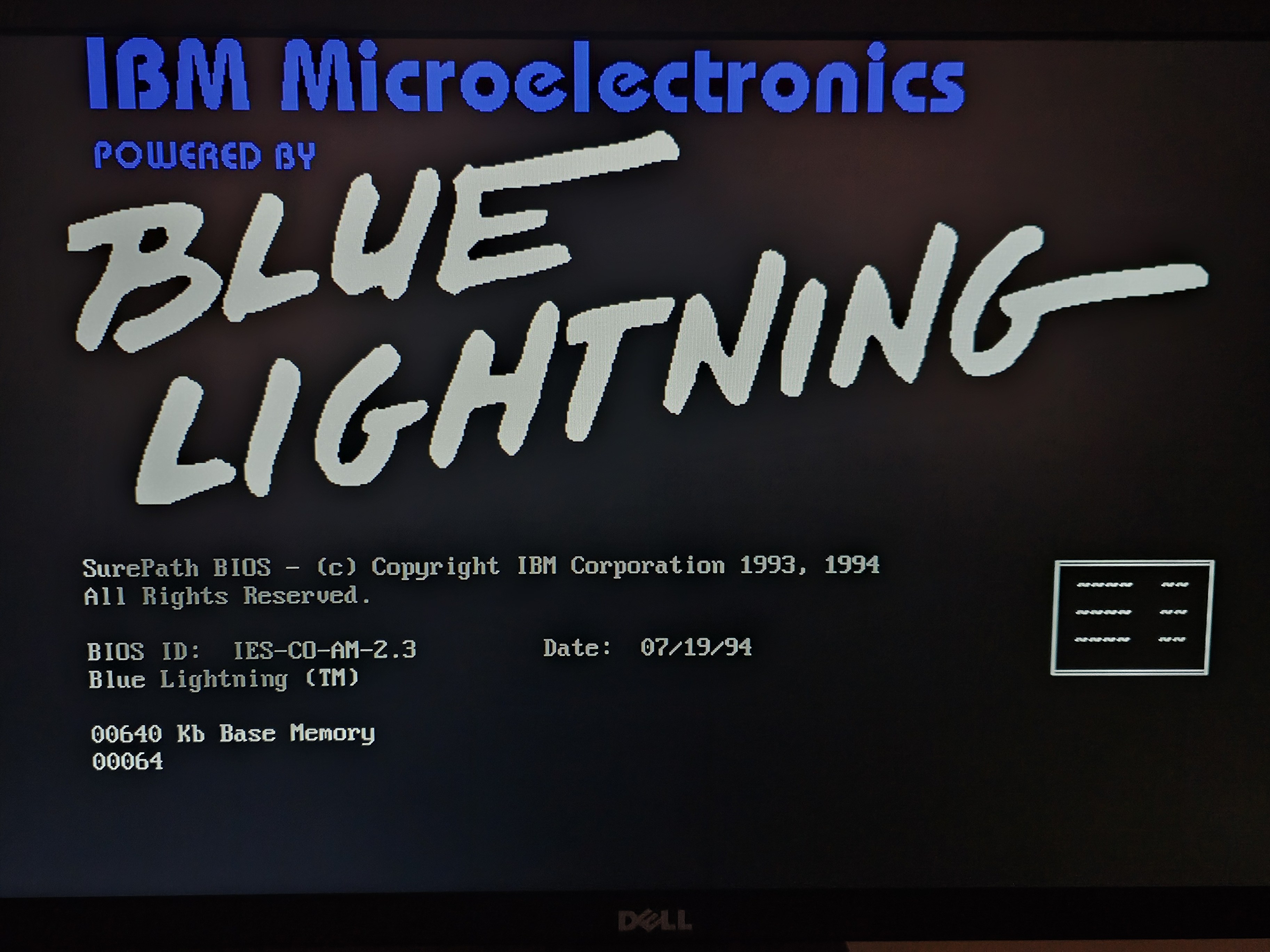

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
IES-CO-AM-2.3
Note
7/19/94
Core version
SurePath
BIOS version
Logs
drv 4 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.43
OS support
MS-DOS Windows 3.1x
Arch
x86
Size
741.9KB
Filename
Name
Version
3.50
OS support
Windows NT 3.1 Windows NT 3.5x
Arch
x86
Size
140KB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
