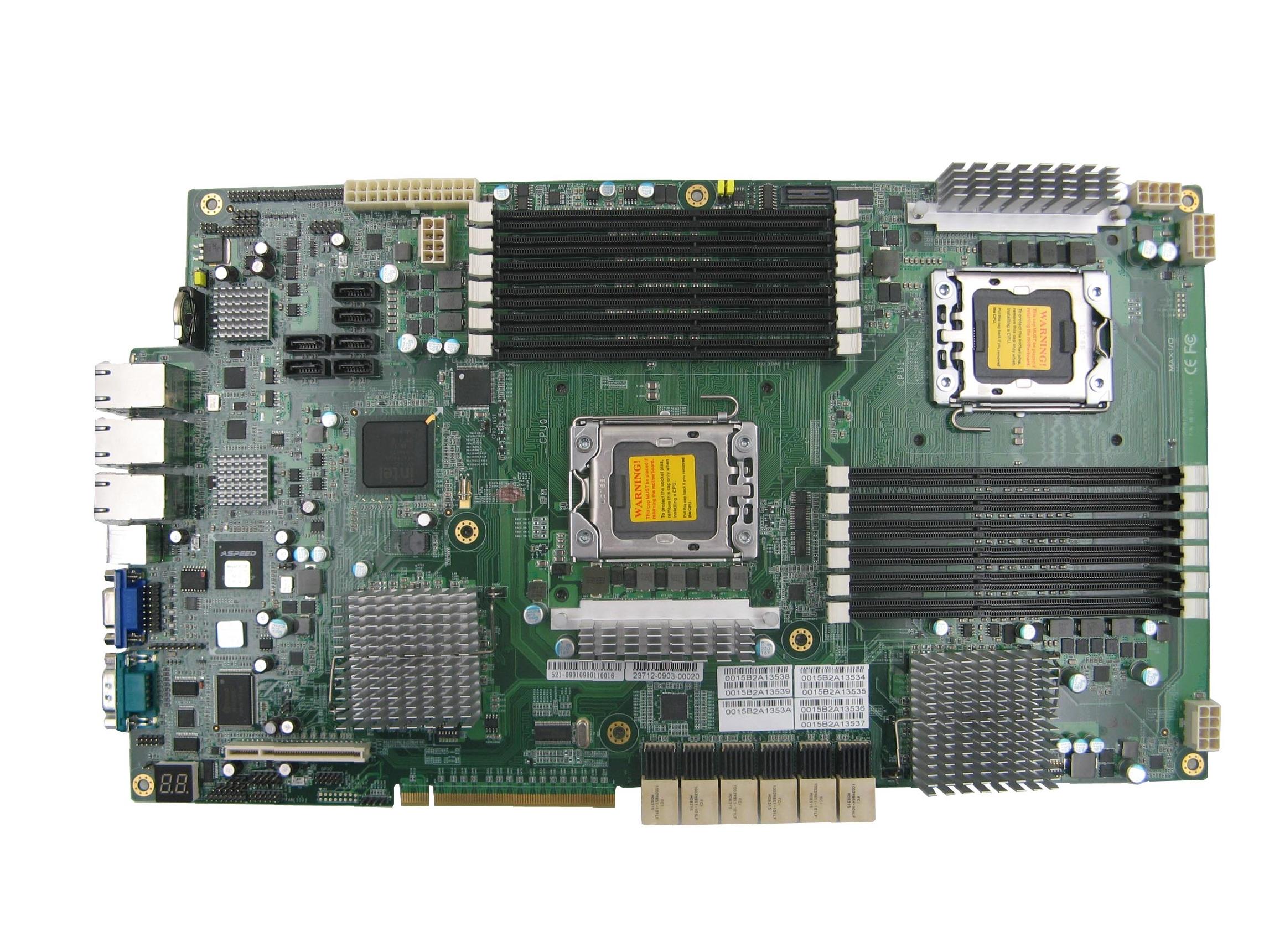

• AIC Gemini_RTX
• AIC DPTS01

• Server Board - requires airflow over VRM for safe operation

Adequate airflow across the VRM is necessary for stable and secure operation of this server motherboard.

• Server Board - requires airflow over chipset for safe operation

Ensure proper airflow over the chipset to maintain the stability and safety of this server motherboard.

• Expansion slots are on proprietary riser

The listed slots are on the riser card that came with the motherboard.
If you have this board make sure you have the riser for it.

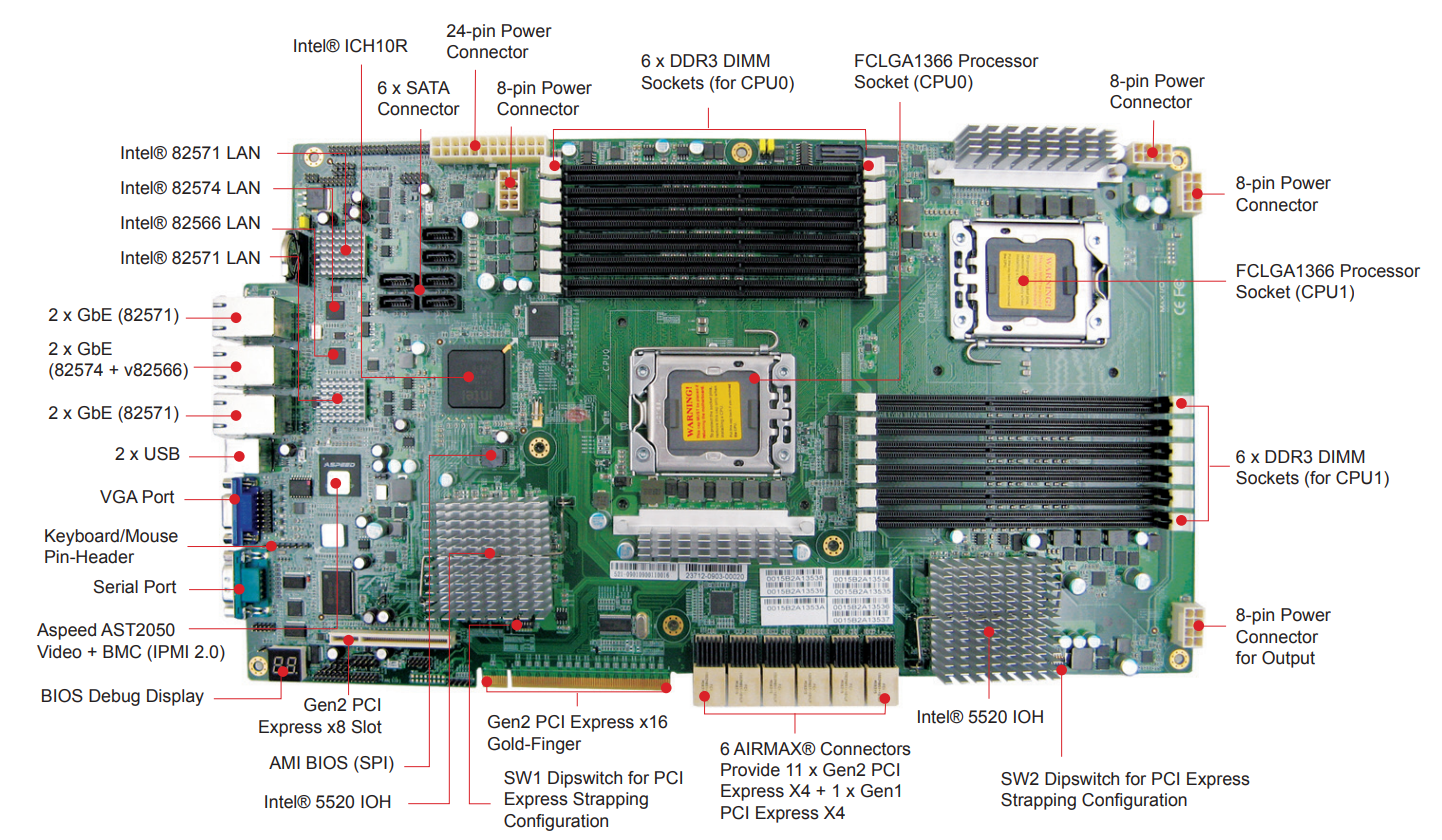

Expansion:

• A) 1 x PCIe Gen2 X8 slot (1 x PCIe X8 (2U))
• B) 1 x PCIe Gen2 X16 Gold-Finger + 6 x AIRMAX Connectors provide 64 total lanes of PCIe available (60 lanes PCIe Gen2 + 4 lanes PCIe Gen1) (can be converted into various combination of slots to support full-length, full-height expansion cards)

Riser card options:

• 1 x PCIe X16 (X8 lane) (ext.) + 4 x PCIe X8 (ext.) + 2 x PCIe X8 (int.) + 1 x PCIe X8 (X4 lane) (int.) (2U)
• 2 x PCIe X16 (ext.) + 3 x PCIe X8 (ext.) + 2 x PCIe X8 (X4 lanes) (Horizontal Riser, 3U)
• 2 x PCIe X16 + 3 x PCIe X8 + 2 x PCIe X8 (X4 lanes) or 2 x PCIe X16 (X8 lanes) + 5 x PCIe X8+ 2 x PCIe X8 (X4 lanes) (Vertical Riser, 3U)
