Aewin AW-A696
Logs
chipChipset
cpuSocket
Socket 370 (PGA370)
speedFSB speeds
66MHz100MHz133MHz
moboForm factor
OEM / Proprietary
dimDimensions
226 mm x 192 mm
ramMax VRAM size
32MB
chipCache
None/Integrated in the CPU
ramMax RAM size
512MB
ramRAM type
SDR UDIMM
pwrPSU connector
OEM/Proprietary
connI/O ports
1x
CF Card Slot
1x
Floppy interface
1x
IDE interface
1x
Parallel
6x
RJ-45 LAN
2x
Serial
2x
USB 1.x
1x
VGA
cardExpansion slots
1x
32-bit mini-PCI
notes Notes

AW-A696I VIA VT8606+82C686B SKT370 with six Intel® LAN 82551QM LAN AW-A696R VIA VT8606+82C686B DKT370 with six Realtek® RTL8139C+ LAN

Last updated 2023-05-29T11:09:26Z
Board info score is 9.4/10
bios 2 BIOS files available

vendor Award - 2 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
02/11/2004-8606-686B-6A6LLBGBC-A0
Note
Realtek LAN
Core version
6.00PG
BIOS version
Logs
POST string
02/11/2004-8606-686B-6A6LLBGBC-A0
Note
Intel LAN
Core version
6.00PG
BIOS version
Logs
drv 18 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
2003
OS support
MS-DOS OS/2 2.x
Arch
x86
Size
554.8KB
Filename
Name
Version
2003
OS support
Windows 2000
Arch
x86
Size
12.3MB
Filename
Name
Version
2003
OS support
Windows 9x
Arch
x86
Size
1.4MB
Filename
Name
Version
2003
OS support
Windows 9x
Arch
x86
Size
8.7MB
Filename
Name
Version
2003
OS support
Windows 9x
Arch
x86
Size
1.5MB
Filename
Name
Version
2003
OS support
Windows 9x
Arch
x86
Size
8.9MB
Filename
Name
Version
2003
OS support
Windows NT 4.0
Arch
x86
Size
7.6MB
Filename
Name
Version
11.1
OS support
MS-DOS Windows 2000 Windows 9x Windows XP/2k3
Arch
x86 , x86-64
Size
36.4MB
Filename
Name
Version
4.43V
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
1.1MB
Filename
Name
Version
N/A
OS support
MS-DOS
Arch
x86
Size
227.7KB
Filename
Name
Version
5.70d
OS support
Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
3.9MB
Filename
Name
Version
V3.00a
OS support
MS-DOS Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
1.9MB
Filename
Name
Version
13.01.03
OS support
Windows 9x
Arch
Size
5.2MB
Filename
Name
Version
10.10.20
OS support
Windows NT 4.0
Arch
Size
3.7MB
Filename
Name
Version
13.00.49
OS support
Windows 9x
Arch
Size
4.8MB
Filename
Name
Version
11.10.09
OS support
Windows NT 4.0
Arch
Size
Empty
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
MS-DOS OS/2 Warp 4.x Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
4.3MB
Filename
Version
OS support
MS-DOS OS/2 Warp 4.x Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
4.3MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2000-02
File
Logs
Family
Release date
2000-02
File
Logs
Family
Release date
2002-06
File
Logs
Family
Release date
2001-06
File
Logs
Socket
Release date
File
Logs
Socket
Release date
1997-05
File
Logs
Socket
Release date
File
Logs
Socket
Release date
1999-04
File
Logs
Socket
Release date
1999-12
File
Logs
Socket
Release date
2000-07
File
Logs
image1 Image 1 of 2 (evasive)

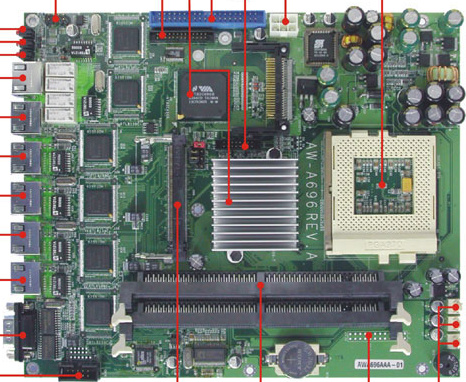

image2 Image 2 of 2
