Advantech SIMB-A21 (Rev. A1)
Logs
chipChipset
cpuSocket
Socket H2 (LGA1155)
speedFSB speed
Empty
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 203mm
chipCache
None/Integrated in the CPU
ramMax RAM size
8GB
ramRAM type
DDR3 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
tag Also known as
connI/O ports
1x
3.5mm Audio Combo
1x
DVI
1x
GPIO
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
RJ-45 LAN
4x
SATA II
6x
Serial
10x
USB 2.0
1x
VGA
cardExpansion slots
4x
32-bit PCI
1x
PCIe x1
1x
PCIe x16
wrench No board specific known issues
  • Recalled Product (Certain revisions only)

One or more revisions of this hardware component were recalled from the market because of certain reasons like defects (including major breaking ones), overheating, fire, or safety hazards. Users of said hardware component should take precaution while using it or even avoid using it altogether.

Always look the hardware compoment's page for more info about it.

Last updated 2025-12-07T12:13:58Z
Board info score is 6.8/10
bios 0 BIOS files available
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2011-03-31
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2005-04-14
File
Logs
Family
Release date
File
Logs
Family
Release date
2011-05
File
Logs
Family
Release date
2011-05
File
Logs
Family
Release date
2011-05
File
Logs
Family
Release date
2011-05
File
Logs
Family
Release date
2013-06
File
Logs
Family
Release date
2013-06
File
Logs
Family
Release date
2013-06
File
Logs
Family
Release date
2011-09
File
Logs
Family
Release date
2011-09
File
Logs
Family
Release date
2011-09
File
Logs
Family
Release date
2012-01
File
Logs
Family
Release date
2012-01
File
Logs
Family
Release date
2012-01
File
Logs
Family
Release date
2014-10
File
Logs
Family
Release date
2014-10
File
Logs
Family
Release date
2014-10
File
Logs
Family
Release date
2016-04
File
Logs
Family
Release date
2016-04
File
Logs
Family
Release date
2016-04
File
Logs
Family
Release date
File
Logs
Socket
Release date
File
Logs
Socket
Release date
2013-01
File
Logs

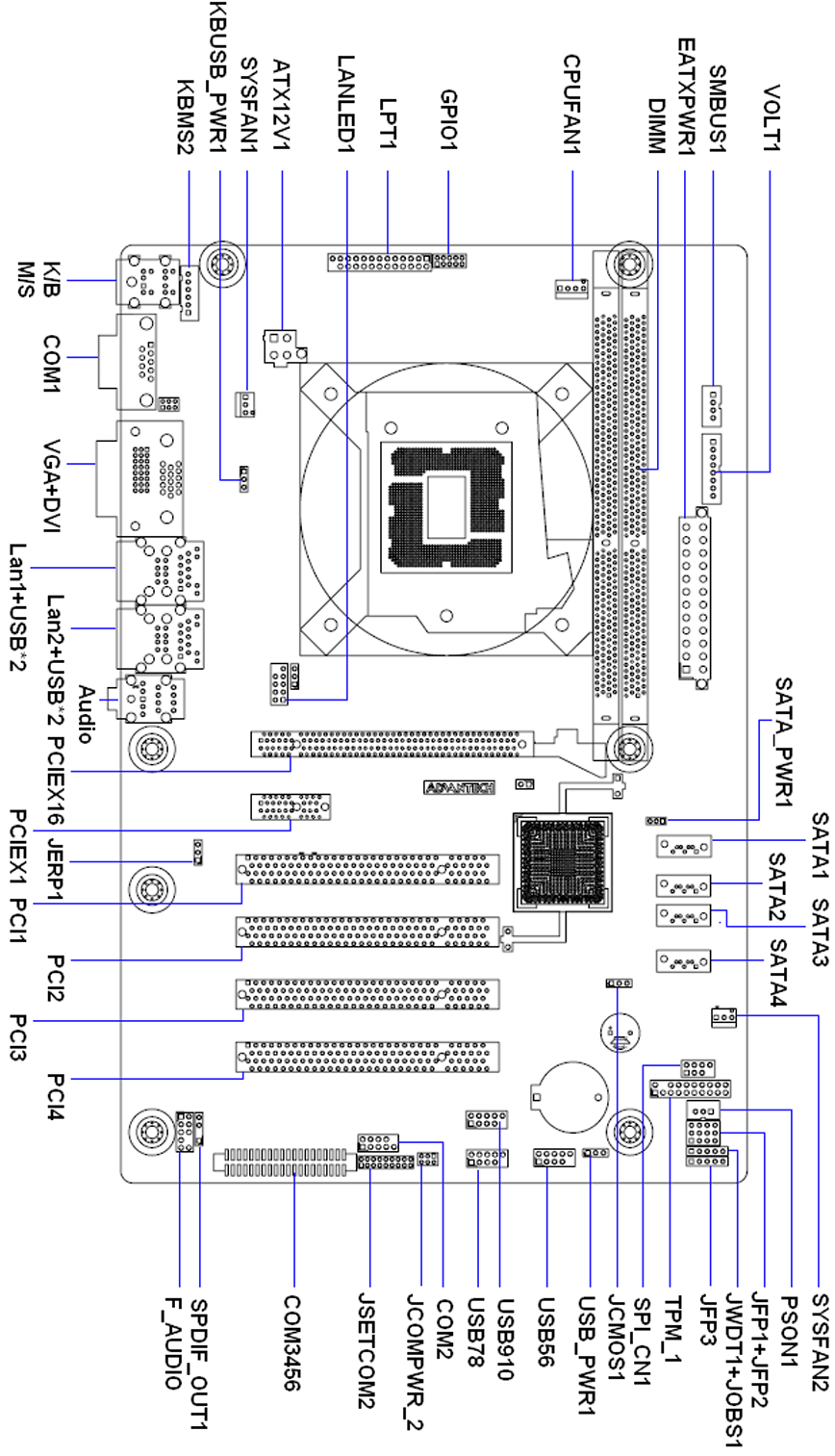

image1 Image 1 of 1 (Advantech)
