Advantech POS-460
Chipset
Socket
FSB speeds 25MHz33MHz40MHz50MHz
Form factorLPX (max 229 x 330 mm)
DimensionsEmpty
Max VRAM size1MB
Cache
128KB256KB512KB
Max RAM size
64MB
RAM types 72-pin FPM72-pin EDO
PSU connector
I/O ports1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
Parallel
1x
RJ-45 LAN
2x
Serial
Expansion slots1x
16-bit ISA
Known issues
- Expansion slots are on proprietary riser
The listed slots are on the riser card that came with the motherboard.
If you have this board make sure you have the riser for it.
Last updated 2025-06-24T17:51:24Z
Board info score is 9.3/10
Chips
CPU family support
3 BIOS files available
Award - 4 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
08/19/99-
Note
unknown
Core version
4.51PG
BIOS version
2.30
Logs
POST string
02/01/99-ALI-1487/89,UMC-2A4KDAK9C-00
Note
rev B1
Core version
v4.51PG
BIOS version
Logs
POST string
03/12/98-ALI-1487/89,UMC-2A4KDAK9C-00
Note
CRT only rev A2
Core version
v4.51PG
BIOS version
Logs
POST string
03/12/98-ALI-1487/89,UMC-2A4KDAK9C-00
Note
TFT 65550 rev A2
Core version
v4.51PG
BIOS version
Logs
5 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.06a
OS support
MS-DOS
OS/2 Warp 3.x
SCO Unix - OpenServer
Windows 3.1x
Windows NT 3.5x
Arch
x86
Size
104.9KB
Filename
Name
Version
N/A
OS support
MS-DOS
Windows 3.0
Windows 3.1x
Arch
x86
Size
1MB
Filename
Name
Version
N/A
OS support
Windows 3.1x
Arch
x86
Size
1MB
Filename
Name
Version
2.43
OS support
Windows 9x
Arch
x86
Size
114.4KB
Filename
Name
Version
1.10
OS support
Windows NT 4.0
Arch
x86
Size
52.9KB
Filename
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs

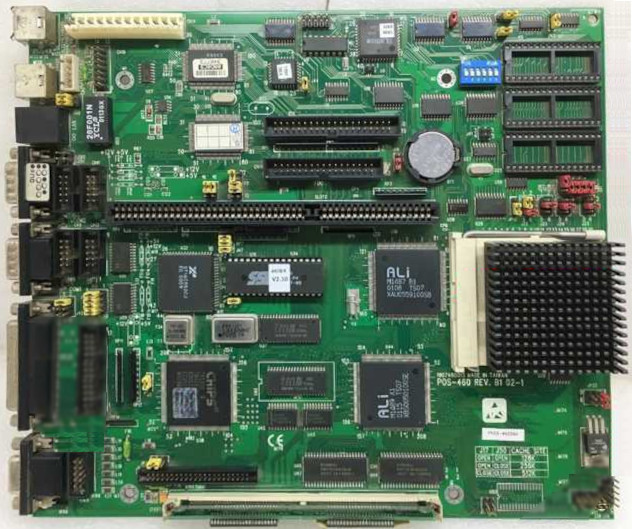

Image 1 of 2 (BurnedPinguin)
Image 2 of 2
Disclaimer
The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
