Advantech PCE-3029
Logs
chipChipset
cpuSocket
Socket H4 (LGA1151)
speedFSB speed
Empty
moboForm factor
Single Board Computer
dimDimensions
165mm x 126mm
chipCache
None/Integrated in the CPU
ramMax RAM size
32GB
ramRAM type
260-pin DDR4 SO-DIMM
pwrPSU connector
OEM/Proprietary
tag Also known as
connI/O ports
1x
DVI
1x
DisplayPort
1x
GPIO
1x
PS/2 KB+MS Combo
2x
RJ-45 LAN
4x
SATA III
2x
Serial
7x
USB 2.0
3x
USB 3.0
1x
VGA
cardExpansion slots
1x
Mini-PCIe
1x
PICMG 1.3 (SHB Express) Half-size
notes Notes

Optional mini-PCIe

Optional 3x SATA III

Last updated 2025-05-28T13:57:33Z
Board info score is 7.7/10
bios 0 BIOS files available
drv No drivers available
doc 3 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2015-05-01
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2021-01
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2013-12
File
Logs
Chip
Release date
2022-01
File
Logs

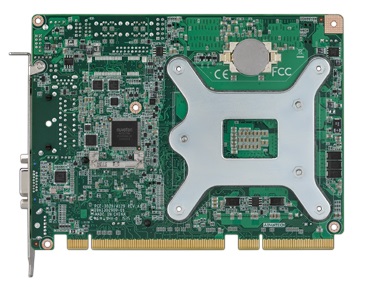

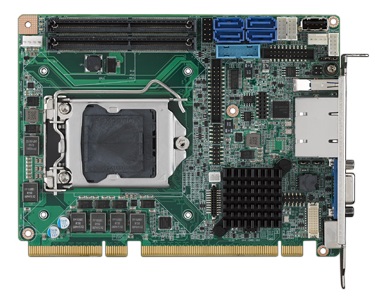

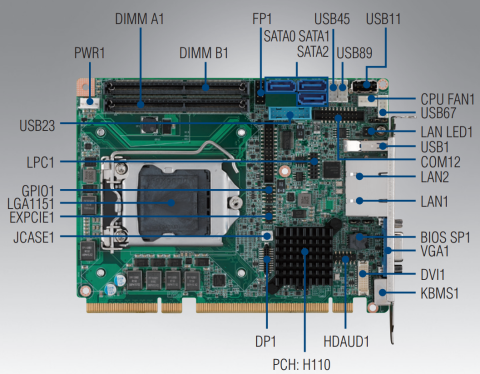

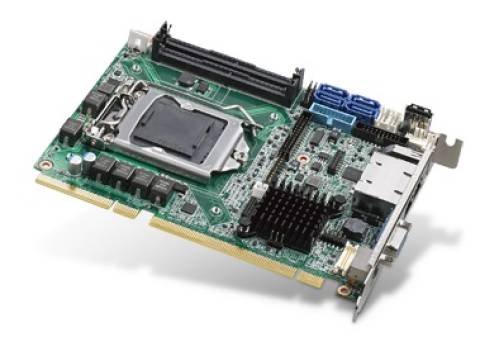

image1 Image 1 of 5 (Advantech)
image2 Image 2 of 5 (Advantech)
image3 Image 3 of 5 (Advantech)
image4 Image 4 of 5 (Advantech)
image5 Image 5 of 5 (Advantech)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
