Advantech PCA-6753
Logs
chipChipset
cpuSocket
Socket 7 (PGA321)
speedFSB speed
33MHz
moboForm factor
Single Board Computer
dimDimensions
Empty
ramMax VRAM size
2.5MB
chipCache
None/Integrated in the CPU
ramMax RAM size
128MB
ramRAM type
SDR UDIMM
pwrPSU connector
ATX P4 connector 12v (4-pin P4)
connI/O ports
1x
Disk-on-Chip Socket
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
Serial
2x
USB 1.x
1x
VGA
cardExpansion slots
1x
16-bit ISA
1x
PC/104
Last updated 2025-10-08T15:24:40Z
Board info score is 8.7/10
bios 1 BIOS file available

vendor Award - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
05/07/2003-GXm-Cx5530-2A434AKCC-00
Note
Core version
4.51PG
BIOS version
Logs
drv 3 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
4.10.01.1305
OS support
Windows 3.1x Windows NT 4.0
Arch
Size
363.2KB
Filename
Name
Version
5.719.0325.2009
OS support
Linux MS-DOS Mac OS X NetWare Server 3 NetWare Server 4 Windows 2000 Windows 7 Windows 9x Windows Vista Windows XP/2k3
Arch
x86
Size
39.5MB
Filename
Name
Version
V5.00
OS support
MS-DOS Mac OS X NetWare Server 3 NetWare Server 4 Netware Client32 SCO Unix - OpenServer Windows 2000 Windows 3.1x Windows 9x Windows NT 3.5x Windows NT 4.0
Arch
x86 , PPC
Size
3.3MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

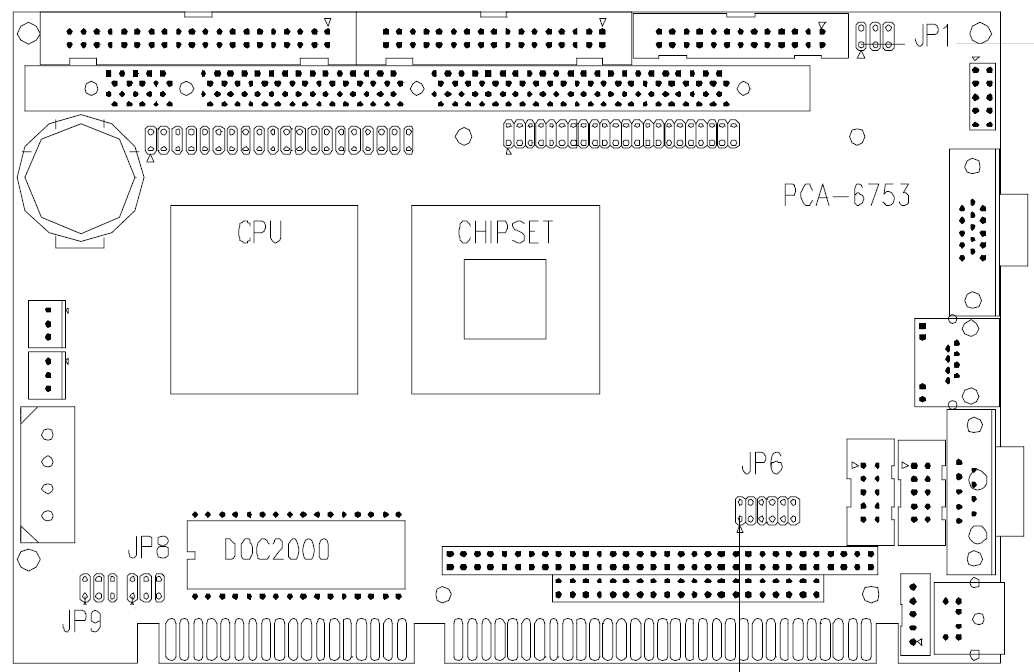

image1 Image 1 of 2 (evasive)

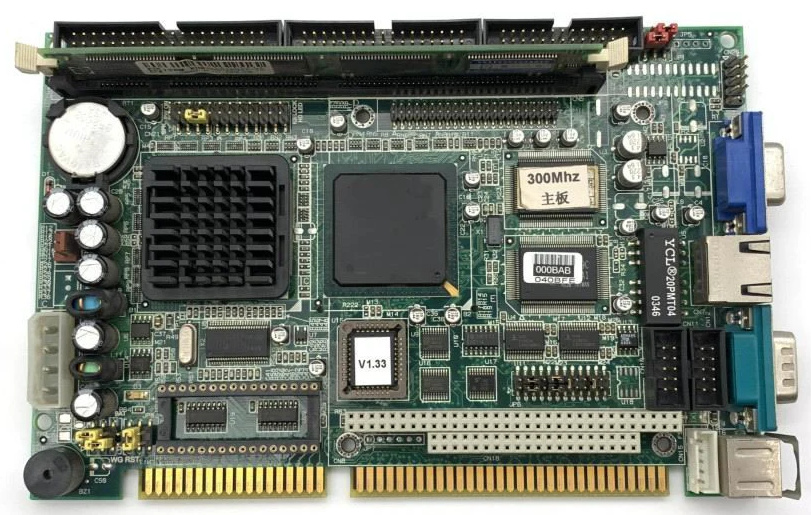

image2 Image 2 of 2
