Advantech PCA-6002 (Rev. A1)
Logs
chipChipset
cpuSocket
BGA2 (BGA495)
speedFSB speeds
66MHz100MHz
moboForm factor
Single Board Computer
dimDimensions
338 mm x 122 mm
ramMax VRAM size
11MB
chipCache
None/Integrated in the CPU
ramMax RAM size
512MB
ramRAM type
SDR UDIMM
pwrPSU connector
Empty
tag Also known as
connI/O ports
1x
CF Card Slot
1x
Floppy interface
2x
IDE interface
1x
PS/2 mouse
1x
Parallel
2x
RJ-45 LAN
2x
Serial
4x
USB 1.x
1x
VGA
cardExpansion slots
1x
PICMG 1.0 (PCI/ISA)
notes Notes

PCA-6002VE-00A1 (Celeron 400Mhz, 2x usb port, single LAN)

PCA-6002E2-00A1 (Celeron 400Mhz, 4x usb port, dual LAN)

PCA-6002VE-02A1 (Pentium III 500Mhz, 2x usb port, single LAN)

PCA-6002E2-02A1 (Pentium II 500Mhz, 4x usb port, dual LAN)

Last updated 2025-11-30T07:38:08Z
Board info score is 8.5/10
bios 0 BIOS files available

vendor Award - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
05/30/2003-i815-W83627HF-6A69RAK9C-00
Note
Core version
6.00PG
BIOS version
V1.20
Logs
drv 19 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
3.5.1.6
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
18.5MB
Filename
Name
Version
4.1
OS support
Windows 2000 Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
4.2MB
Filename
Name
Version
5.31.0.0
OS support
MS-DOS OS/2 2.x Windows 2000 Windows NT 4.0
Arch
Size
60MB
Filename
Name
Version
6.2
OS support
Linux MS-DOS NetWare Server 3 NetWare Server 4 Netware Client32 OS/2 2.x Windows 2000 Windows 9x Windows NT 4.0
Arch
x86
Size
64.3MB
Filename
Name
Version
2003
OS support
MS-DOS OS/2 2.x
Arch
x86
Size
554.8KB
Filename
Name
Version
2003
OS support
Windows 2000
Arch
x86
Size
12.3MB
Filename
Name
Version
2003
OS support
Windows 9x
Arch
x86
Size
1.4MB
Filename
Name
Version
2003
OS support
Windows 9x
Arch
x86
Size
8.7MB
Filename
Name
Version
2003
OS support
Windows 9x
Arch
x86
Size
1.5MB
Filename
Name
Version
2003
OS support
Windows 9x
Arch
x86
Size
8.9MB
Filename
Name
Version
2003
OS support
Windows NT 4.0
Arch
x86
Size
7.6MB
Filename
Name
Version
11.1
OS support
MS-DOS Windows 2000 Windows 9x Windows XP/2k3
Arch
x86 , x86-64
Size
36.4MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
2.2MB
Filename
Version
OS support
Windows 2000 Windows 9x
Arch
x86
Size
1.5MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
Empty
Filename
Version
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
Size
Empty
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
Size
Empty
Filename
Version
OS support
Windows 9x
Arch
Size
Empty
Filename
Version
OS support
Windows NT 4.0
Arch
Size
Empty
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2005-08
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2000-06
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2000-02
File
Logs
Family
Release date
2001-06
File
Logs

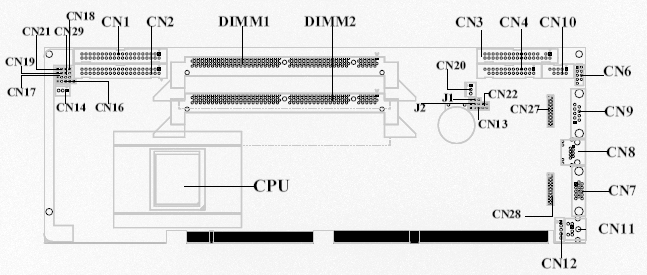

image1 Image 1 of 3 (Advantech)

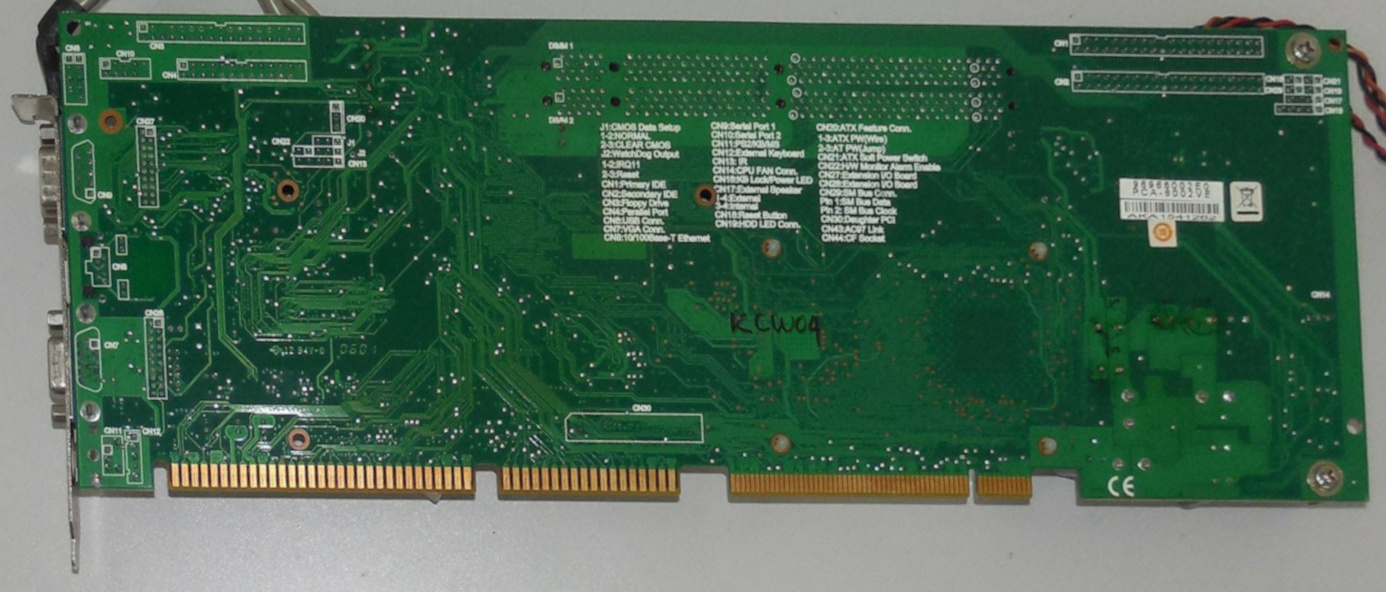

image2 Image 2 of 3

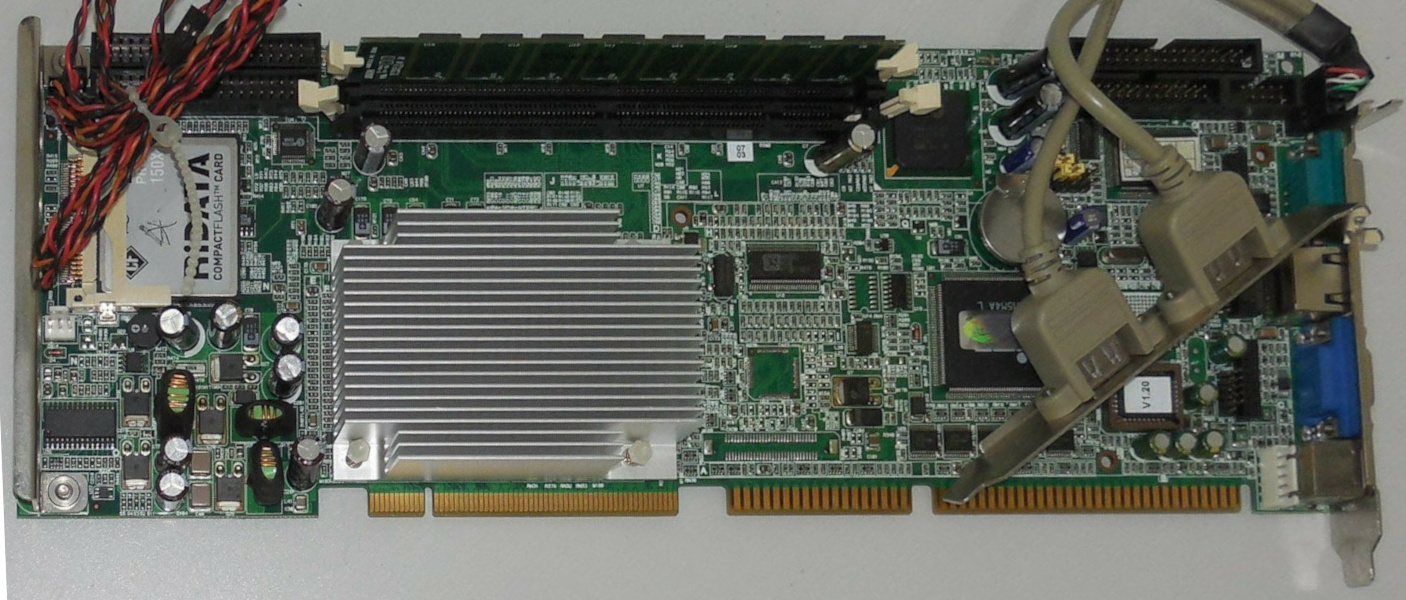

image3 Image 3 of 3
