Advantech MIO-2263 (Rev. A1)
Logs
chipChipset
cpuSocket
FCBGA1170 (BGA1170)
speedFSB speed
Empty
moboForm factor
Pico ITX Biscuit SBC 2.5" (max 100 x 72 mm)
dimDimensions
100mm x 72mm
chipCache
None/Integrated in the CPU
ramMax RAM size
8GB
ramRAM type
204-pin DDR3 SO-DIMM
pwrPSU connector
DC Jack (12V)
tag Also known as
connI/O ports
1x
GPIO
1x
HDMI
1x
LVDS
1x
RJ-45 LAN
1x
SATA II
2x
Serial
3x
USB 2.0
1x
USB 3.0
1x
VGA
1x
mSATA
cardExpansion slots
1x
Mini-PCIe
notes Notes

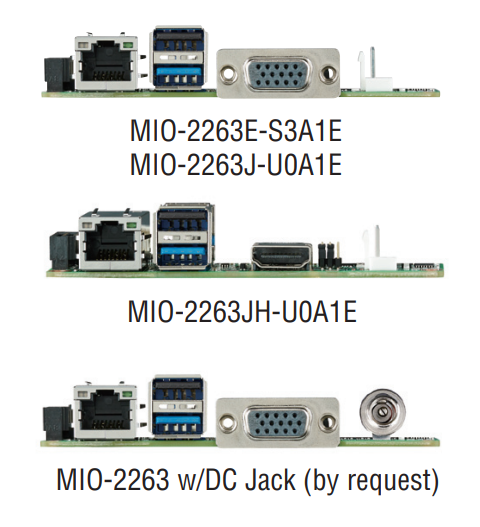

MIO-2263E-S3A1E - E3825 CPU, VGA, no HDMI, Operating Temp: 0 ~ 60° C

MIO-2263EZ-2GS3A1E - E3825 CPU, VGA, no HDMI, Operating Temp: -20 ~ 80° C

MIO-2263EZ22GS3A1E - E3825 CPU, VGA, no HDMI, Operating Temp: -40 ~ 85° C

MIO-2263J-U0A1E - J1900 CPU, VGA no HDMI,

MIO-2263JH-U0A1E - J1900 CPU, no VGA, HDMI

Last updated 2025-11-30T07:35:48Z
Board info score is 7.5/10
bios 0 BIOS files available
drv No drivers available
doc 4 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2021-01
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2013-12
File
Logs
Chip
Release date
2022-01
File
Logs
image1 Image 1 of 3 (Advantech)
image2 Image 2 of 3 (Advantech)
image3 Image 3 of 3 (Advantech)
