Advantech ASMB-922 (Rev. A1)
Chipset
Socket
FSB speed Empty
Form factorExtended ATX/EATX (max 305 × 330 mm)
Dimensions305mm x 330mm
Cache
None/Integrated in the CPU
Max RAM size
128GB
RAM types DDR3 UDIMMDDR3 UDIMM ECC
PSU connector
I/O ports1x
PS/2 keyboard
1x
PS/2 mouse
3x
RJ-45 LAN
4x
SATA II
2x
SATA III
2x
Serial
9x
USB 2.0
2x
USB 3.0
1x
VGA
Expansion slots3x
PCIe x16
Known issues
- Expansion slots are on proprietary riser
The listed slots are on the riser card that came with the motherboard.
If you have this board make sure you have the riser for it.
Notes

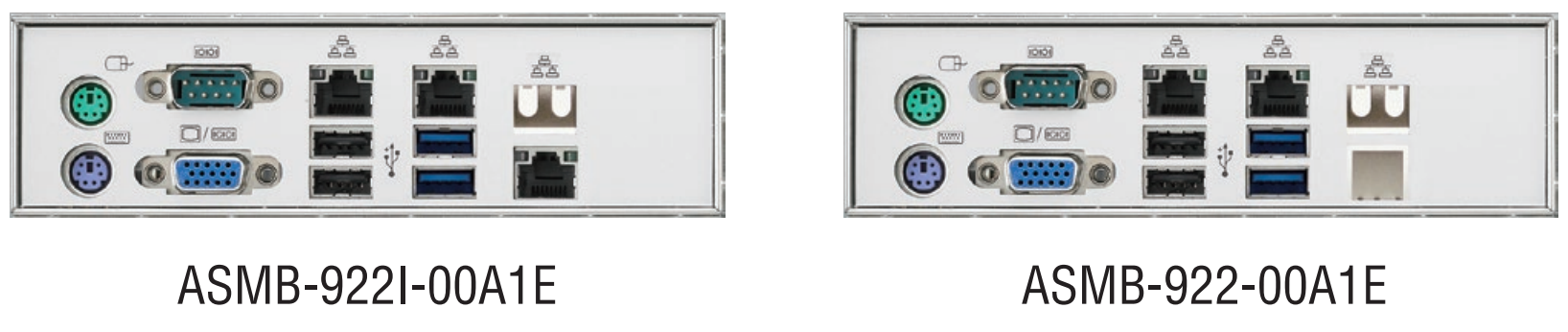

- ASMB-922 (no IPMI, AST 1300)
- ASMB-922I (IPMI, AST 2300)
Last updated 2025-11-30T06:29:14Z
Board info score is 7.5/10
Chips
-> Chipset part
-> Network
Intel I210 (PCIe Gigabit Ethernet)
Intel 82579LM (Gigabit Ethernet PHY)
Realtek RTL8201EL (Fast Ethernet PHY)
-> Remote Management Processor
-> Super I/O
0 BIOS files available
No drivers available
4 board documents available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2013-12
File
Logs
Chip
Release date
2022-01
File
Logs
Chip
Release date
2009-12-29
File
Logs

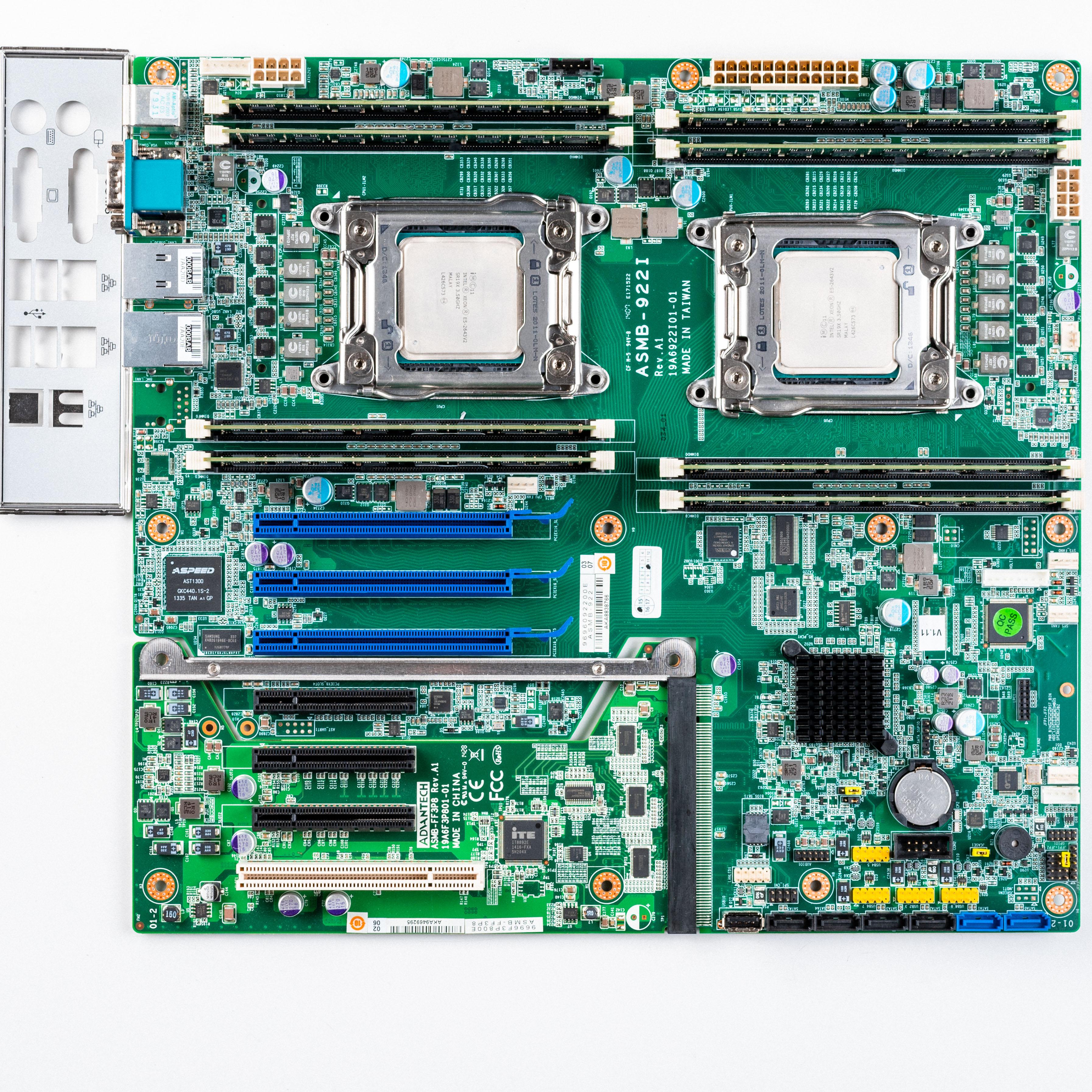

Image 1 of 7 (Motherboard Continuum)

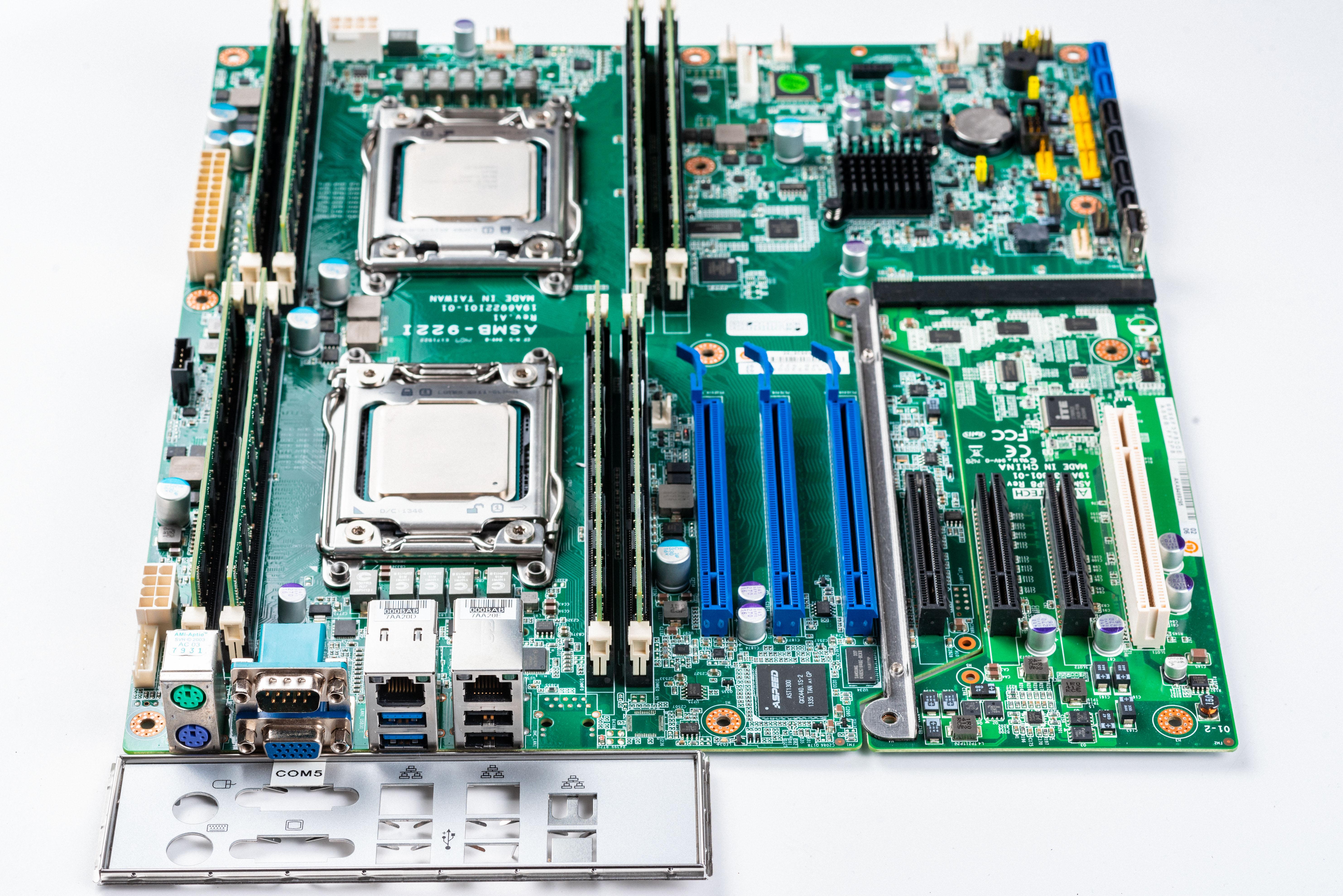

Image 2 of 7 (Motherboard Continuum)

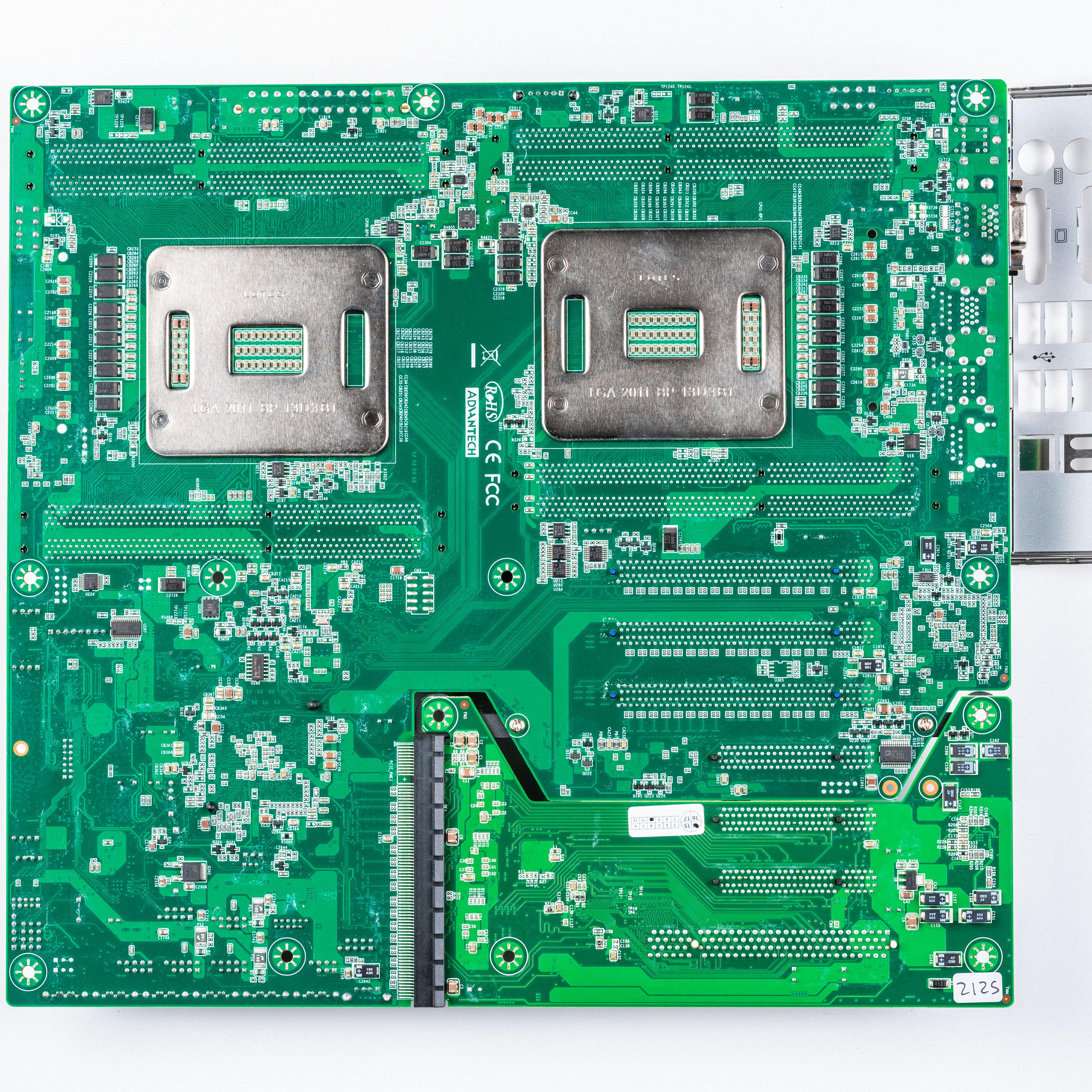

Image 3 of 7 (Motherboard Continuum)

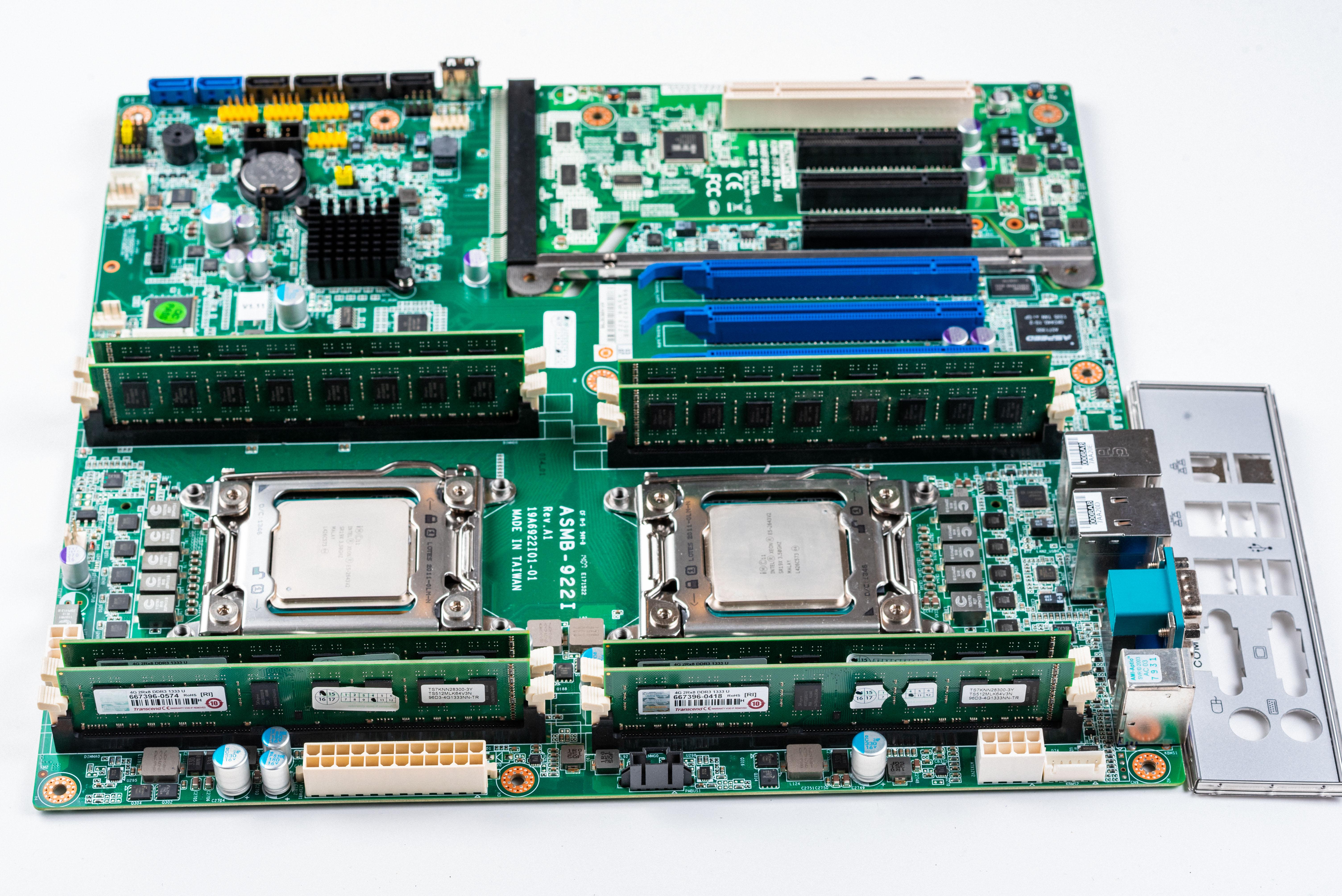

Image 4 of 7 (Motherboard Continuum)

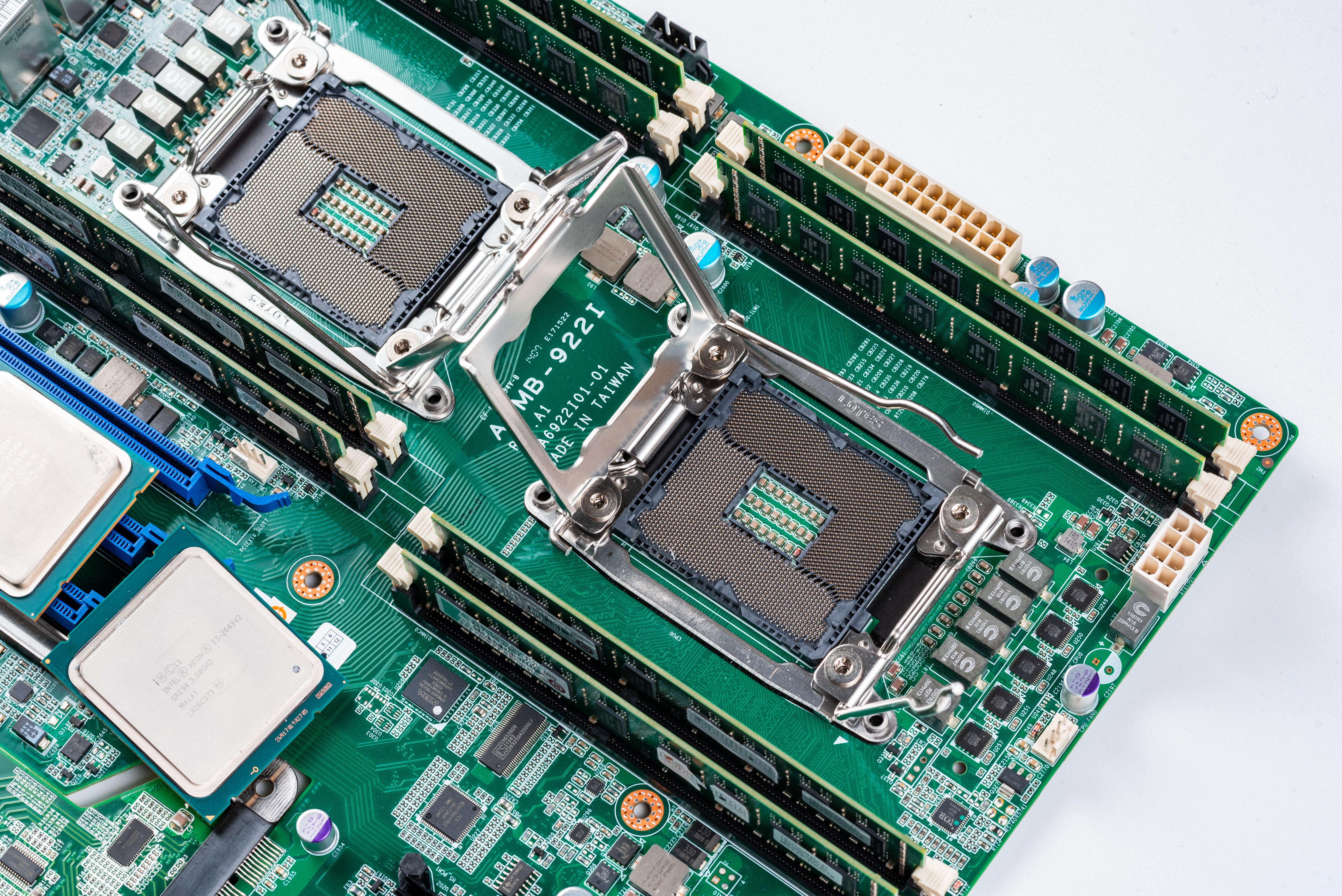

Image 5 of 7 (Motherboard Continuum)

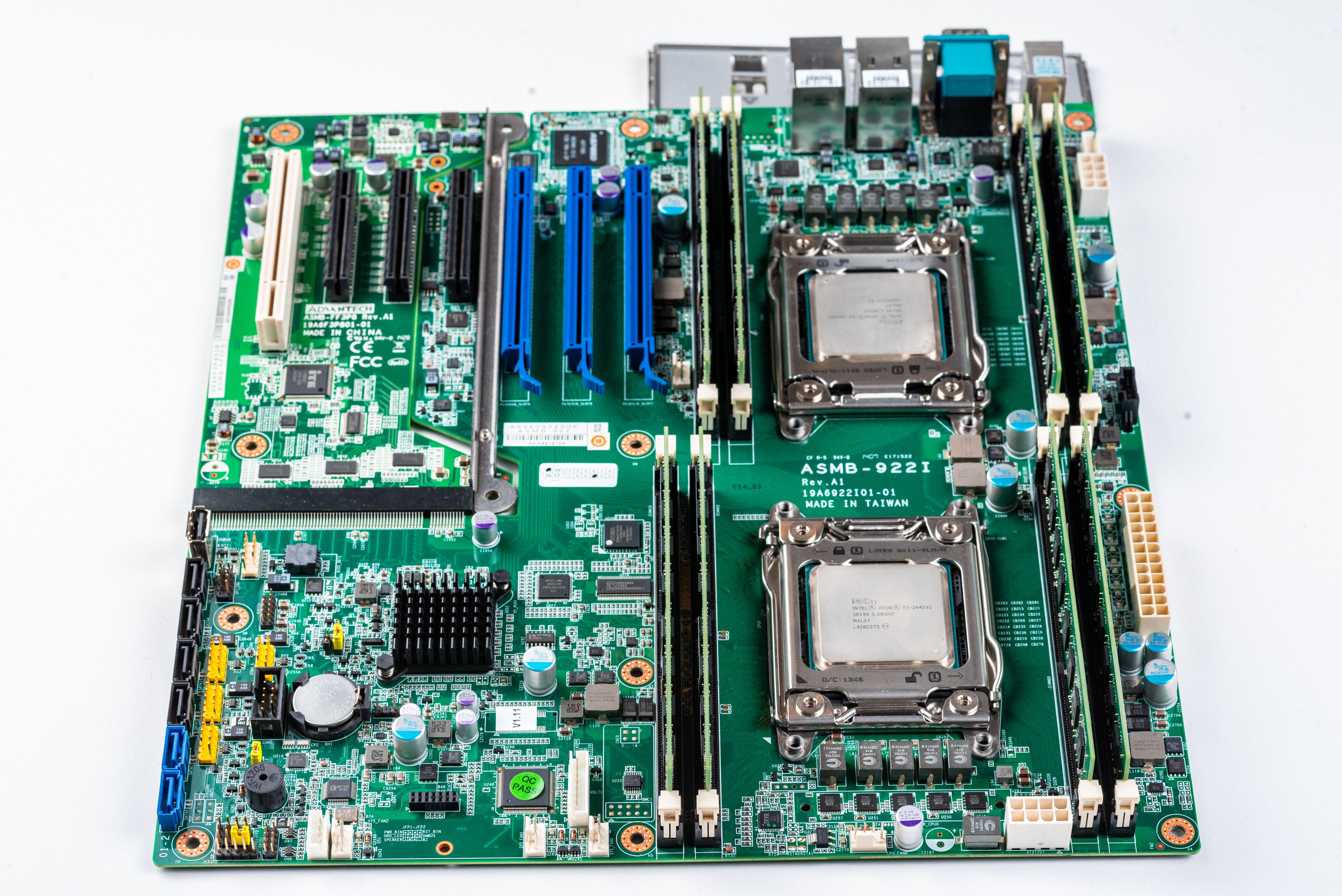

Image 6 of 7 (Motherboard Continuum)
Image 7 of 7 (Advantech)
