Advantech AIMB-785 (Rev. A1)
Logs
chipChipset
cpuSocket
Socket H4 (LGA1151)
speedFSB speed
Empty
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 244mm
chipCache
None/Integrated in the CPU
ramMax RAM size
64GB
ramRAM type
DDR4 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
tag Also known as
connI/O ports
1x
3.5mm Line-In
1x
3.5mm Line-Out
2x
DVI
1x
GPIO
1x
Parallel
2x
RJ-45 LAN
6x
SATA III
6x
Serial
7x
USB 2.0
6x
USB 3.0
1x
VGA
cardExpansion slots
3x
32-bit PCI
3x
PCIe x1
1x
PCIe x16
Last updated 2025-11-30T05:18:03Z
Board info score is 7.5/10
bios 0 BIOS files available
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename
doc 9 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
2015-09
File
Logs
Release date
2023-02
File
Logs
Release date
2024-10
File
Logs
Release date
2015-11
File
Logs
Release date
2017-01
File
Logs
Release date
2018-08
File
Logs
Release date
2020-10
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2011-03-31
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2011-07
File
Logs
Chip
Release date
2015-05-01
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2021-01
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2013-12
File
Logs
Chip
Release date
2022-01
File
Logs

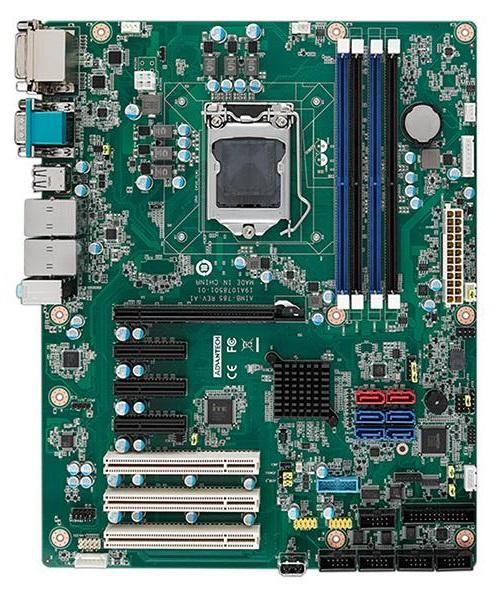

image1 Image 1 of 2 (Advantech)
