Advantech AIMB-542 (Rev. A1)
Logs
chipChipset
cpuSocket
Socket T (LGA775)
speedFSB speeds
533MHz800MHz
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
244mm x 244mm
chipCache
None/Integrated in the CPU
ramMax RAM size
4GB
ramRAM type
DDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX) ATX P4 connector 12v (4-pin P4)
tag Also known as
connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
SATA I
2x
Serial
8x
USB 2.0
1x
VGA
cardExpansion slots
1x
1.5V AGP
3x
32-bit PCI
Last updated 2025-11-30T06:39:20Z
Board info score is 7.8/10
chip Chips
-> Chipset part
Intel 82865G (GMCH) Intel 82801EB (ICH5)
-> Audio
Realtek ALC655 (AC97)
-> Network
Realtek RTL8100C (PCI Fast Ethernet)
-> Super I/O
Winbond W83627EHG
cpufam CPU family support
Empty
bios 0 BIOS files available
drv 10 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
14.17.0.4396
OS support
Windows 2000 Windows XP/2k3
Arch
Size
Empty
Filename
Name
Version
3.40.1001
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
2.2MB
Filename
Name
Version
A4.06
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
17.9MB
Filename
Name
Version
V5.00
OS support
MS-DOS Mac OS X NetWare Server 3 NetWare Server 4 Netware Client32 SCO Unix - OpenServer Windows 2000 Windows 3.1x Windows 9x Windows NT 3.5x Windows NT 4.0
Arch
x86 , PPC
Size
3.3MB
Filename
Name
Version
1.0
OS support
MS-DOS Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
490.9KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
2.4MB
Filename
Version
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
Empty
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
Size
Empty
Filename
Version
OS support
Windows NT 4.0
Arch
Size
Empty
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
Size
Empty
Filename
doc 3 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
2006-07
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2003-04
File
Logs
Chip
Release date
2003-05
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2003-05
File
Logs
Chip
Release date
2004-02
File
Logs
Chip
Release date
2003-05
File
Logs
Chip
Release date
2004-02
File
Logs
Chip
Release date
2003-09
File
Logs
Chip
Release date
2004-02
File
Logs
Chip
Release date
2003-09
File
Logs
Chip
Release date
2004-03
File
Logs
Chip
Release date
2003-09
File
Logs
Chip
Release date
2003-10
File
Logs
Chip
Release date
2003-05
File
Logs
Chip
Release date
2004-11-05
File
Logs
Chip
Release date
File
Logs
Socket
Release date
File
Logs
Socket
Release date
2006-02
File
Logs
Socket
Release date
2004
File
Logs

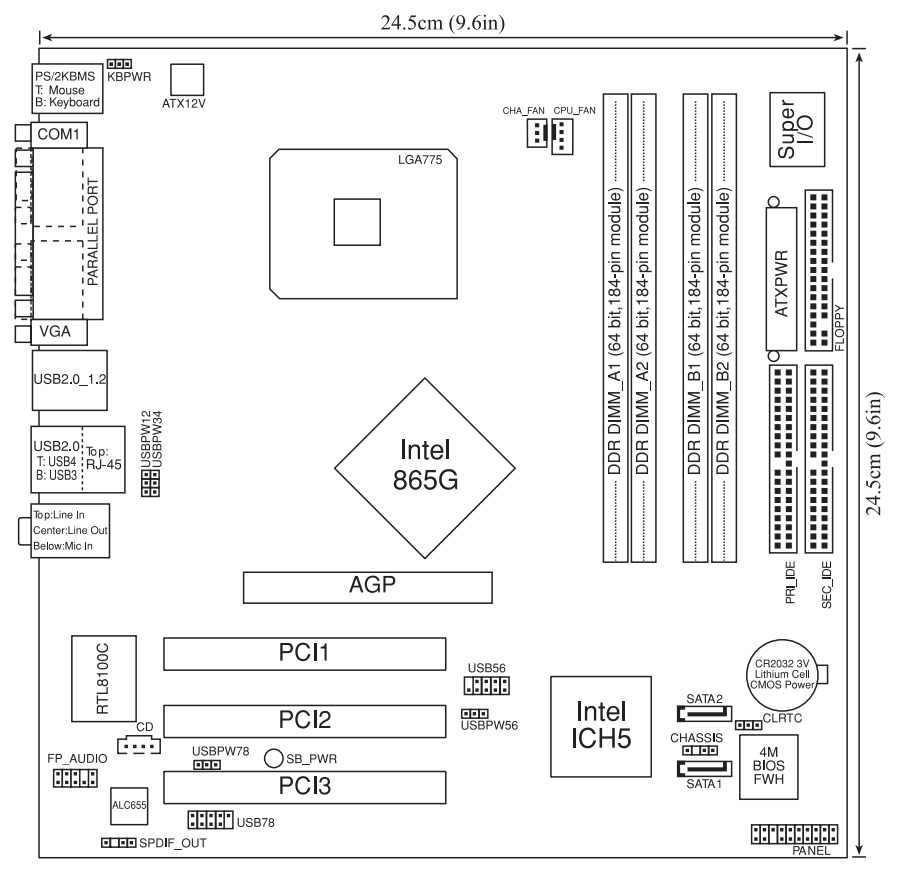

image1 Image 1 of 8 (Advantech)

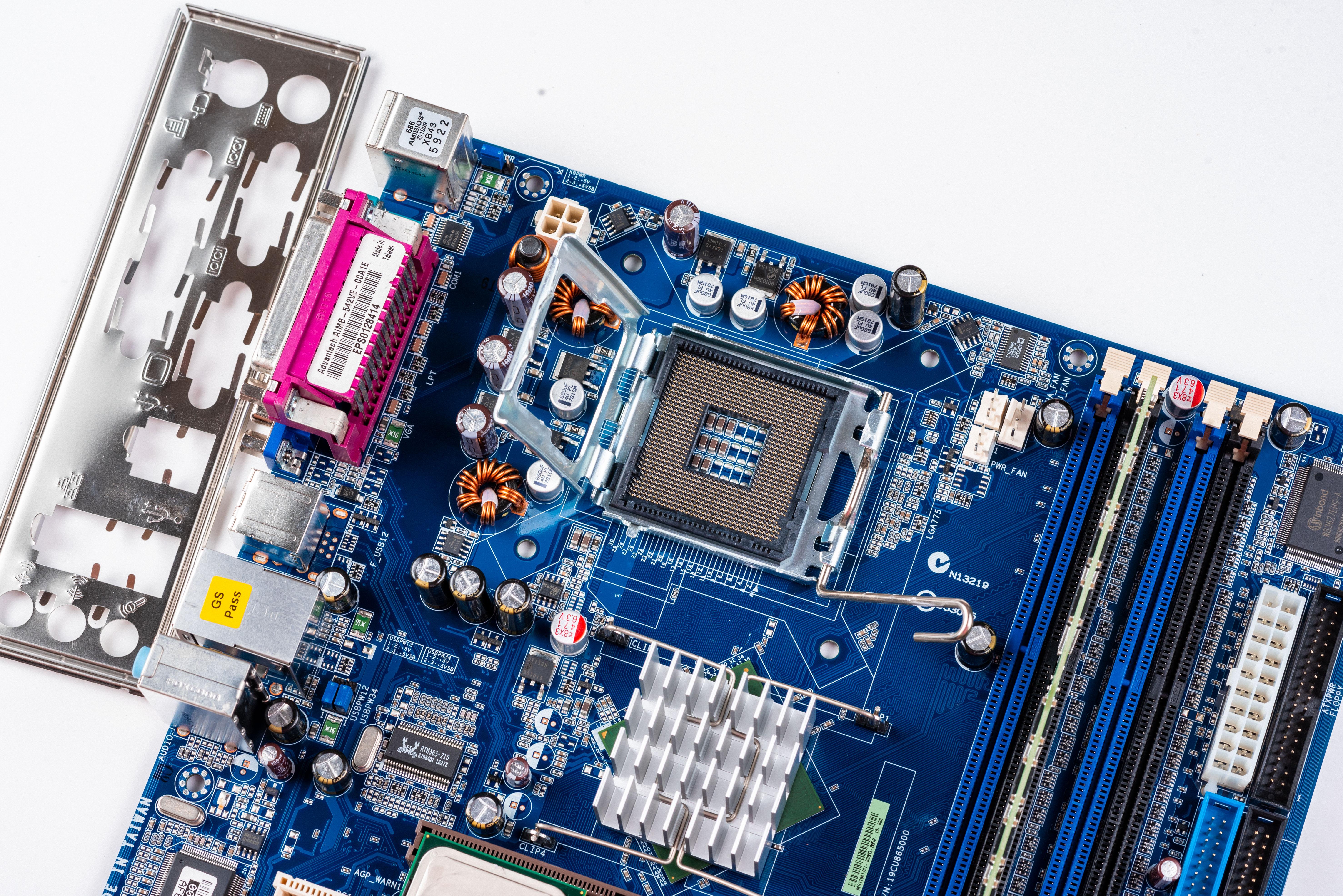

image2 Image 2 of 8 (Motherboard Continuum)

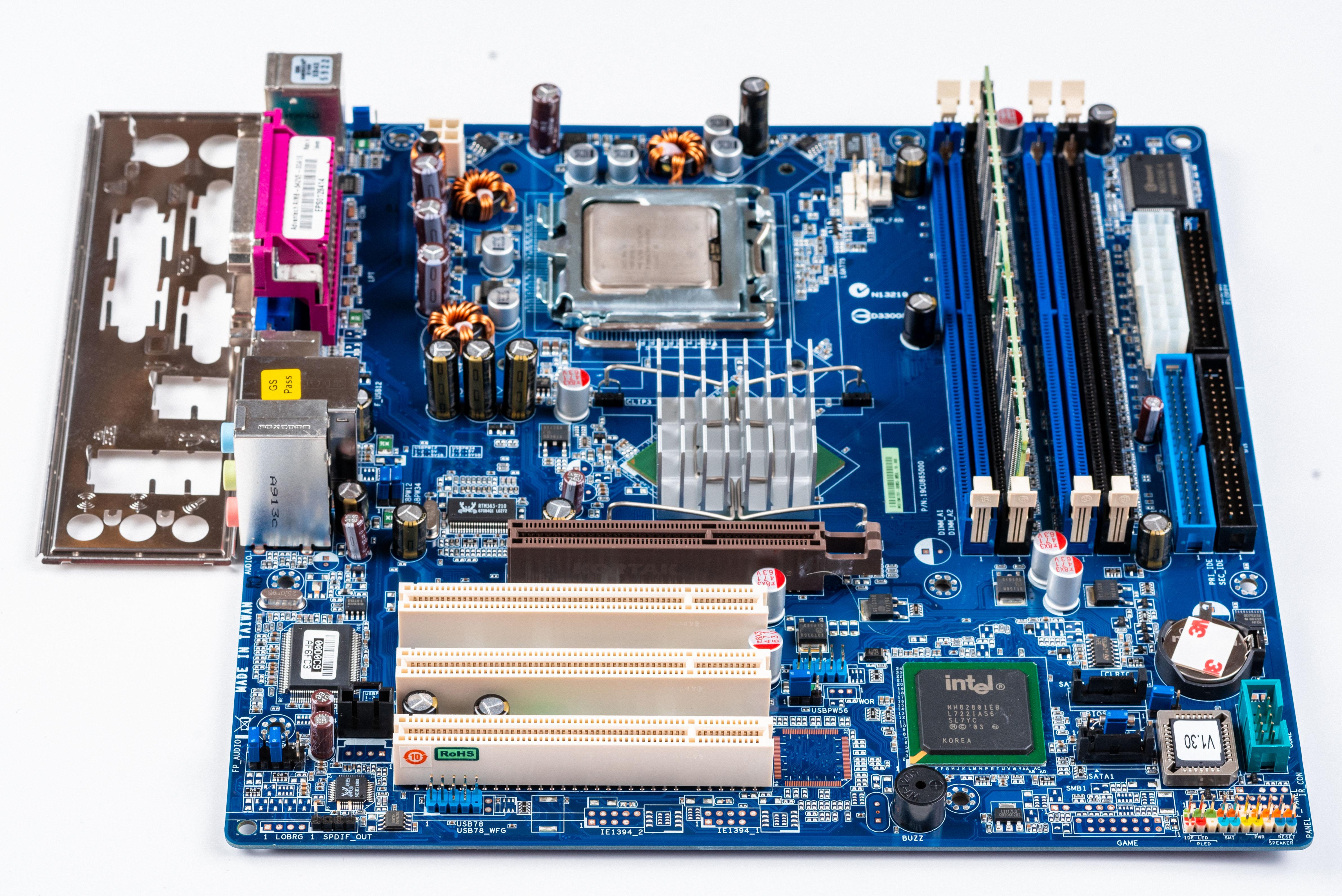

image3 Image 3 of 8 (Motherboard Continuum)

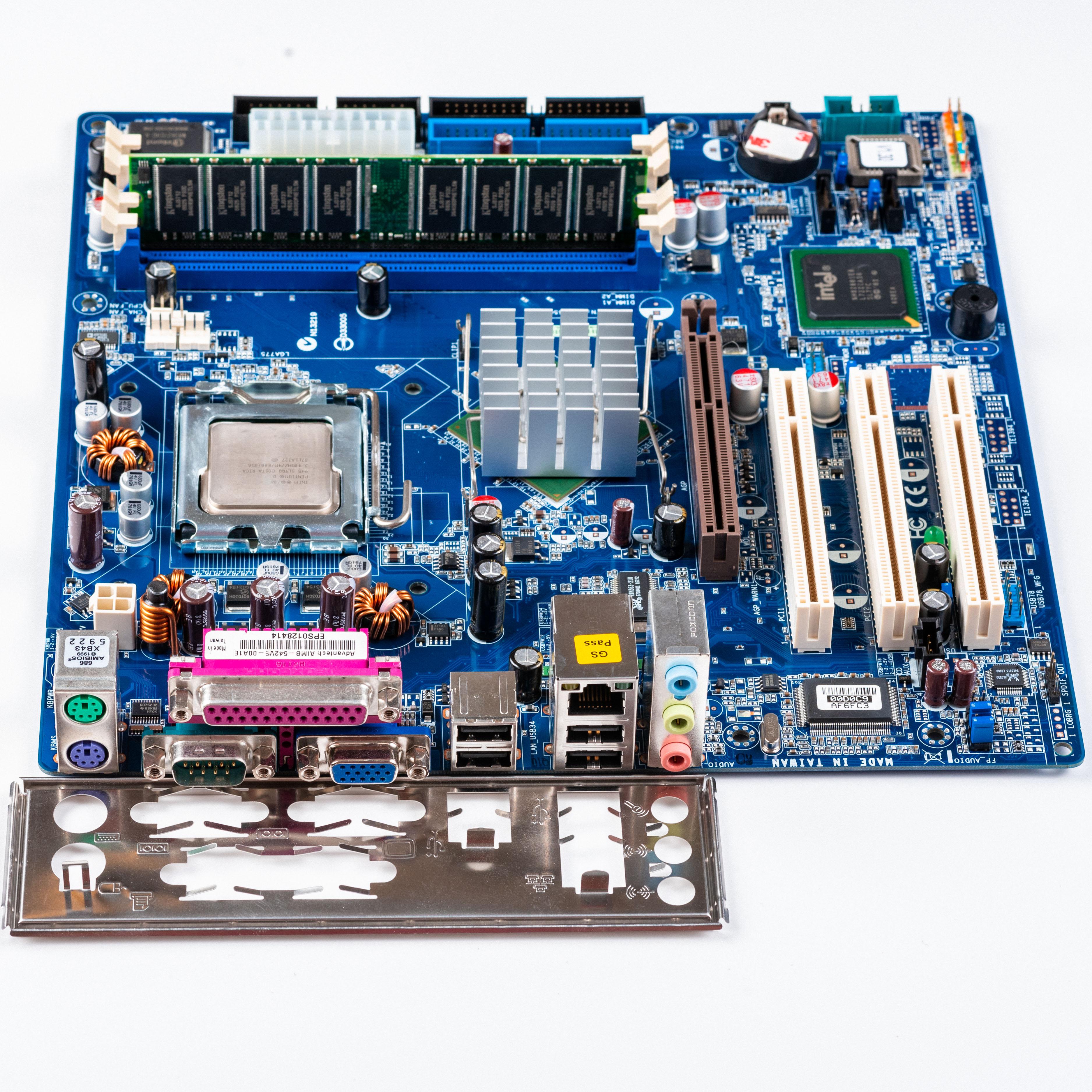

image4 Image 4 of 8 (Motherboard Continuum)

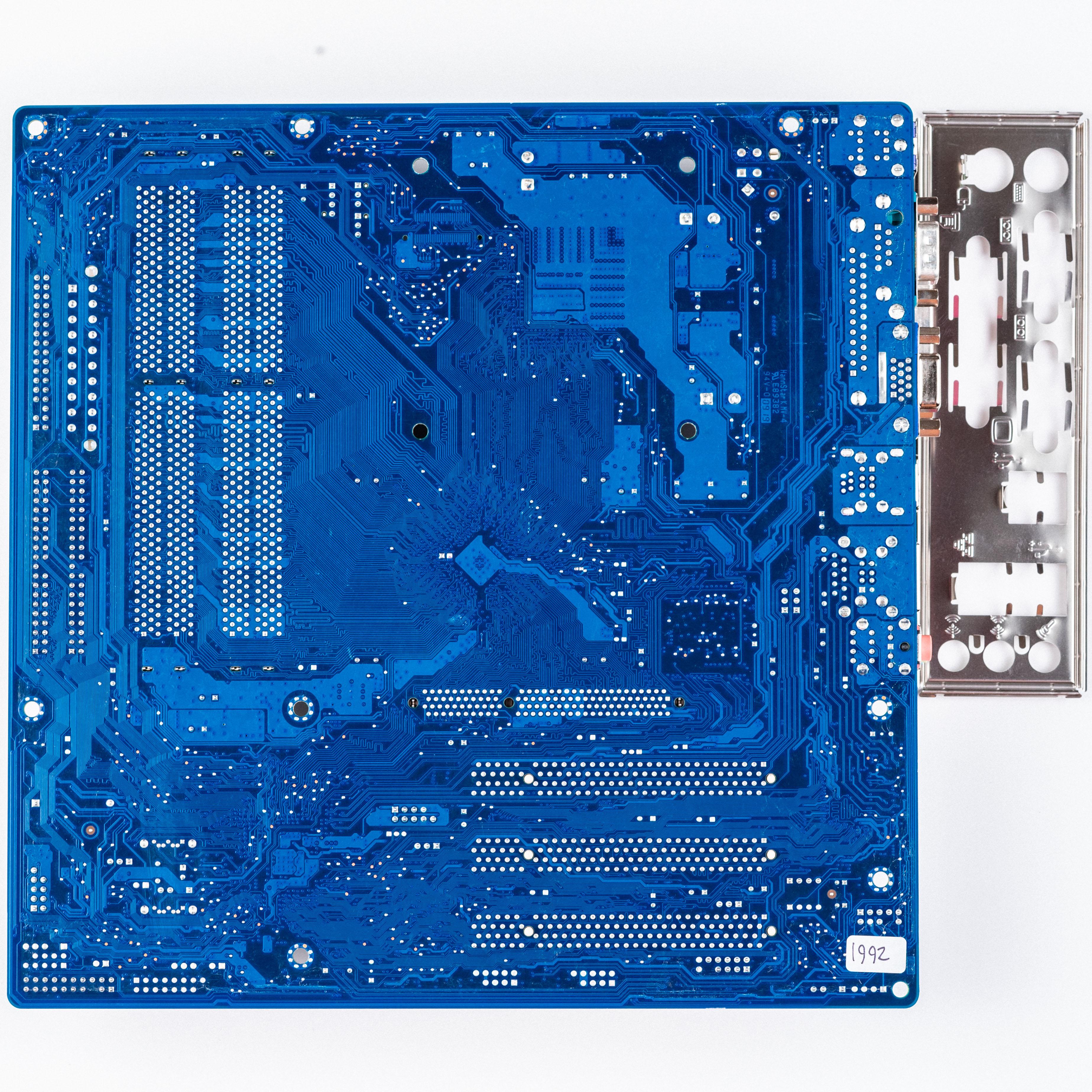

image5 Image 5 of 8 (Motherboard Continuum)

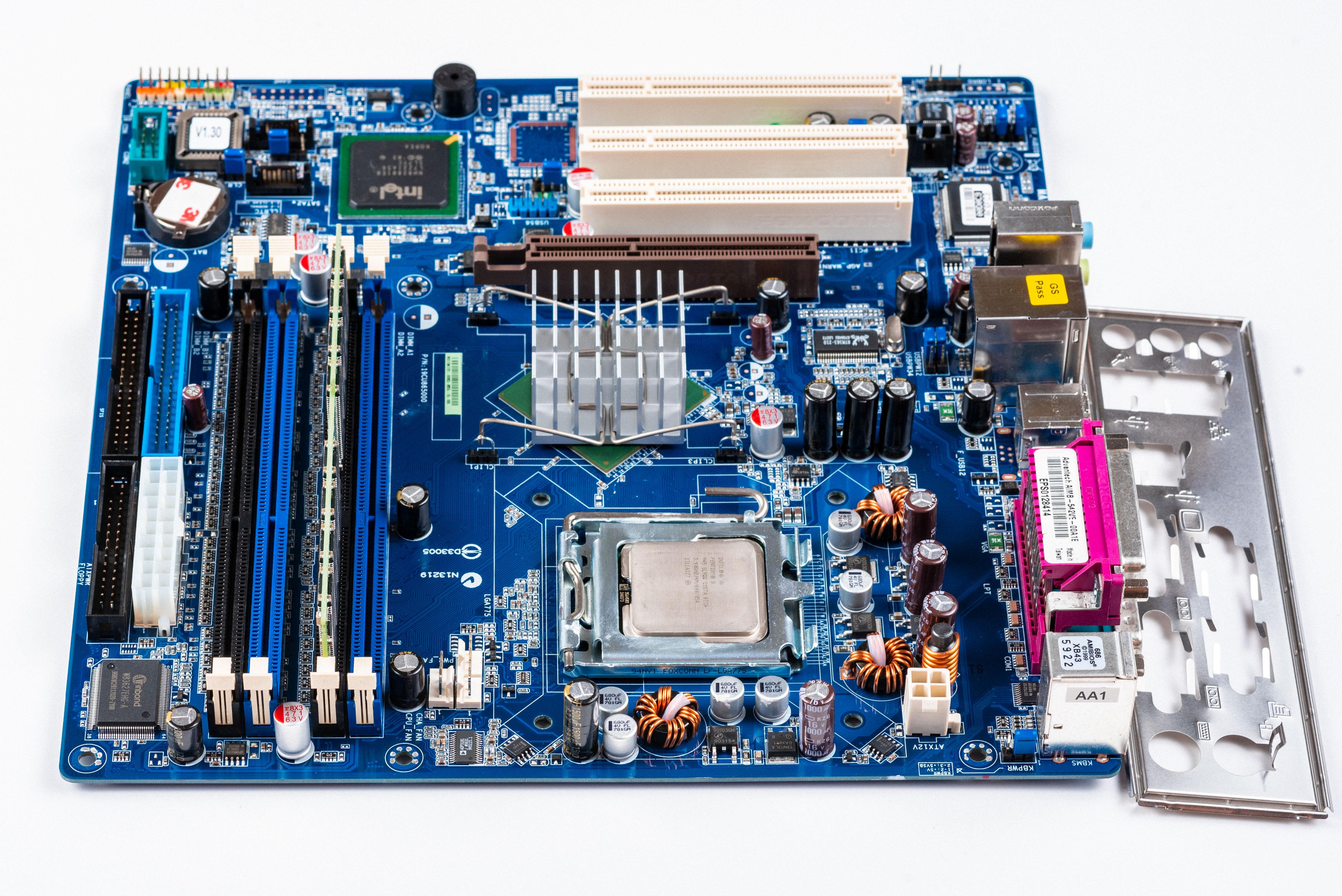

image6 Image 6 of 8 (Motherboard Continuum)

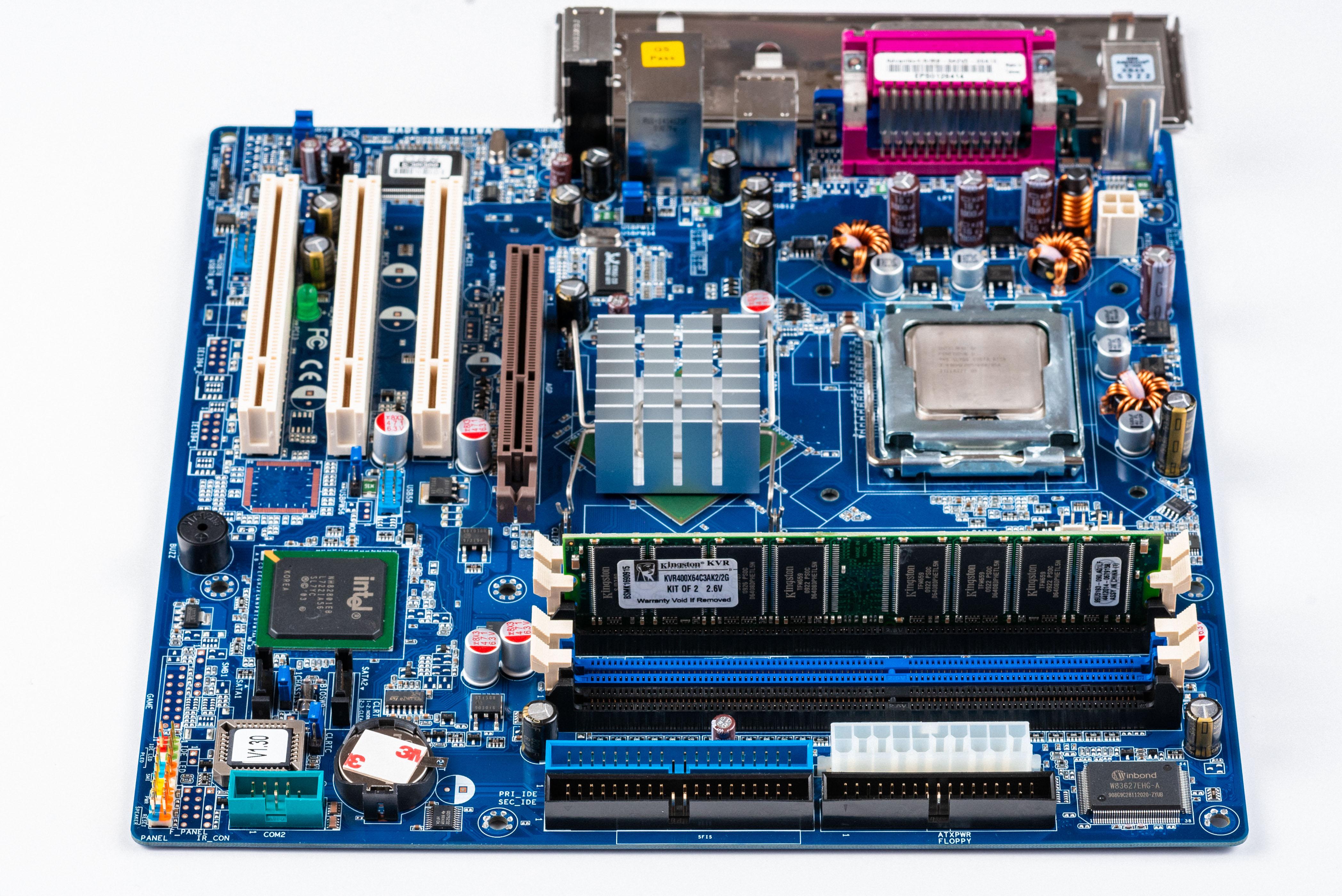

image7 Image 7 of 8 (Motherboard Continuum)
image8 Image 8 of 8 (Motherboard Continuum)
