Advantech AIMB-213 (Rev. A1)
Logs
chipChipset
cpuSocket
BGA559
speedFSB speed
Empty
moboForm factor
Mini ITX (max 170 x 170 mm)
dimDimensions
170mm x 170mm
ramMax VRAM size
224MB
chipCache
None/Integrated in the CPU
ramMax RAM size
8GB
ramRAM type
204-pin DDR3 SO-DIMM
pwrPSU connector
DC Jack (12V)
tag Also known as

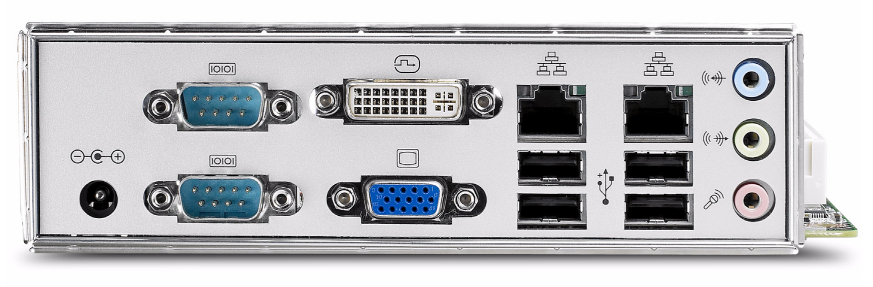

connI/O ports
1x
3.5mm Audio Combo
1x
CF Card Slot
1x
DVI
1x
GPIO
1x
LVDS
2x
RJ-45 LAN
3x
SATA II
6x
Serial
8x
USB 2.0
1x
VGA
cardExpansion slots
1x
32-bit PCI
1x
Mini-PCIe
notes Notes

AIMB-213N-S6A1E - Atom N455

AIMB-213D-S6A1E - Atom D525

Last updated 2025-11-30T06:35:37Z
Board info score is 7.2/10
bios 0 BIOS files available
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
2011-04
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2011-03-31
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2007-04-10
File
Logs
Chip
Release date
2007-01-31
File
Logs
Chip
Release date
2009-07-09
File
Logs
Family
Release date
File
Logs
Family
Release date
2011-09-14
File
Logs
Family
Release date
2011-09-14
File
Logs
Family
Release date
2011-09-15
File
Logs
Family
Release date
2011-09-15
File
Logs
Family
Release date
2012-12
File
Logs
Family
Release date
2010-06
File
Logs
Family
Release date
2010-06
File
Logs
Family
Release date
2010-03
File
Logs
Family
Release date
2010-03
File
Logs
Family
Release date
2009-12
File
Logs
Family
Release date
2014-07
File
Logs

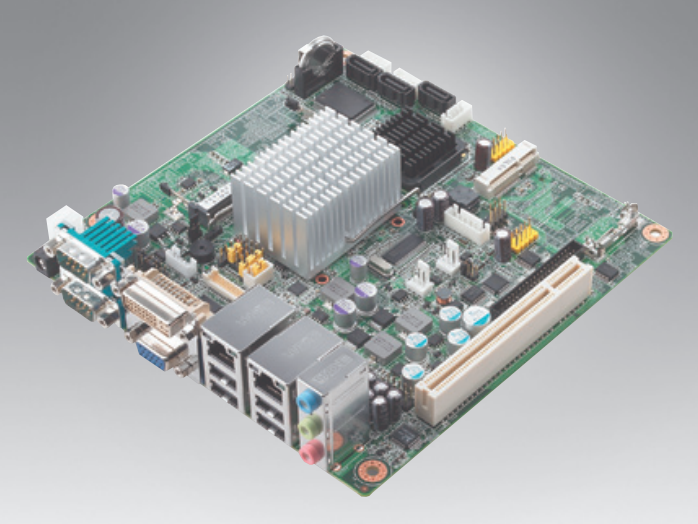

image1 Image 1 of 3 (Advantech)
image2 Image 2 of 3 (Advantech)
image3 Image 3 of 3 (Advantech)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
