ADLink WBP-13E8 Backplane
Logs
chipChipset
Empty
cpuSocket
Empty
speedFSB speed
Empty
moboForm factor
OEM / Proprietary
dimDimensions
327.6mm x 317.5mm
chipCache
None/Integrated in the CPU
ramMax RAM size
Empty
ramRAM type
Empty
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
connI/O ports
2x
SATA II
4x
USB 2.0
cardExpansion slots
4x
32-bit PCI
5x
PCIe x1
1x
PCIe x16 @ x8
2x
PCIe x4
1x
PICMG 1.3 (SHB Express) Full-size
notes Notes

Supports NuPRO-E72 & NuPRO-E43 SBC only

Last updated 2025-06-03T21:06:51Z
Board info score is 4.9/10
chip Chips
-> Bridge Interface
AsMedia ASM1182e (3-lane PCIe 2.0 switch)
cpufam CPU family support
Empty
bios 0 BIOS files available
drv No drivers available
doc 2 board documents available
Release date
File
Logs
Release date
2020-06-22
File
Logs
Release date
2020-09-26
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2015-11-06
File
Logs
Chip
Release date
2019-12-18
File
Logs

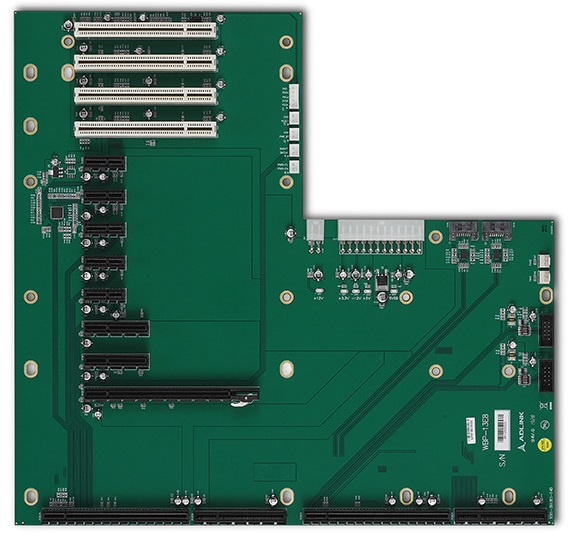

image1 Image 1 of 2 (ADLink)

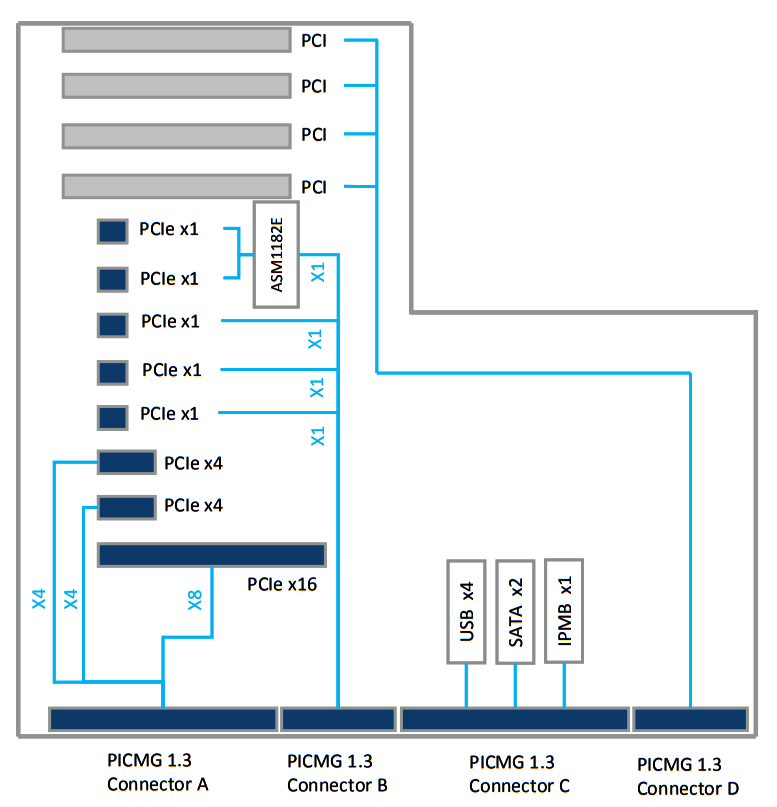

image2 Image 2 of 2 (ADLink)
