ADI F4DXP-UC5D-I
Logs
chipChipset
cpuSocket
Socket 3 (PGA237)
speedFSB speed
Empty
moboForm factor
Baby AT (max 220 x 330 mm)
dimDimensions
Empty
chipCache
None/Integrated in the CPU
ramMax RAM size
Empty
ramRAM type
72-pin FPM
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
connI/O ports
1x
AT Keyboard
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
Parallel
2x
Serial
cardExpansion slots
4x
16-bit ISA
3x
32-bit PCI
Last updated 2025-05-30T21:42:01Z
Board info score is 8.1/10
chip Chips
-> Chipset part
UMC UM8881F UMC UM8886F
-> Signal transmitter/receiver
UMC UM8667 (2 Port RS-232 Driver/Receiver)
-> Super I/O
UMC UM8663
cpufam CPU family support
bios 1 BIOS file available

vendor Award - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
08/04/95-UMC-881/886A-2A4X5AN8C-00
Note
Core version
4.50PG
BIOS version
Logs
drv No drivers available
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
1996-03
File
Logs
Family
Release date
1995-07
File
Logs
Family
Release date
1995-10
File
Logs
Family
Release date
1995-12
File
Logs
Family
Release date
1989-04
File
Logs
Family
Release date
1990
File
Logs
Family
Release date
1992-10
File
Logs
Family
Release date
1992-02
File
Logs

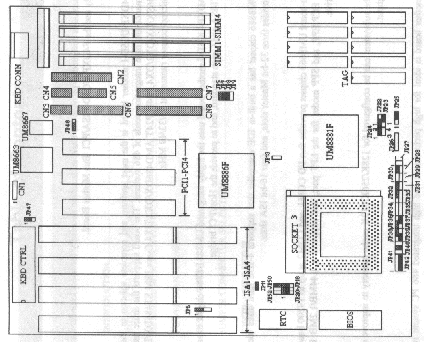

image1 Image 1 of 4 (evasive)

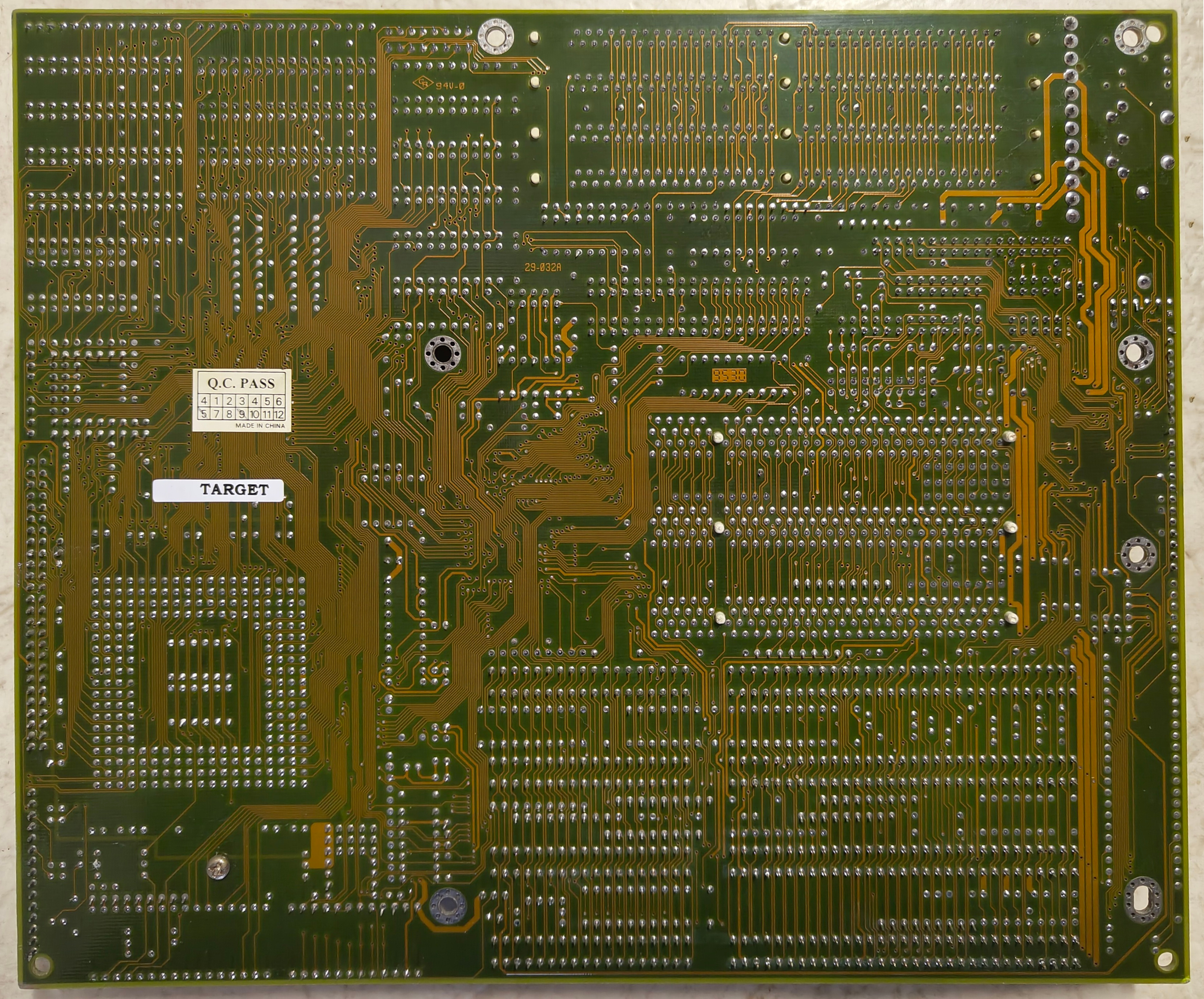

image2 Image 2 of 4 (Murugan)

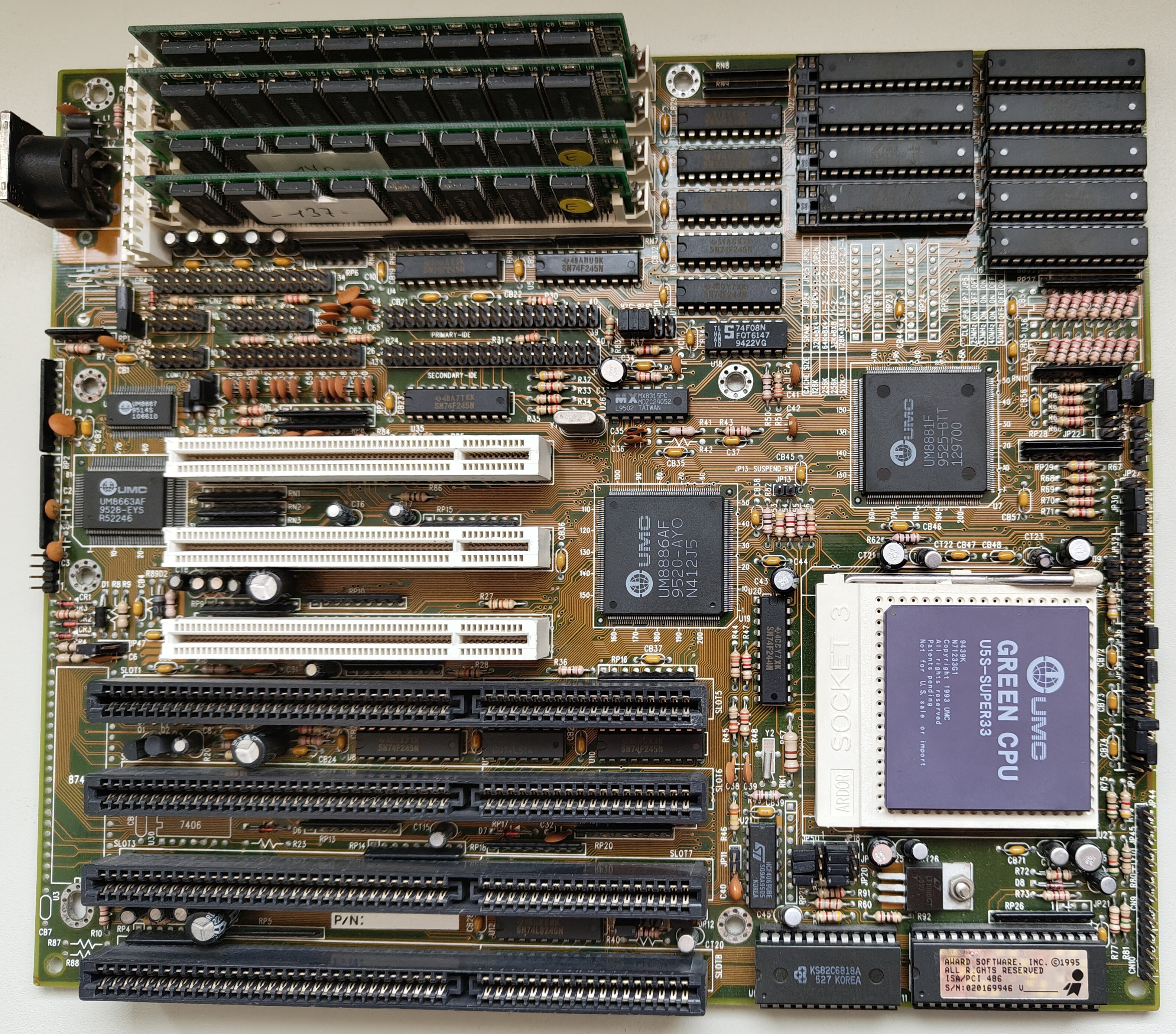

image3 Image 3 of 4 (Murugan)

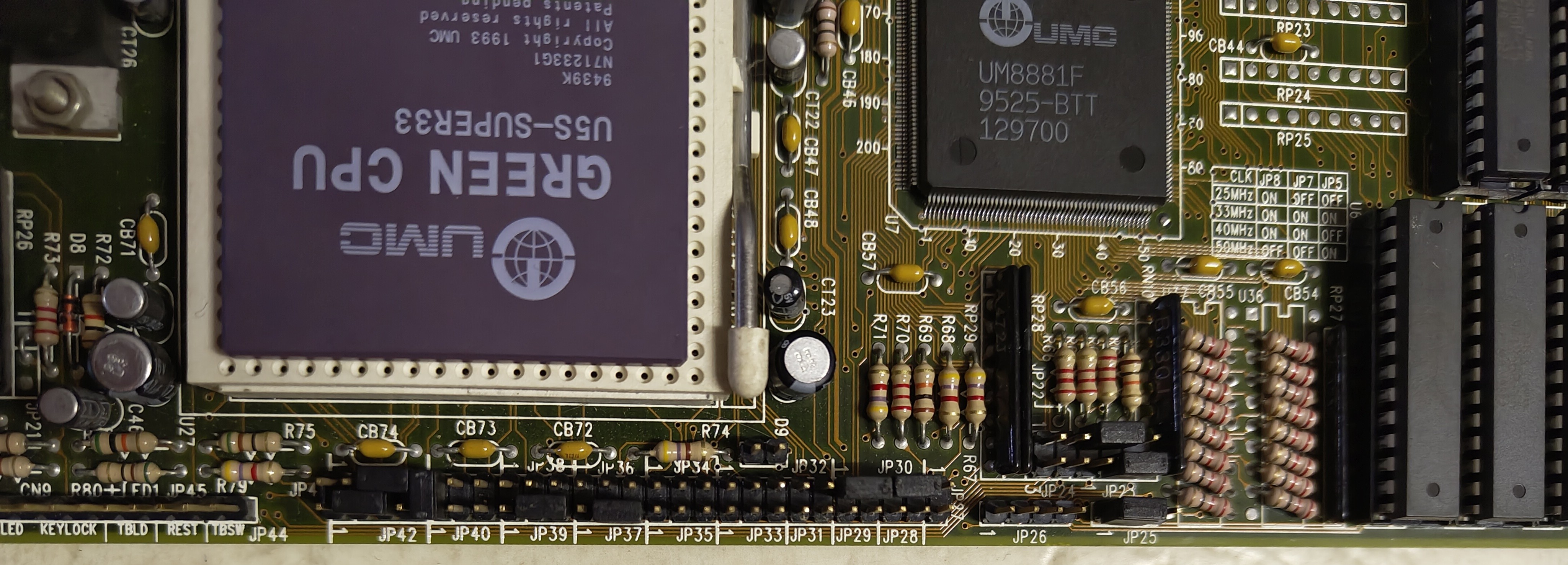

image4 Image 4 of 4 (Murugan)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
