Addtech GALAXY II 486 VER. 1.0
Chipset
Socket
FSB speeds 16MHz20MHz25MHz33MHz40MHz50MHz
Form factorBaby AT (max 220 x 330 mm)
Dimensions330mm x 218mm
Cache
128KB256KB512KB1MB
Max RAM size
256MB
RAM type 72-pin FPM
PSU connector
I/O ports1x
AT Keyboard
Expansion slots4x
16-bit ISA
4x
32-bit PCI
2x
32-bit VLB
1x
8-bit ISA
Known issues
- Leaky Ni-Cd clock battery
The Ni-Cd battery may be leaking, risking damage to PCB layers & nearby components. Promptly remove the battery & clean corrosion/alkaline salts from the board. Use white vinegar to dissolve salts, but exercise caution as vinegar can corrode exposed metals. A thorough examination & repair may be needed. Replace battery with guide: https://github.com/wiretap-retro/Not-A-Varta
Last updated 2024-12-30T15:38:23Z
Board info score is 9.2/10
Chips
-> Chipset part
-> Bridge Interface
-> Human Interface
CPU family support
1 BIOS file available
AMI - 1 entry
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
Core version
BIOS version
Logs
Award - 1 entry
POST string
Note
Core Ver.
BIOS Ver.
Logs
No drivers available
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1995-11-30
File
Logs
Chip
Release date
1990
File
Logs
Chip
Release date
1996-08-09
File
Logs
Chip
Release date
1996-05-15
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1995-11-22
File
Logs
Chip
Release date
1994-07
File
Logs
Chip
Release date
1996-01
File
Logs
Family
Release date
File
Logs

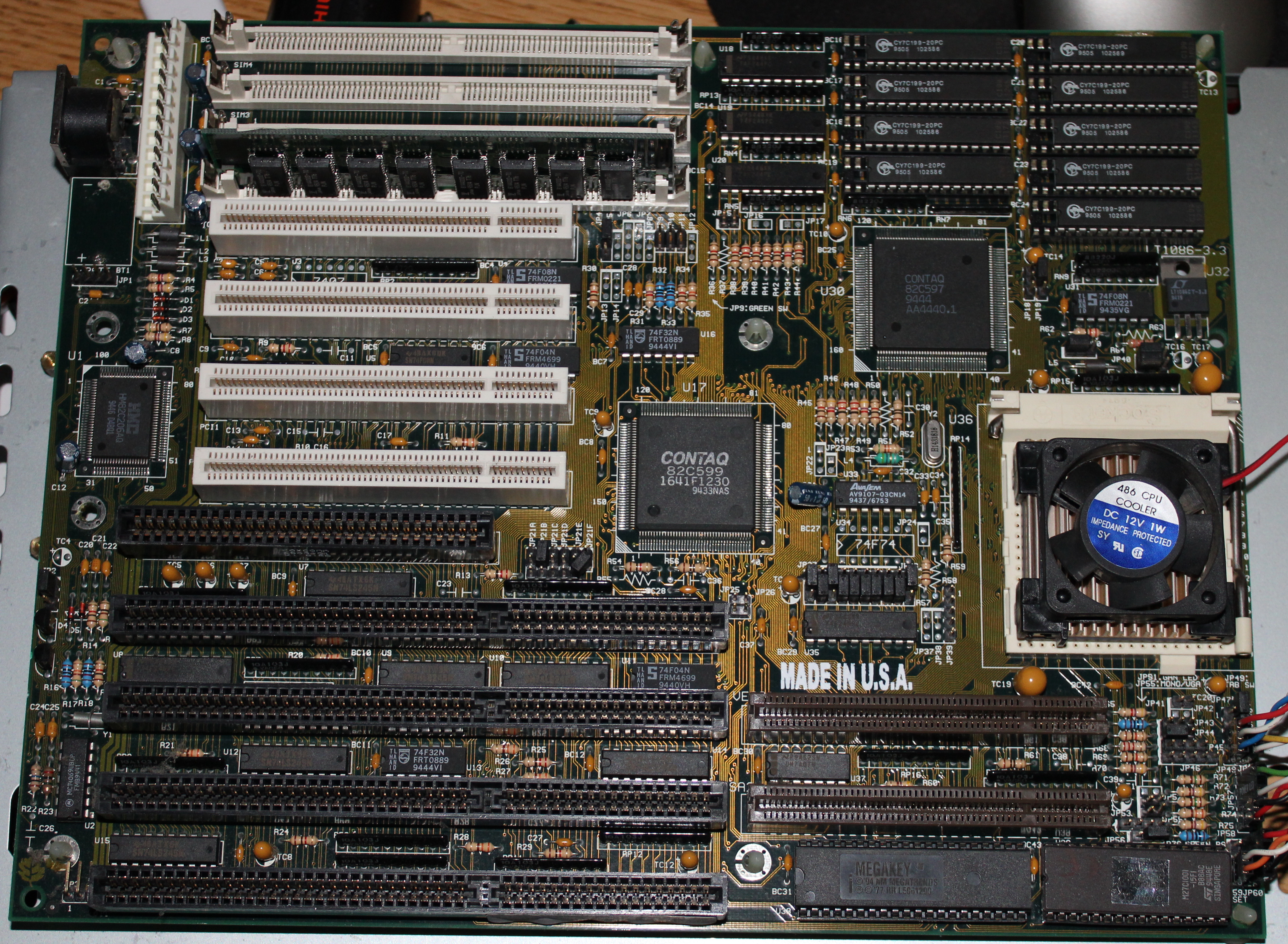

Image 1 of 2 (Microhouse)
Image 2 of 2 (andysarcade)
