Acrosser AR-B1550
Logs
chipChipset
cpuSocket
BGA352
speedFSB speed
33MHz
moboForm factor
OEM / Proprietary
dimDimensions
145 mm x 102 mm
ramMax VRAM size
2MB
chipCache
512KB
ramMax RAM size
128MB
ramRAM type
144-pin SDR SO-DIMM
pwrPSU connector
Empty
connI/O ports
1x
Floppy interface
1x
IDE interface
3x
RJ-45 LAN
2x
USB 1.x
1x
VGA
cardExpansion slots
Empty
notes Notes

Should be used with the AR-B9459 I/O board as that holds the PS/2 mouse+keyboard, 2x serial, parallel and CF card.

Last updated 2025-05-30T19:09:45Z
Board info score is 7.7/10
chip Chips
-> Chipset part
National Semiconductor CS5530A
-> Audio
Cyrix n/a (XpressAUDIO)
-> Video
Cyrix n/a (XpressGRAPHICS)
cpufam CPU family support
bios 6 BIOS files available

vendor Award - 6 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
06/25/2002-GXm-Cx5530-2A434AVFC-00
Note
Core version
4.51PG
BIOS version
Logs
POST string
06/25/2002-GXm-Cx5530-2A434AVFC-00
Note
Core version
4.51PG
BIOS version
Logs
POST string
09/18/2000-GXm-Cx5530-2A434AVFC-00
Note
Core version
4.51PG
BIOS version
Logs
POST string
09/18/2000-GXm-Cx5530-2A434AVFC-00
Note
Core version
4.51PG
BIOS version
Logs
POST string
09/18/2000-GXm-Cx5530-2A434AVFC-00
Note
Core version
4.51PG
BIOS version
Logs
POST string
09/18/2000-GXm-Cx5530-2A434AVFC-00
Note
Core version
4.51PG
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
4.10.01.1305
OS support
Windows 3.1x Windows NT 4.0
Arch
Size
363.2KB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs

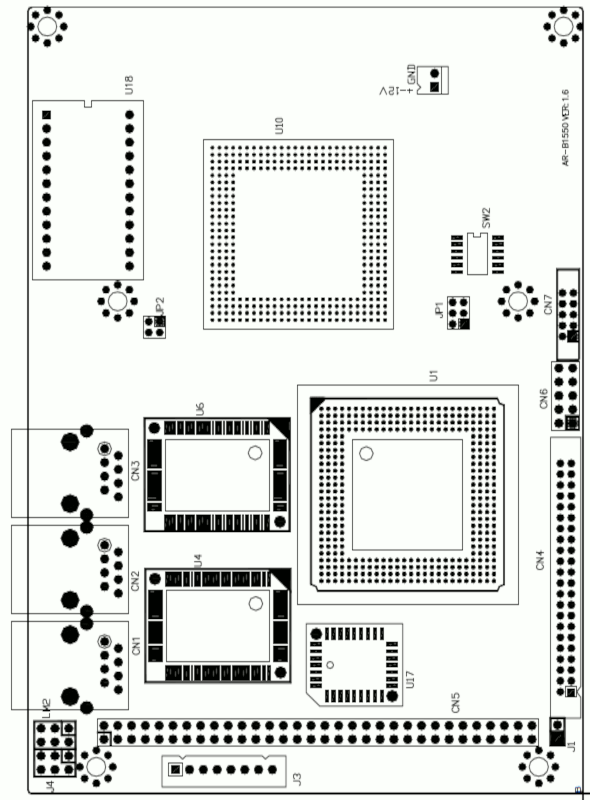

image1 Image 1 of 1 (Acrosser)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
