Acer V12L
Chipset
Socket
FSB speeds 60MHz66MHz
Form factorLPX (max 229 x 330 mm)
DimensionsEmpty
Cache
None/Integrated in the CPU
Max RAM size
128MB
RAM type 72-pin FPM
PSU connector
Empty
I/O ports1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
1x
VGA
Expansion slotsEmpty
Known issues
- Expansion slots are on proprietary riser
The listed slots are on the riser card that came with the motherboard.
If you have this board make sure you have the riser for it.
Notes
will not run with V12LC bios
Last updated 2025-06-24T20:09:33Z
Board info score is 5.6/10
Chips
CPU family support
0 BIOS files available
4 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.43
OS support
MS-DOS
Windows 3.1x
Arch
x86
Size
741.9KB
Filename
Name
Version
1.24
OS support
OS/2 2.x
Windows 3.1x
Windows NT 3.1
Windows NT 3.5x
Arch
x86
Size
9.9MB
Filename
Version
OS support
Arch
Size
Filename
No board documents available
Chip
Release date
File
Logs
Chip
Release date
1994-04
File
Logs
Family
Release date
File
Logs

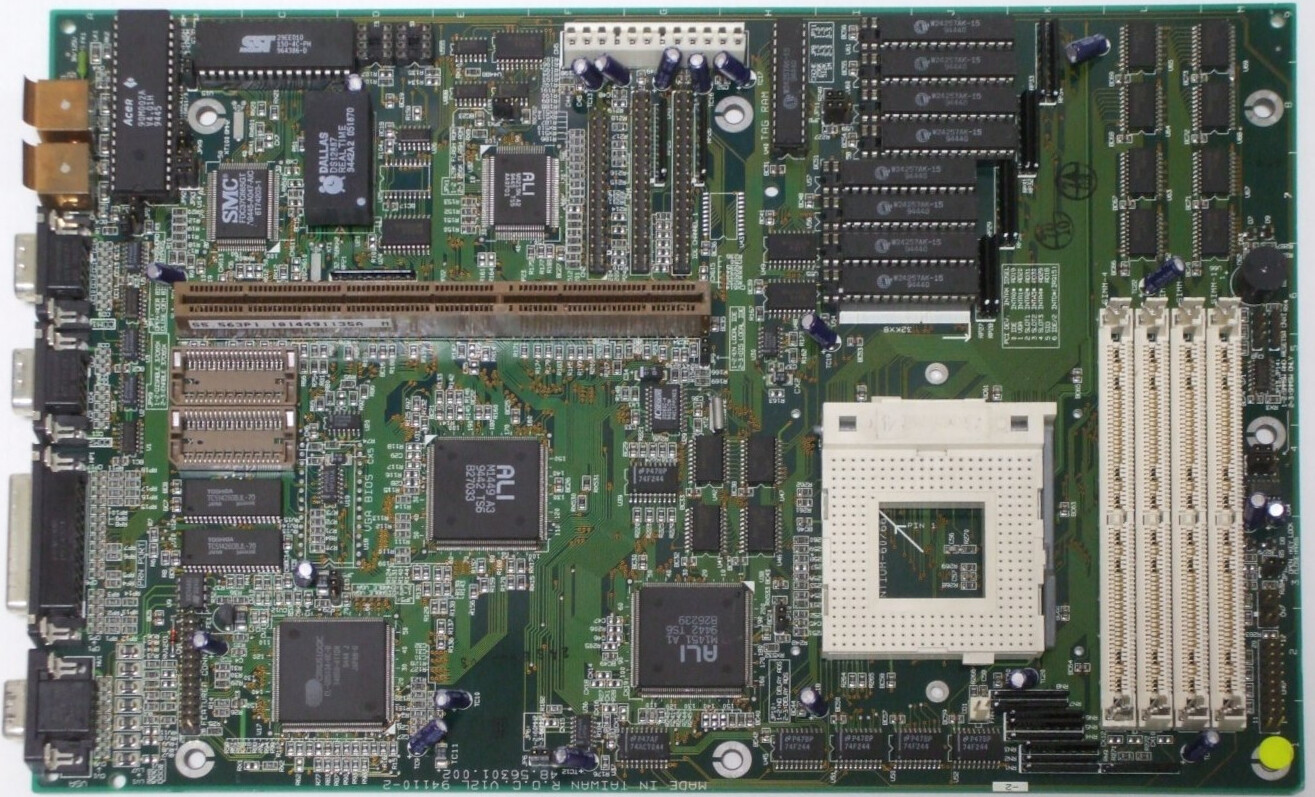

Image 1 of 1 (Acer Motherboard Wiki FC2)
Disclaimer
The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
