Acer MPF-PC/1100 25/33
Chipset
Sockets
FSB speeds 25MHz33MHz
Form factorAT (max 305 x 330 mm)
Dimensions355mm x 305mm
Cache
None/Integrated in the CPU
Max RAM size
8MB
RAM type 30-pin SIMM
PSU connector
Also known as
- Unisys PW2 800
I/O ports1x
AT Keyboard
1x
Parallel
2x
Serial
Expansion slots6x
16-bit ISA
1x
8-bit ISA
Last updated 2025-06-18T12:51:52Z
Board info score is 7.7/10
Chips
-> Chipset part
0 BIOS files available
Award - 1 entry
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
Core version
2.20
BIOS version
Logs
No drivers available
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs

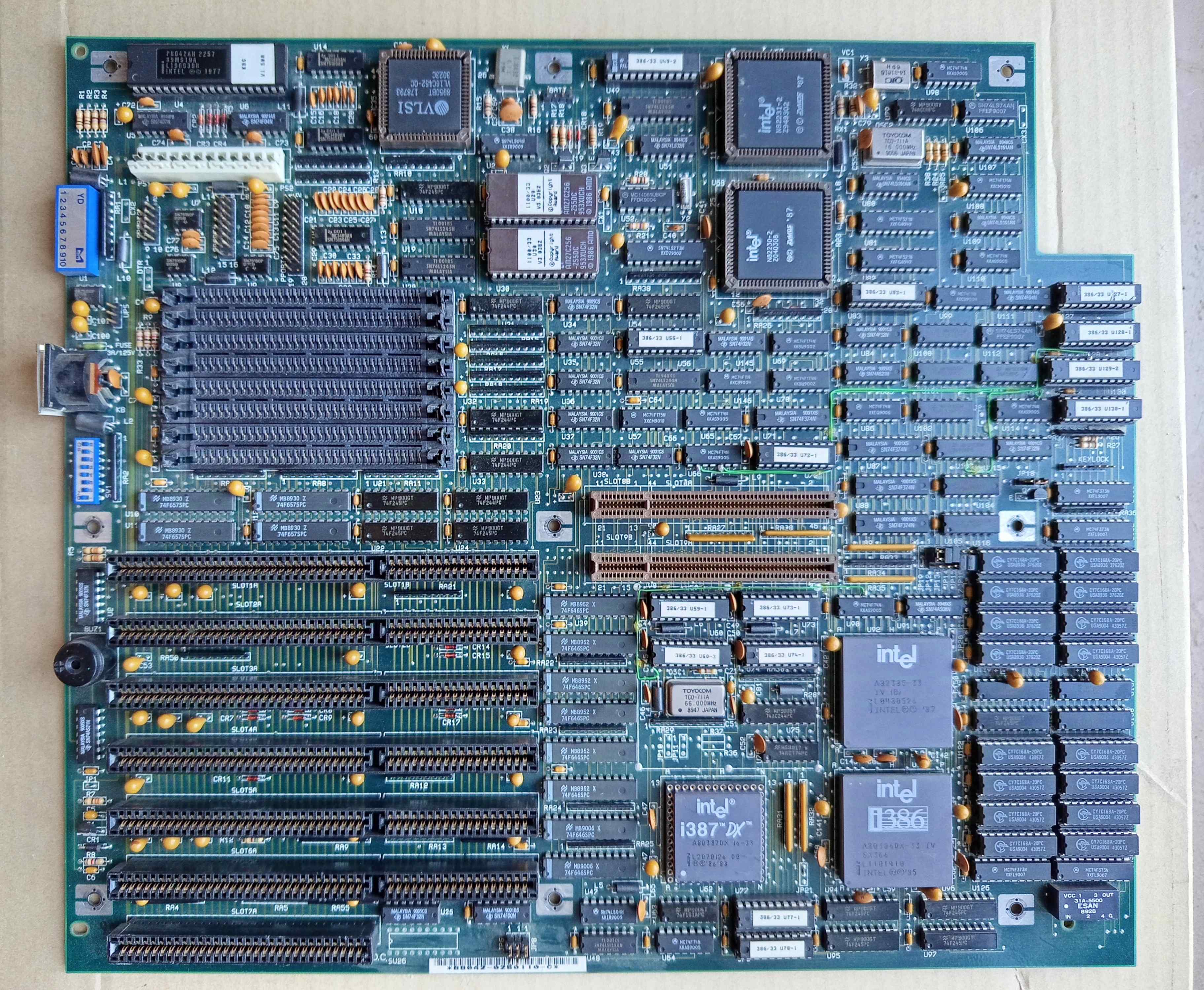

Image 1 of 3 (Microhouse)

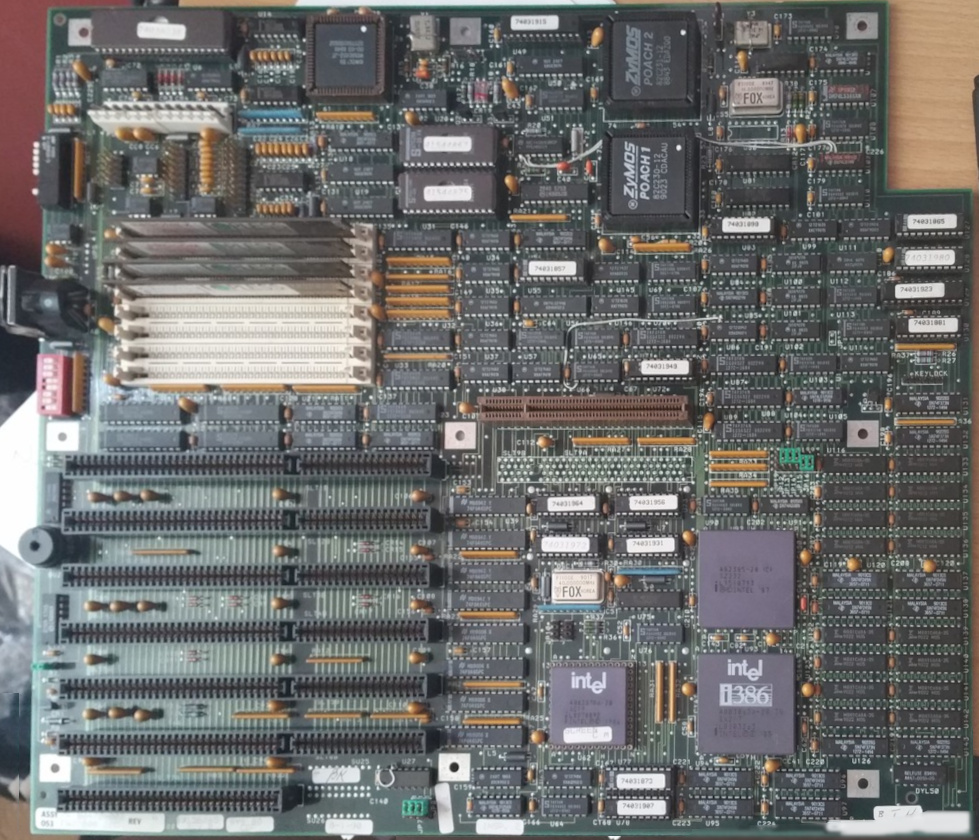

Image 2 of 3 (Alexei)
Image 3 of 3 (tikoellner)
