Acer B1
Logs
chipChipset
cpuSocket
Socket 3 (PGA237)
speedFSB speeds
25MHz33MHz
moboForm factor
LPX (max 229 x 330 mm)
dimDimensions
Empty
ramMax VRAM size
1MB
chipCache
None/Integrated in the CPU
ramMax RAM size
32MB
ramRAM type
72-pin FPM
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
tag Also known as
connI/O ports
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
1x
TV-Out
1x
VGA
cardExpansion slots
Empty
wrench Known issues
  • Expansion slots are on proprietary riser

The listed slots are on the riser card that came with the motherboard.
If you have this board make sure you have the riser for it.

Last updated 2025-06-24T20:01:37Z
Board info score is 5.9/10
chip Chips
-> Chipset part
ALi M1429 ALi M1431
-> Video
Cirrus Logic CL-GD5425
cpufam CPU family support
bios 0 BIOS files available
drv No drivers available
doc No board documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
1995-12
File
Logs
Family
Release date
1989-04
File
Logs
Family
Release date
1990
File
Logs
Family
Release date
1992-10
File
Logs
Family
Release date
1992-02
File
Logs

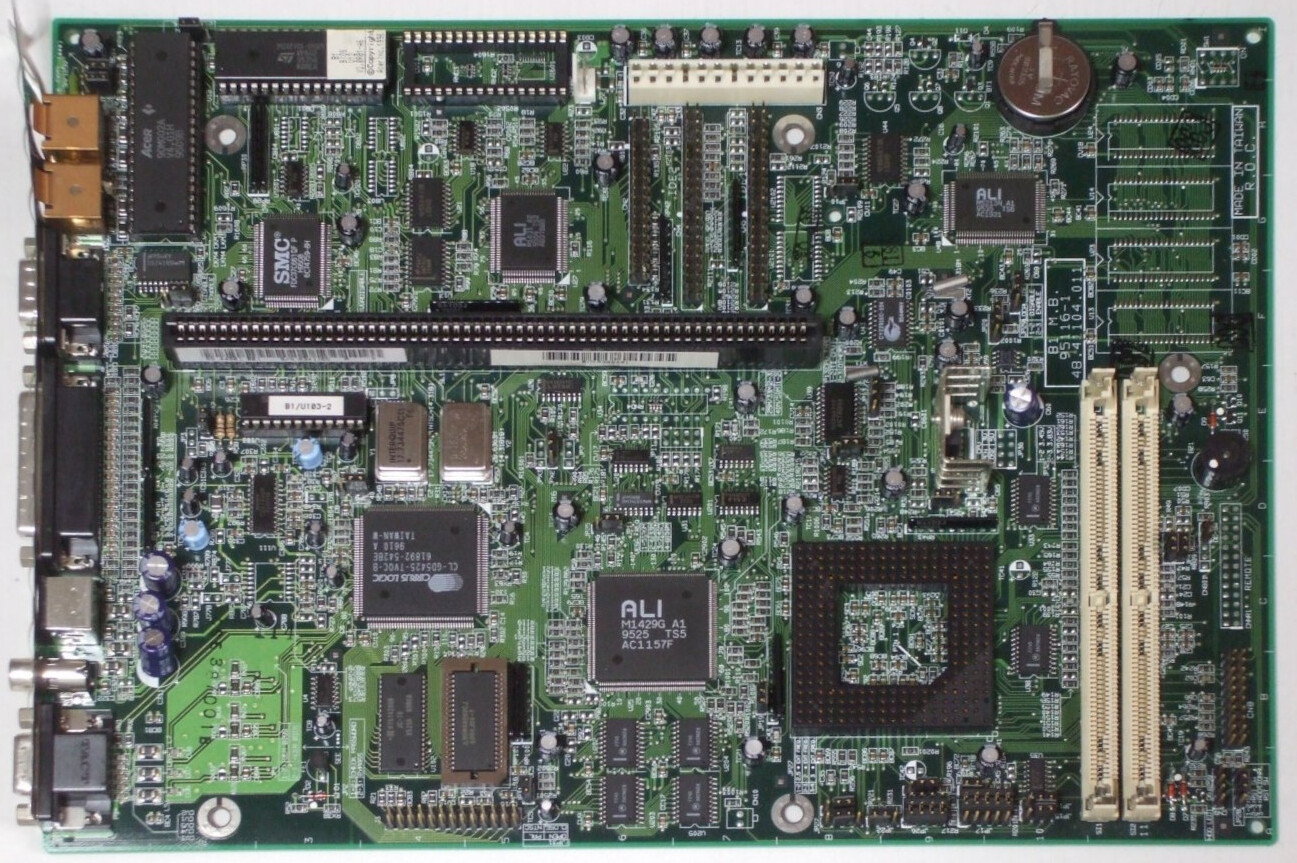

image1 Image 1 of 1 (Acer Motherboard Wiki FC2)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
