Acer A1GL
Logs
chipChipset
cpuSocket
Socket 1 (PGA169)
speedFSB speeds
25MHz33MHz40MHz
moboForm factor
LPX (max 229 x 330 mm)
dimDimensions
330mm x 218mm
ramMax VRAM size
2MB
chipCache
128KB256KB
ramMax RAM size
36MB
ramRAM type
72-pin FPM
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
tag Also known as
  • Acer AcerMate 486
  • Acer 93113-2m / 48.41301.011
connI/O ports
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
1x
VGA
cardExpansion slots
Empty
wrench Known issues

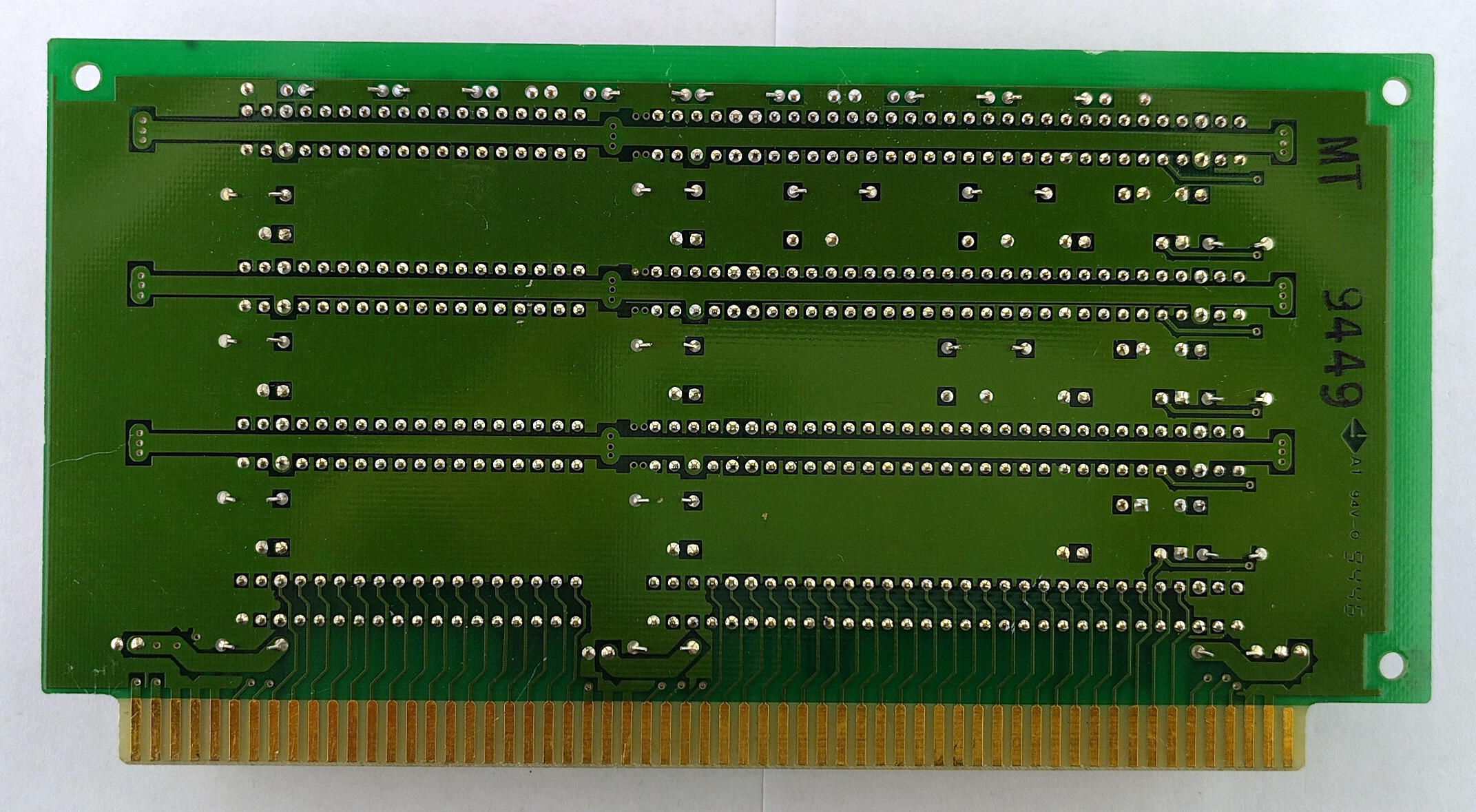

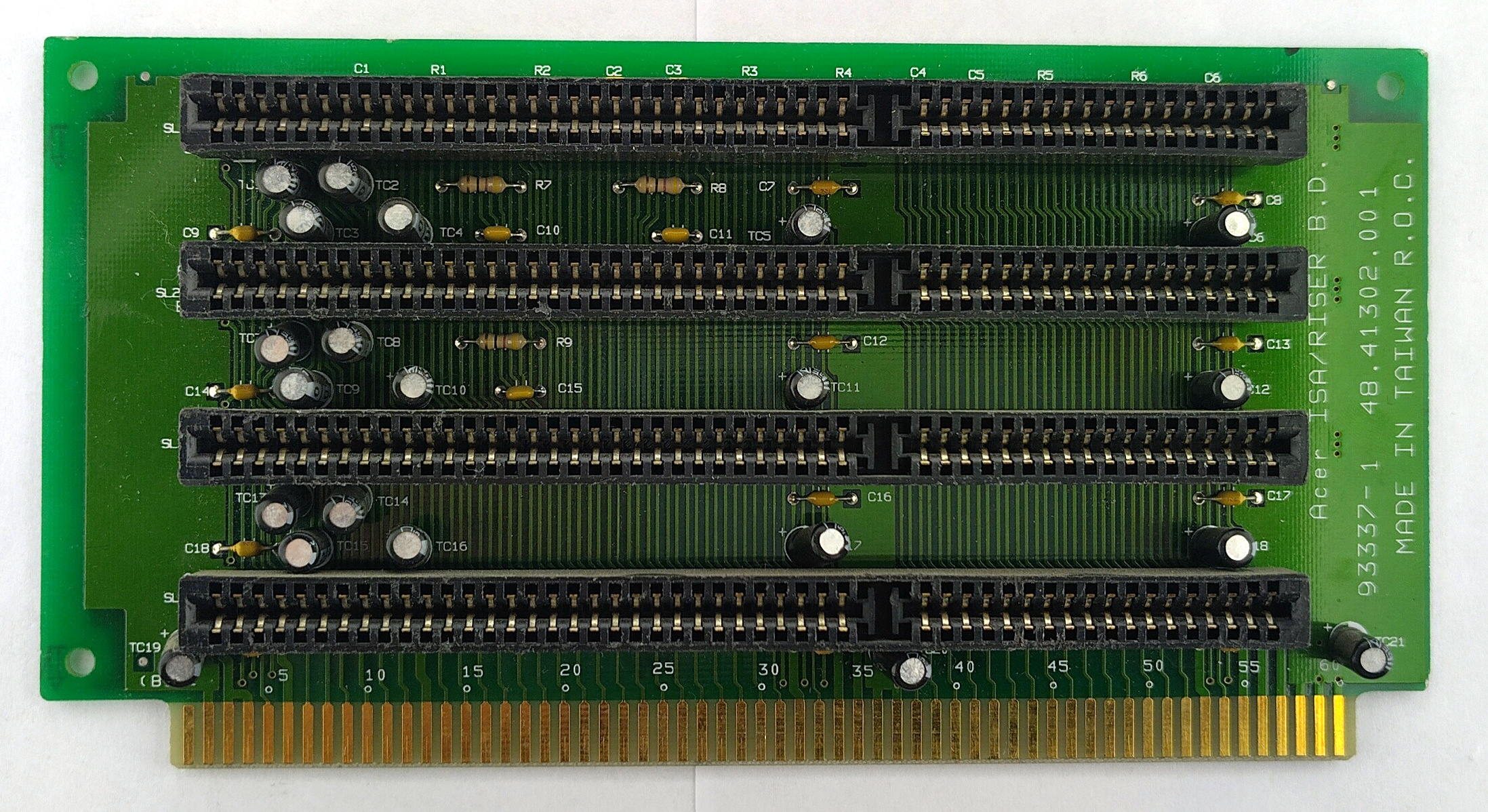

  • Expansion slots are on proprietary riser

The listed slots are on the riser card that came with the motherboard.
If you have this board make sure you have the riser for it.

notes Notes

Has either Cirrus Logic CL-GD5424 or 5429 video chip. 4 MB of system memory is on-board, can be upgraded to 36 MB total.

Last updated 2025-10-22T19:34:12Z
Board info score is 7.8/10
chip Chips
-> Chipset part
ALi M1429 ALi M1431
-> Video
Cirrus Logic CL-GD5429 Cirrus Logic CL-GD5424
cpufam CPU family support
bios 0 BIOS files available
drv 4 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.43
OS support
MS-DOS Windows 3.1x
Arch
x86
Size
741.9KB
Filename
Name
Version
3.50
OS support
Windows NT 3.1 Windows NT 3.5x
Arch
x86
Size
140KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
1.4MB
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
600.3KB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
1995-12
File
Logs
Family
Release date
1989-04
File
Logs
Family
Release date
1990
File
Logs
Family
Release date
1992-10
File
Logs
Family
Release date
1992-02
File
Logs
image1 Image 1 of 5 (Microhouse)
image2 Image 2 of 5 (Harakhti)
image3 Image 3 of 5 (Harakhti)

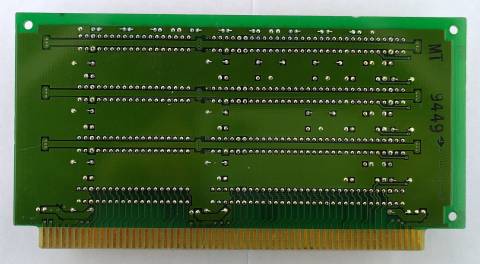

image4 Image 4 of 5 (Harakhti)
image5 Image 5 of 5 (Harakhti)
