Acer 910/900 PB87011-3

Description

Chips

BIOS 0

Drivers 0

Documentation 1

Logs

Chipset

CHIPS and Technologies CS8220 (PC/AT compatible CHIPSet)

Sockets

FSB speed

12.5MHz

Form factor

Baby AT (max 220 x 330 mm)

Dimensions

Empty

Cache

None/Integrated in the CPU

Max RAM size

1MB

RAM type

DIP-16 (1bit)

PSU connector

AT (6-pin P8 + 6-pin P9)

I/O ports

AT Keyboard

Expansion slots

16-bit ISA

8-bit ISA

Last updated 2025-12-24T08:25:16Z

Board info score is 7.7/10

Chips

-> Chipset part

CHIPS and Technologies 82A203 (High Address Buffer) CHIPS and Technologies 82A204 (Low Address Buffer) CHIPS and Technologies 82A205 (Data Buffer) CHIPS and Technologies 82C201 (System Controller) CHIPS and Technologies 82C202 (Address Decoder)

CPU family support

0 BIOS files available

No drivers available

1 board document available

Release date

File

Logs

Release date

File

Settings sheet

Logs

Image 1 of 5 (evasive)

Image 2 of 5 (andyld97)

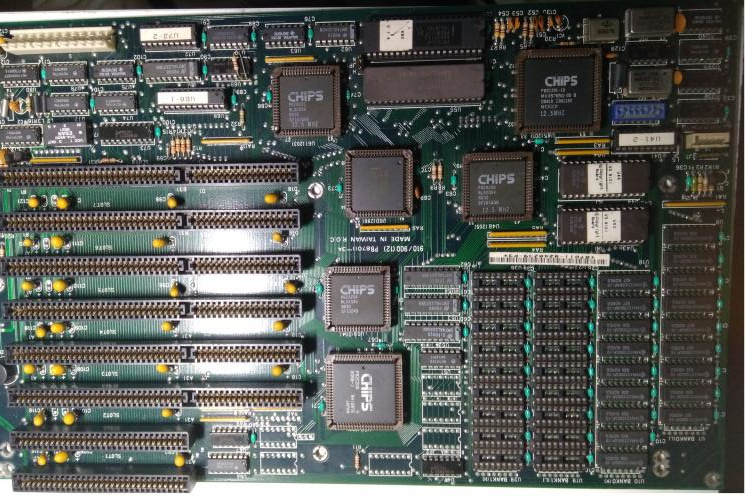

Image 3 of 5 (mdanh2002)

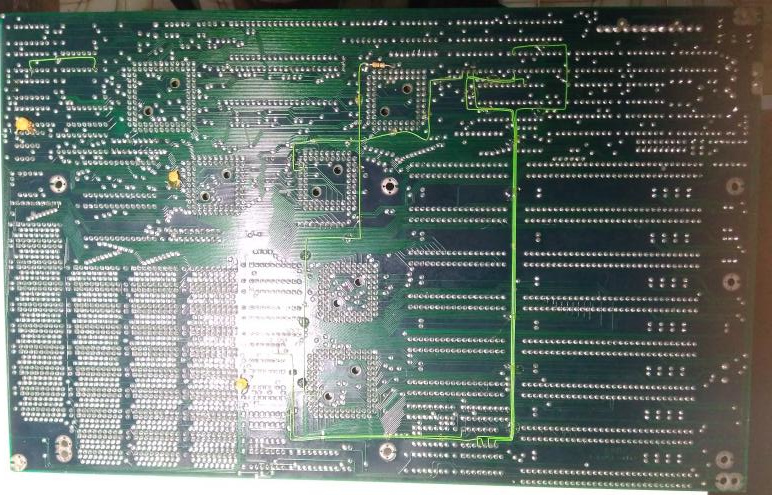

Image 4 of 5 (mdanh2002)

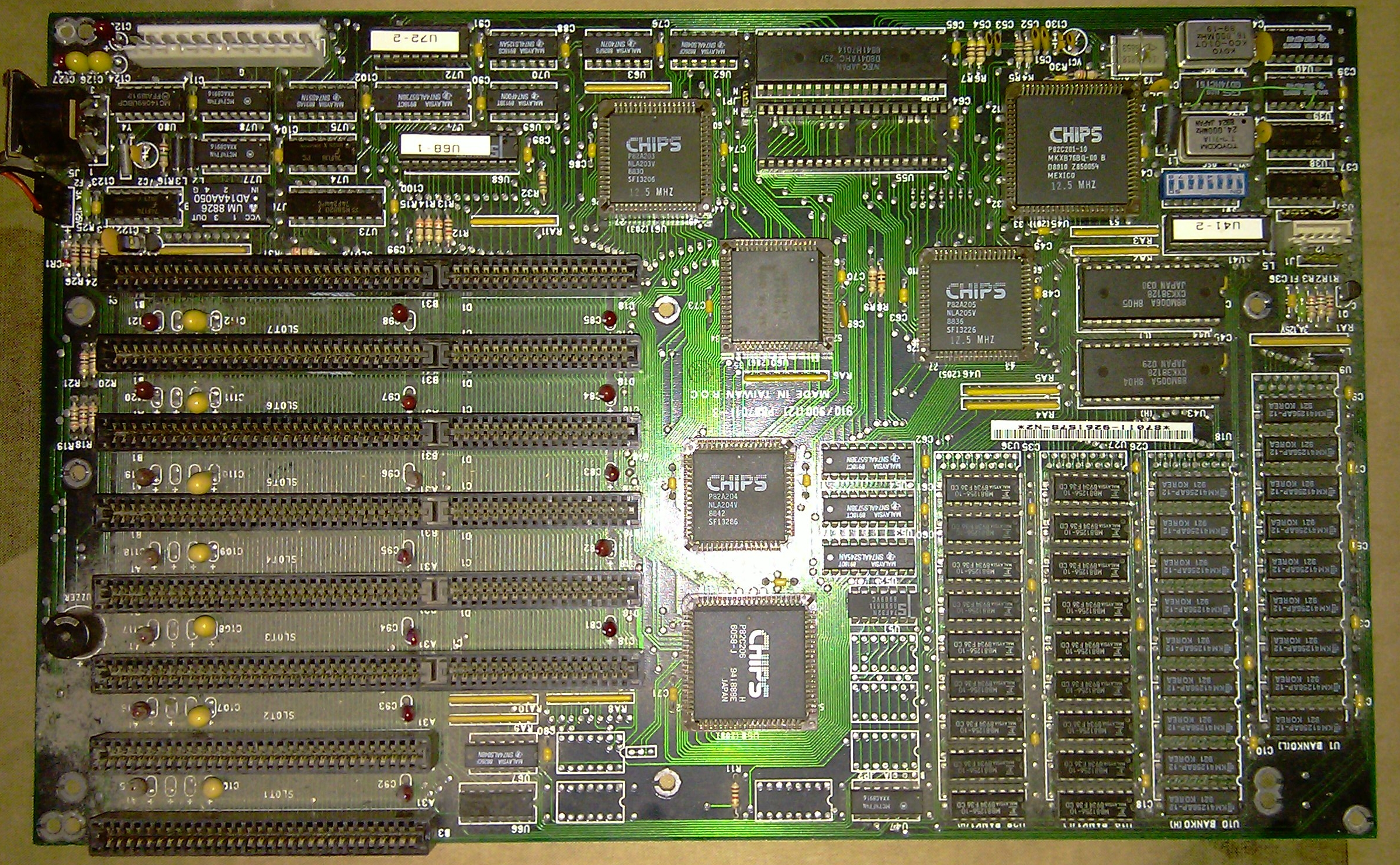

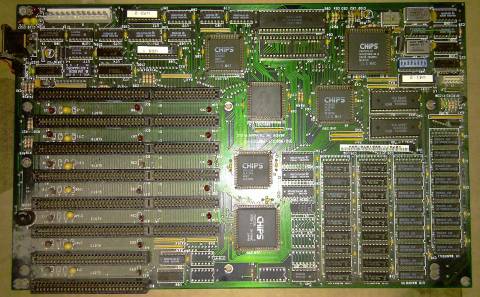

Image 5 of 5 (Cartouce)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
