ABit AX78
Logs
chipChipset
cpuSockets
Socket AM2 (mPGA940) Socket AM2+ (mPGA940)
speedFSB speed
Empty
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 245mm
chipCache
None/Integrated in the CPU
ramMax RAM size
8GB
ramRAM types
DDR2 UDIMMDDR2 UDIMM ECC
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)
connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
RJ-45 LAN
2x
S/PDIF
4x
SATA II
10x
USB 2.0
cardExpansion slots
3x
32-bit PCI
1x
PCIe x1
1x
PCIe x16
1x
PCIe x16 @ x4
Last updated 2025-07-08T10:06:08Z
Board info score is 9.4/10
bios 5 BIOS files available

vendor Award - 5 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
12/26/2008-AMD770-SB600-6A66AA1AC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
05/23/2008-AMD770-SB600-6A66AA1AC-13
Note
Core version
6.00PG
BIOS version
Logs
POST string
01/17/2008-AMD770-SB600-6A66AA1AC-12
Note
Core version
6.00PG
BIOS version
Logs
POST string
01/15/2008-AMD770-SB600-6A66AA1AC-11
Note
Core version
6.00PG
BIOS version
Logs
POST string
12/10/2007-AMD770-SB600-6A66AA1AC-10
Note
Core version
6.00PG
BIOS version
Logs
drv 2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
11.45.4.3
OS support
Windows 7 Windows 8.x Windows Vista Windows XP/2k3
Arch
x86 , x86-64
Size
1.8MB
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename
image1 Image 1 of 8 (ABit)
image2 Image 2 of 8 (ABit)
image3 Image 3 of 8 (Karbist)
image4 Image 4 of 8 (Karbist)
image5 Image 5 of 8 (ABit)
image6 Image 6 of 8 (ABit)

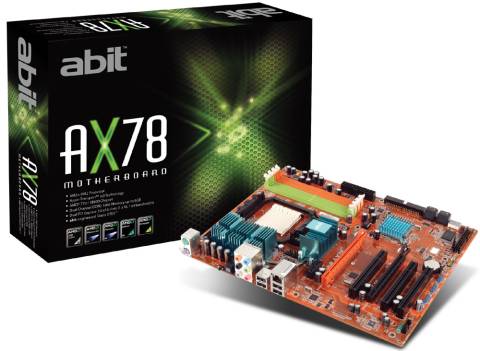

image7 Image 7 of 8 (ABit)
image8 Image 8 of 8 (ABit)
