ABit AW8D
Logs
chipChipset
cpuSocket
Socket T (LGA775)
speedFSB speeds
533MHz800MHz1066MHz
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
Empty
chipCache
None/Integrated in the CPU
ramMax RAM size
8GB
ramRAM type
DDR2
pwrPSU connector
Molex (4-pin) ATX 2.x (24-pin ATX)
tag Also known as
connI/O ports
2x
FireWire 400
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
RJ-45 LAN
6x
SATA II
8x
USB 2.0
cardExpansion slots
1x
32-bit PCI
2x
PCIe x1
1x
PCIe x16
1x
PCIe x16 @ x8
Last updated 2025-07-29T11:11:15Z
Board info score is 9.5/10
bios 4 BIOS files available

vendor Award - 4 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
12/07/2006-i975-W627EHG-6A79IA1BC-13
Note
Core version
6.00PG
BIOS version
Logs
POST string
06/07/2006-i975-W627EHG-6A79IA1BC-12
Note
Core version
6.00PG
BIOS version
Logs
POST string
03/20/2006-i975-W627EHG-6A79IA1BC-11
Note
Core version
6.00PG
BIOS version
Logs
POST string
01/17/2006-i975-W627EHG-6A79IA1BC-10
Note
Core version
6.00PG
BIOS version
Logs
drv 7 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
All Versions
OS support
Windows 7 Windows Vista Windows XP/2k3
Arch
x86
Size
33.9MB
Filename
Name
Version
All Versions
OS support
Windows 7 Windows Vista Windows XP/2k3
Arch
x86
Size
17.6MB
Filename
Name
Version
All Versions
OS support
Windows 7 Windows Vista Windows XP/2k3
Arch
x86
Size
164.3MB
Filename
Name
Version
N/A
OS support
MS-DOS
Arch
x86
Size
26.8KB
Filename
Name
Version
N/A
OS support
Windows XP/2k3
Arch
Size
26.8KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
Size
Empty
Filename
Version
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
2.4MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2005
File
Logs
Chip
Release date
2007-04
File
Logs
Chip
Release date
2005-04
File
Logs
Chip
Release date
2012-05
File
Logs
Chip
Release date
2007-02-23
File
Logs
Chip
Release date
2004-08-24
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2001-02
File
Logs
Family
Release date
2007-03
File
Logs
Family
Release date
2008-08
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2005-02
File
Logs
Family
Release date
2005-05
File
Logs
Family
Release date
2004-02
File
Logs
Family
Release date
2007-01
File
Logs
Family
Release date
2007-07
File
Logs
Family
Release date
File
Logs
Family
Release date
2001-10
File
Logs
Family
Release date
2002-05
File
Logs
Family
Release date
File
Logs
Socket
Release date
File
Logs
Socket
Release date
2006-02
File
Logs
Socket
Release date
2004
File
Logs

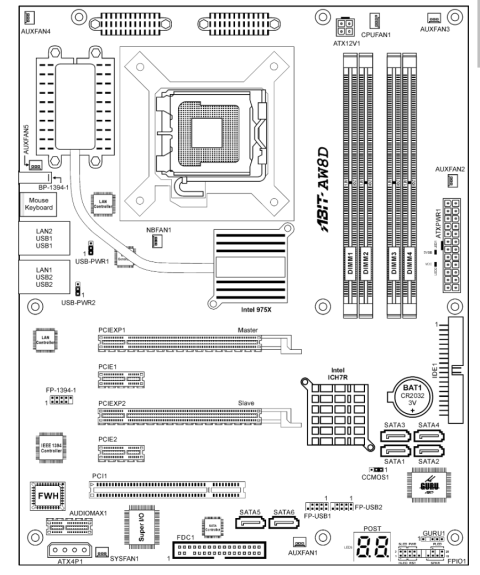

image1 Image 1 of 7 (ABit)
image2 Image 2 of 7 (ABit)
image3 Image 3 of 7 (ABit)
image4 Image 4 of 7 (ABit)

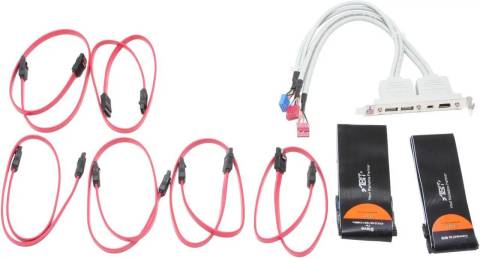

image5 Image 5 of 7 (ABit)
image6 Image 6 of 7 (ABit)
image7 Image 7 of 7 (ABit)
