ABit AV8
Logs
chipChipset
cpuSocket
Socket 939 (mPGA939)
speedFSB speed
Empty
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 245mm
chipCache
None/Integrated in the CPU
ramMax RAM size
4GB
ramRAM type
DDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX) ATX P4 connector 12v (4-pin P4)
tag Also known as
connI/O ports
1x
3.5mm Audio Combo
3x
FireWire 400
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
SATA I
1x
Serial
2x
Toslink
8x
USB 2.0
cardExpansion slots
1x
1.5V AGP
5x
32-bit PCI
notes Notes

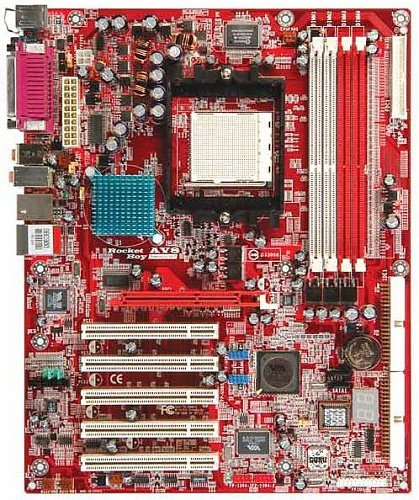

RocketBoy AV8 = 3rd Eye with different branding/color scheme + Red L.E.Ds

Last updated 2025-07-04T11:24:51Z
Board info score is 9.4/10
bios 14 BIOS files available

vendor Award - 14 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
05/17/2006-K8T800P-8237-6A7L1A19C-28
Note
Core version
6.00PG
BIOS version
Logs
POST string
02/23/2006-K8T800P-8237-6A7L1A19C-27
Note
Core version
6.00PG
BIOS version
Logs
POST string
11/08/2005-K8T800P-8237-6A7L1A19C-26
Note
Core version
6.00PG
BIOS version
Logs
POST string
07/28/2005-K8T800P-8237-6A7L1A19C-24
Note
Core version
6.00PG
BIOS version
Logs
POST string
07/04/2005-K8T800P-8237-6A7L1A19C-22
Note
Core version
6.00PG
BIOS version
Logs
POST string
06/13/2005-K8T800P-8237-6A7L1A19C-21
Note
Core version
6.00PG
BIOS version
Logs
POST string
04/20/2005-K8T800P-8237-6A7L1A19C-20
Note
Core version
6.00PG
BIOS version
Logs
POST string
01/19/2005-K8T800P-8237-6A7L1A19C-19
Note
Core version
6.00PG
BIOS version
Logs
POST string
11/12/2004-K8T800P-8237-6A7L1A19C-17
Note
Core version
6.00PG
BIOS version
Logs
POST string
10/12/2004-K8T800P-8237-6A7L1A19C-16
Note
Core version
6.00PG
BIOS version
Logs
POST string
09/17/2004-K8T800P-8237-6A7L1A19C-15
Note
Core version
6.00PG
BIOS version
Logs
POST string
09/03/2004-K8T800P-8237-6A7L1A19C-14
Note
Core version
6.00PG
BIOS version
Logs
POST string
08/11/2004-K8T800P-8237-6A7L1A19C-13
Note
Core version
6.00PG
BIOS version
Logs
POST string
06/16/2004-K8T800P-8237-6A7L1A19C-12
Note
Core version
6.00PG
BIOS version
Logs
drv 10 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
All Versions
OS support
Windows 7 Windows Vista Windows XP/2k3
Arch
x86
Size
33.9MB
Filename
Name
Version
All Versions
OS support
Windows 7 Windows Vista Windows XP/2k3
Arch
x86
Size
17.6MB
Filename
Name
Version
All Versions
OS support
Windows 7 Windows Vista Windows XP/2k3
Arch
x86
Size
164.3MB
Filename
Name
Version
A4.06
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
17.9MB
Filename
Name
Version
5.70d
OS support
Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
3.9MB
Filename
Name
Version
5.40A
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86 , x86-64
Size
10.8MB
Filename
Name
Version
2.56
OS support
Windows 2000 Windows 9x
Arch
x86
Size
13.1MB
Filename
Name
Version
V5.50b
OS support
Windows 2000 Windows NT 4.0 Windows Vista Windows XP/2k3
Arch
x86
Size
392.3KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
Size
12.7MB
Filename
Version
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
1.4MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2001-10-30
File
Logs
Chip
Release date
2002-07-19
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2004-12-15
File
Logs
Chip
Release date
2006-06-09
File
Logs
Chip
Release date
1998-09-25
File
Logs
Chip
Release date
File
Logs

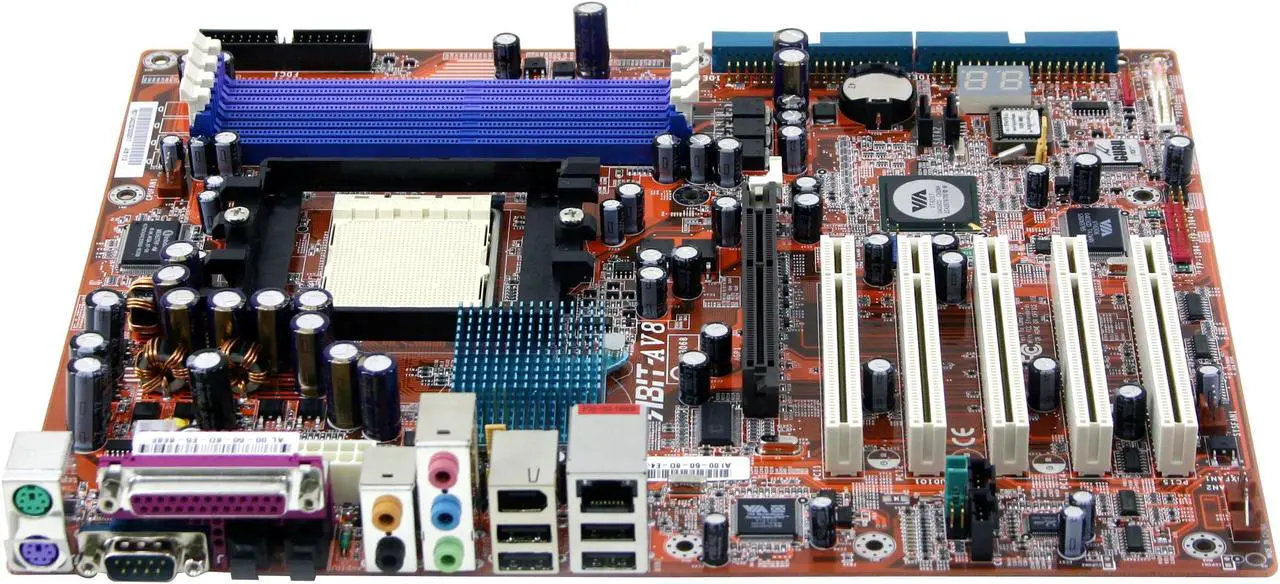

image1 Image 1 of 12 (ABit)

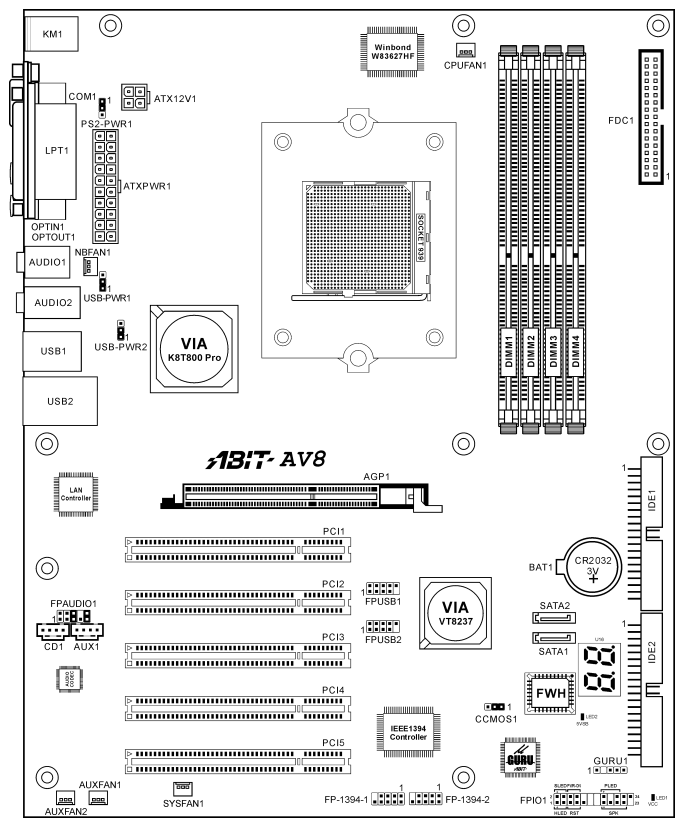

image2 Image 2 of 12 (Motherboard Continuum)

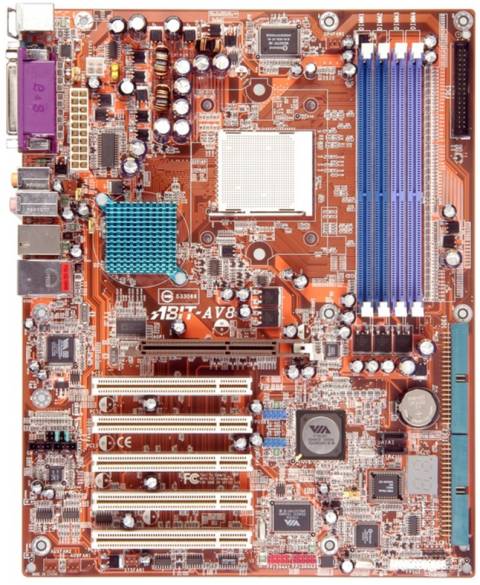

image3 Image 3 of 12 (ABit)

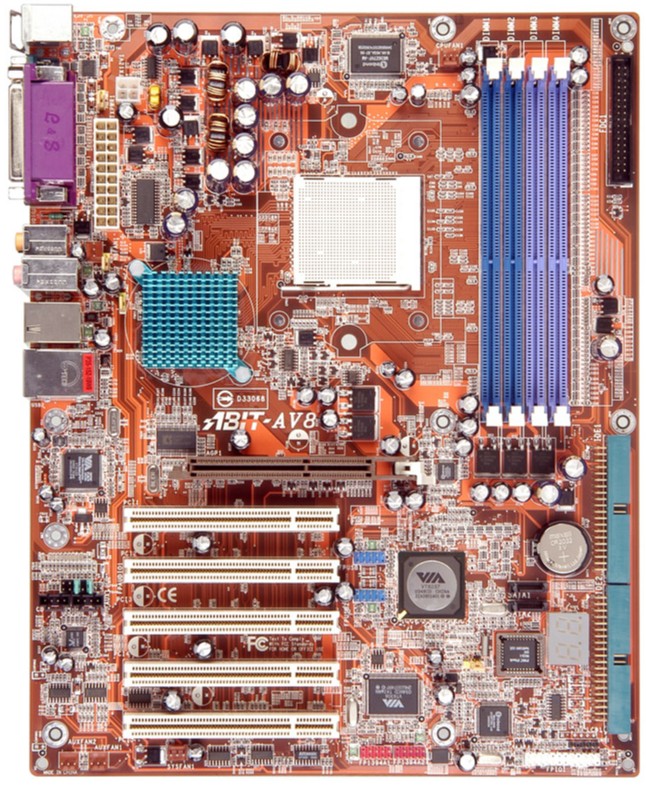

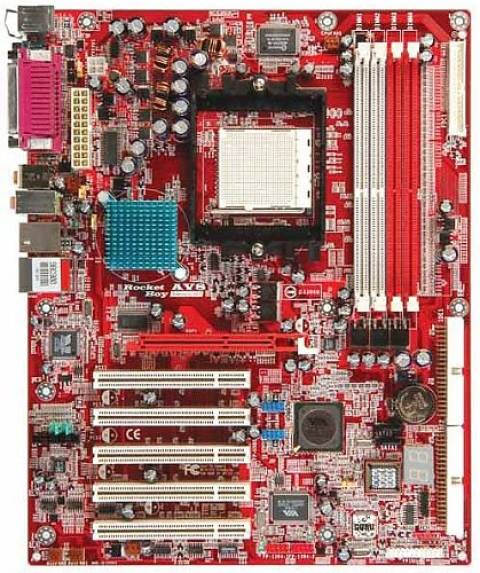

image4 Image 4 of 12 (soggi)

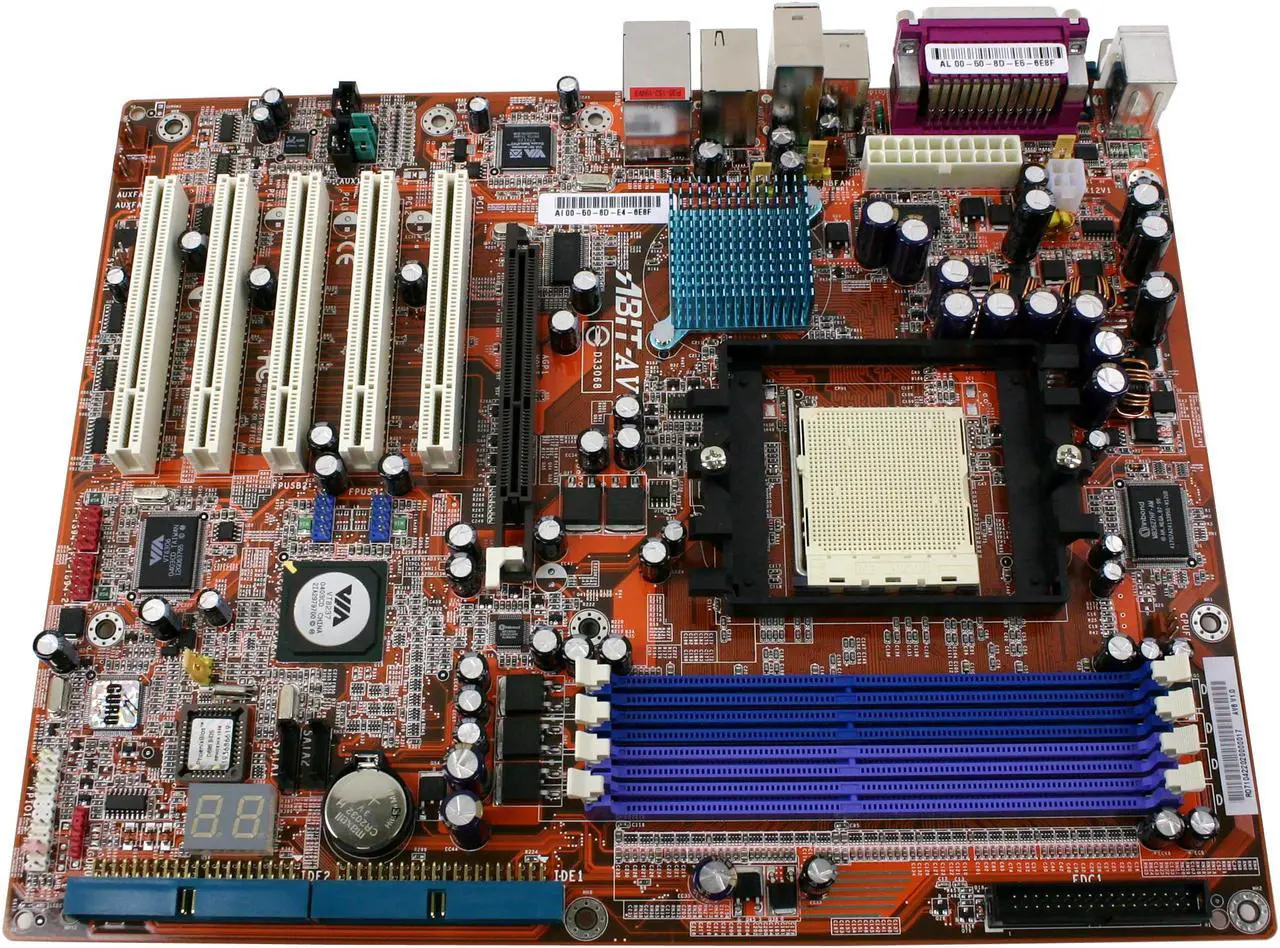

image5 Image 5 of 12 (Motherboard Continuum)

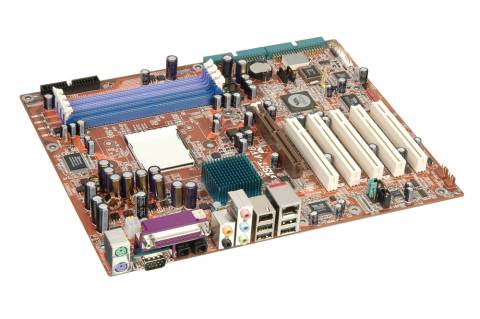

image6 Image 6 of 12 (ABit)

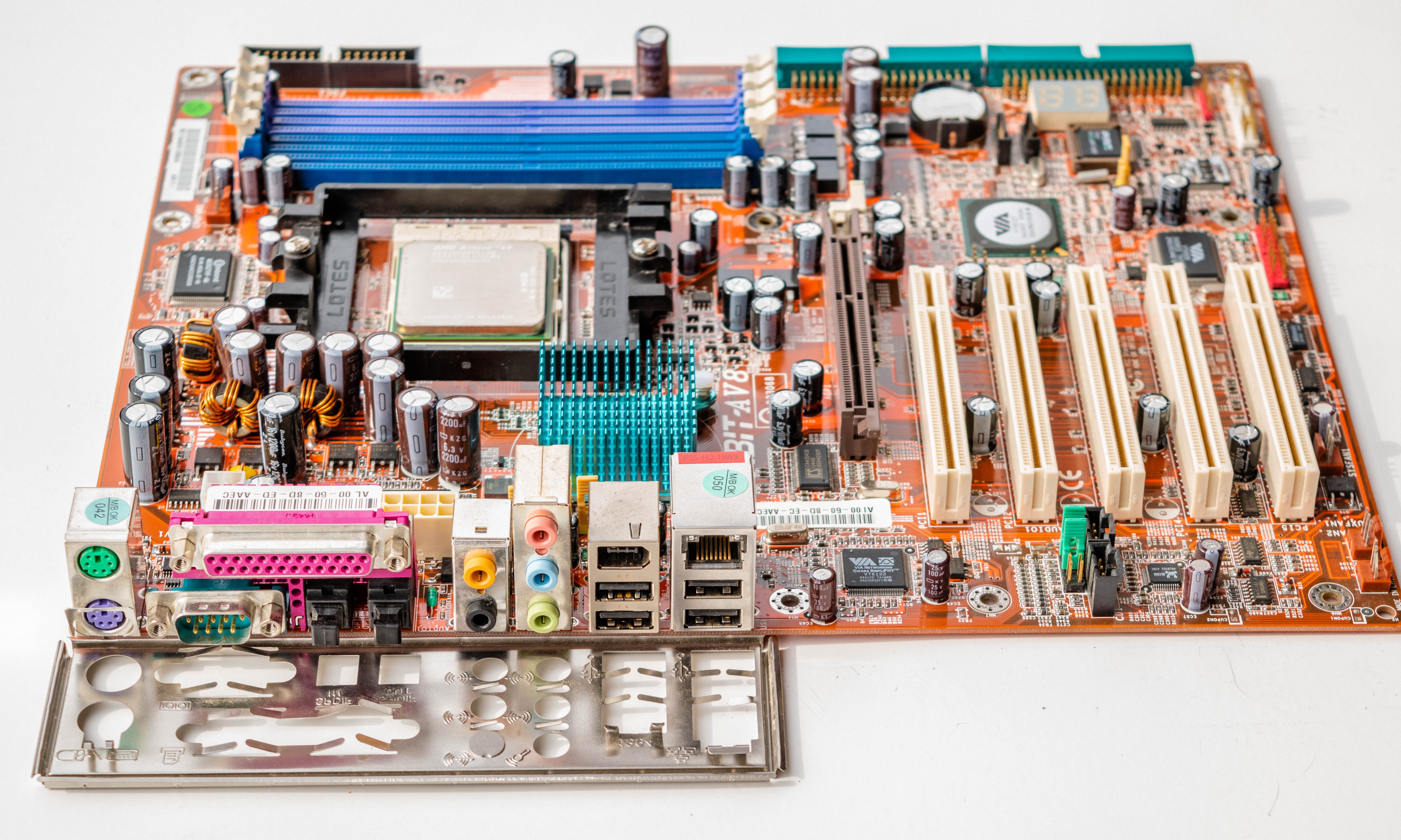

image7 Image 7 of 12 (ABit)
image8 Image 8 of 12 (ABit)
image9 Image 9 of 12 (Motherboard Continuum)

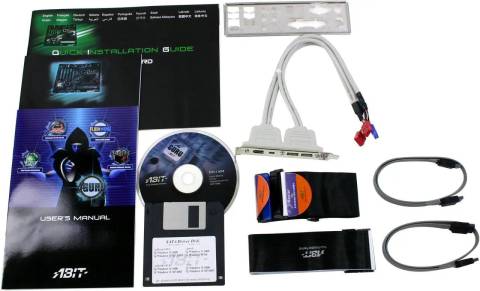

image10 Image 10 of 12 (ABit)
image11 Image 11 of 12 (ABit)
image12 Image 12 of 12 (ABit)
