ABit AS8
Logs
chipChipset
cpuSocket
Socket T (LGA775)
speedFSB speeds
533MHz800MHz
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 245mm
chipCache
None/Integrated in the CPU
ramMax RAM size
4GB
ramRAM type
DDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX) ATX P4 connector 12v (4-pin P4)
tag Also known as

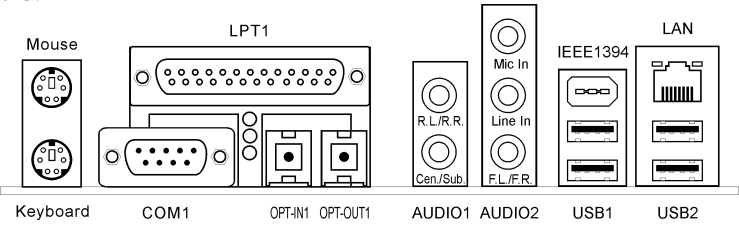

connI/O ports
1x
3.5mm Audio Combo
3x
FireWire 400
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
1x
S/PDIF
2x
SATA I
8x
USB 2.0
cardExpansion slots
1x
1.5V AGP
4x
32-bit PCI
Last updated 2025-07-31T11:44:20Z
Board info score is 9.8/10
bios 6 BIOS files available

vendor Award - 6 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
07/22/2005-i865PE-W83627-6A79AA1MC-18
Note
Core version
v6.00PG
BIOS version
Logs
POST string
01/21/2005-i865PE-W83627-6A79AA1MC-17
Note
Core version
6.00PG
BIOS version
Logs
POST string
10/12/2004-i865PE-W83627-6A79AA1MC-16
Note
Core version
6.00PG
BIOS version
Logs
POST string
08/18/2004-i865PE-W83627-6A79AA1MC-15
Note
Core version
v6.00PG
BIOS version
Logs
POST string
06/28/2004-i865PE-W83627-6A79AA1MC-11
Note
Core version
v6.00PG
BIOS version
Logs
POST string
04/28/2004-i865PE-W83627-6A79AA1MC-10
Note
Core version
v6.00PG
BIOS version
Logs
drv 8 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
All Versions
OS support
Windows 7 Windows Vista Windows XP/2k3
Arch
x86
Size
33.9MB
Filename
Name
Version
All Versions
OS support
Windows 7 Windows Vista Windows XP/2k3
Arch
x86
Size
17.6MB
Filename
Name
Version
All Versions
OS support
Windows 7 Windows Vista Windows XP/2k3
Arch
x86
Size
164.3MB
Filename
Name
Version
A4.06
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
17.9MB
Filename
Name
Version
V5.00
OS support
MS-DOS Mac OS X NetWare Server 3 NetWare Server 4 Netware Client32 SCO Unix - OpenServer Windows 2000 Windows 3.1x Windows 9x Windows NT 3.5x Windows NT 4.0
Arch
x86 , PPC
Size
3.3MB
Filename
Name
Version
1.0
OS support
MS-DOS Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
490.9KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
2.4MB
Filename
Version
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
Empty
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2003-04
File
Logs
Chip
Release date
2003-05
File
Logs
Chip
Release date
2004-02
File
Logs
Chip
Release date
2003-09
File
Logs
Chip
Release date
2004-03
File
Logs
Chip
Release date
2003-09
File
Logs
Chip
Release date
2004-02
File
Logs
Chip
Release date
2004-11-05
File
Logs
Chip
Release date
2003-02
File
Logs
Chip
Release date
2006-06-09
File
Logs
Chip
Release date
1998-09-25
File
Logs
Chip
Release date
2005-04-18
File
Logs
Family
Release date
File
Logs
Family
Release date
2001-02
File
Logs
Family
Release date
2007-03
File
Logs
Family
Release date
2008-08
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2005-02
File
Logs
Family
Release date
2005-05
File
Logs
Family
Release date
2004-02
File
Logs
Family
Release date
2007-01
File
Logs
Family
Release date
2007-07
File
Logs
Family
Release date
File
Logs
Family
Release date
2001-10
File
Logs
Family
Release date
2002-05
File
Logs
Family
Release date
File
Logs
Socket
Release date
File
Logs
Socket
Release date
2006-02
File
Logs
Socket
Release date
2004
File
Logs

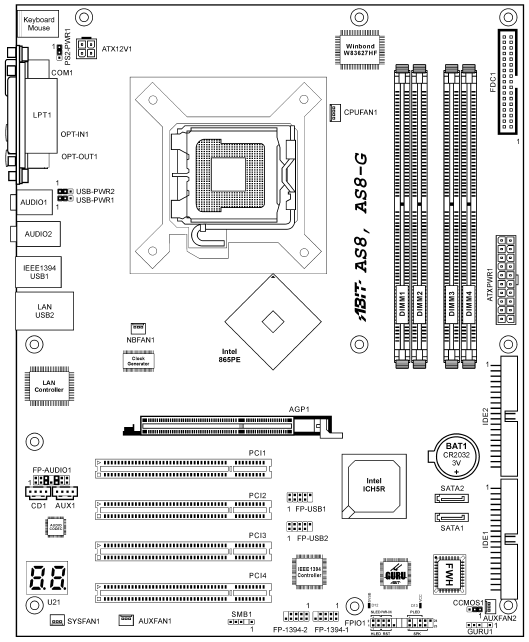

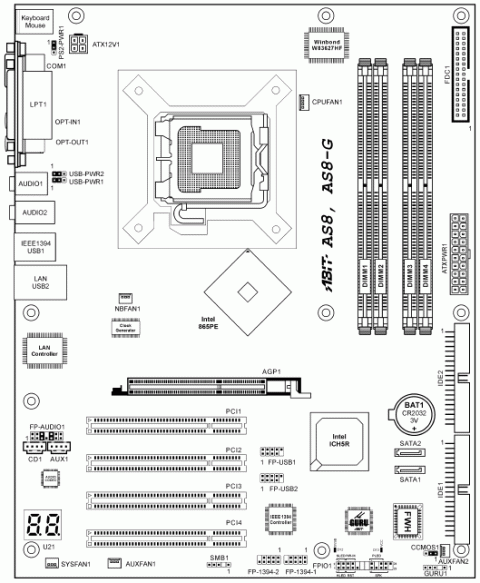

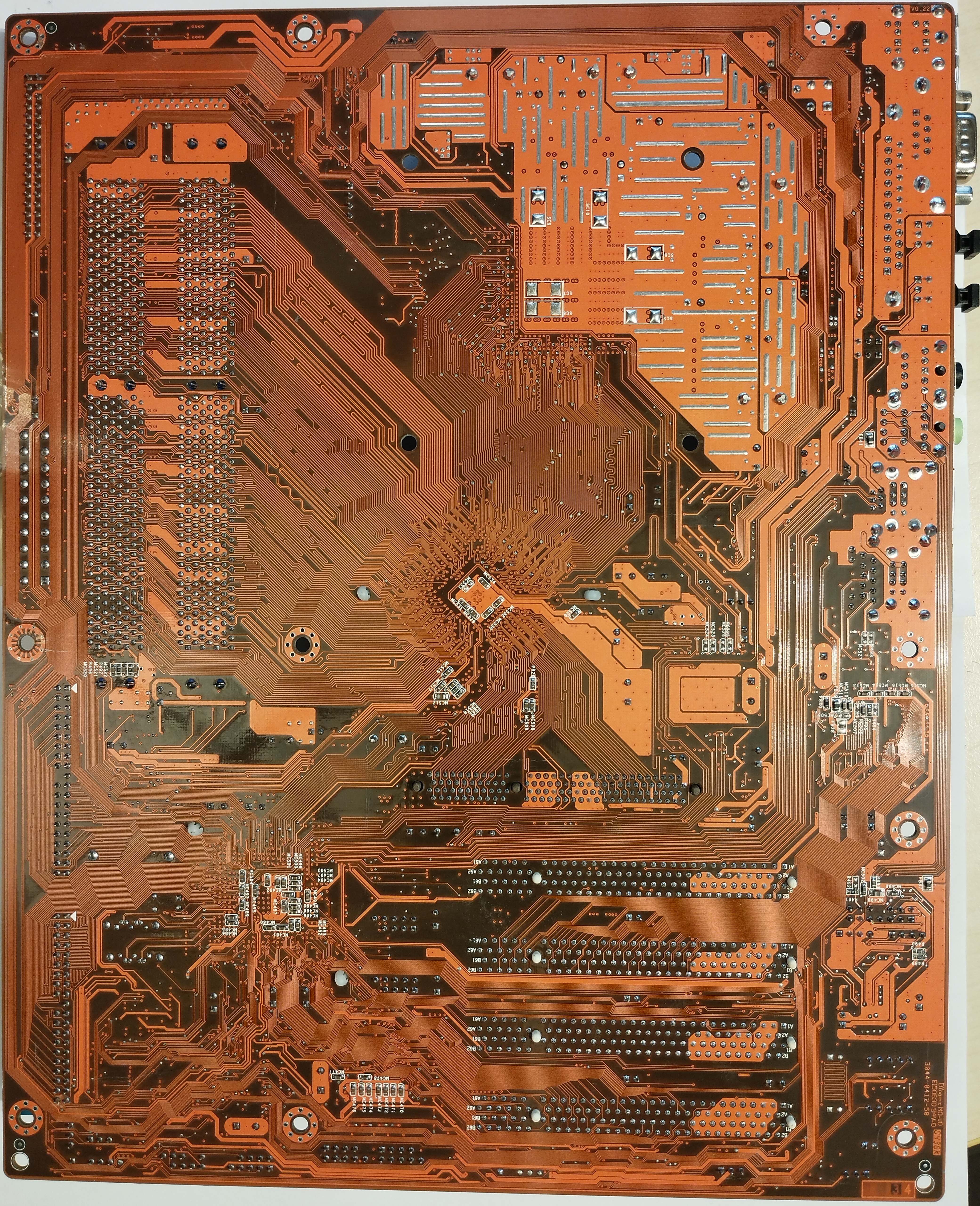

image1 Image 1 of 8 (evasive)
image2 Image 2 of 8 (Eric Voirin (oerg866))
image3 Image 3 of 8 (Eric Voirin (oerg866))
image4 Image 4 of 8 (ABit)
image5 Image 5 of 8 (ABit)

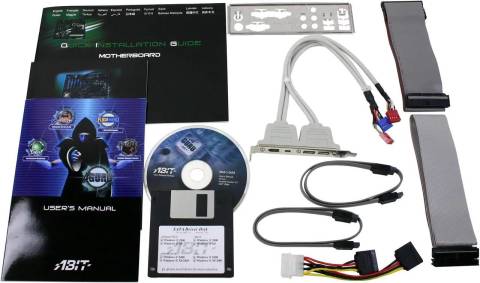

image6 Image 6 of 8 (ABit)
image7 Image 7 of 8 (ABit)
image8 Image 8 of 8 (ABit)
