ABit AN78GV
Logs
chipChipset
cpuSockets
Socket AM2 (mPGA940) Socket AM2+ (mPGA940)
speedFSB speed
Empty
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
Empty
ramMax VRAM size
512MB
chipCache
None/Integrated in the CPU
ramMax RAM size
16GB(DDR2-1066)
ramRAM type
DDR2 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)
connI/O ports
1x
3.5mm Audio Combo
1x
DVI
2x
FireWire 400
1x
Floppy interface
1x
HDMI
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
1x
S/PDIF
6x
SATA II
1x
Serial
12x
USB 2.0
1x
VGA
cardExpansion slots
3x
32-bit PCI
2x
PCIe x1
1x
PCIe x16
Last updated 2025-07-08T09:59:27Z
Board info score is 7.3/10
bios 2 BIOS files available

vendor Award - 2 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
12/12/2008-NF-MCP78-8A61OA1BC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
06/18/2008-NF-MCP78-8A61OA1BC-11
Note
Core version
6.00PG
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename
doc No board documents available
Chip
Release date
File
Logs
Chip
Release date
2006-04-25
File
Logs
Chip
Release date
2008-04-07
File
Logs
Chip
Release date
2008-01-10
File
Logs
Chip
Release date
2007-04-10
File
Logs
Chip
Release date
2007-01-31
File
Logs
Chip
Release date
2009-07-09
File
Logs

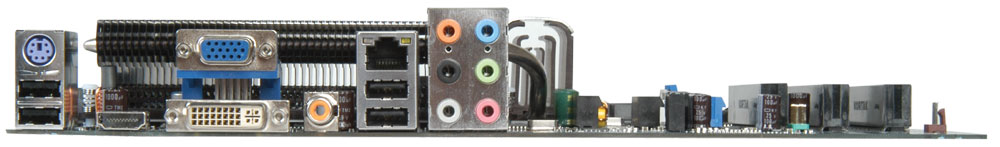

image1 Image 1 of 5 (ABit)

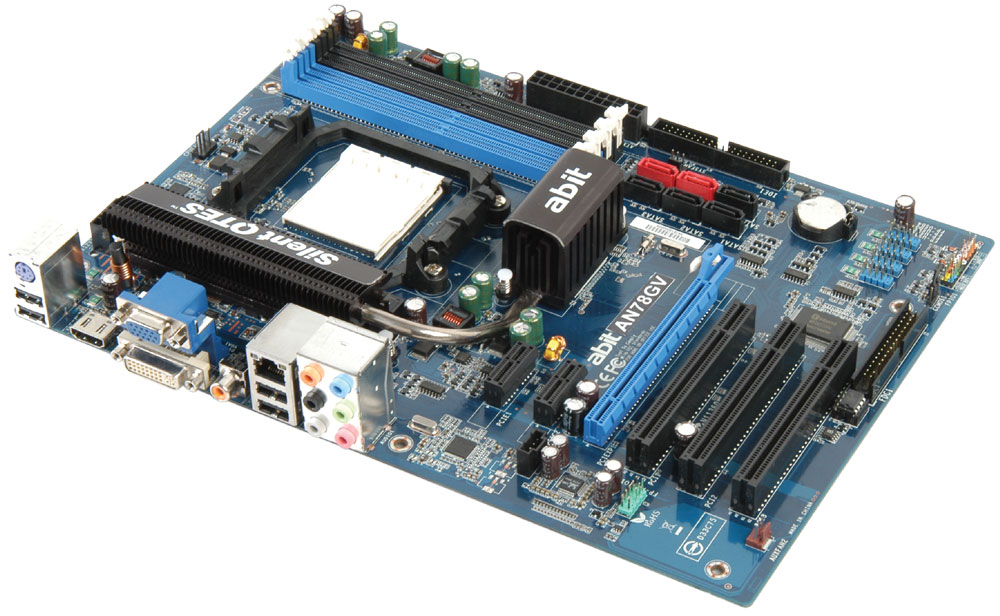

image2 Image 2 of 5 (ABit)

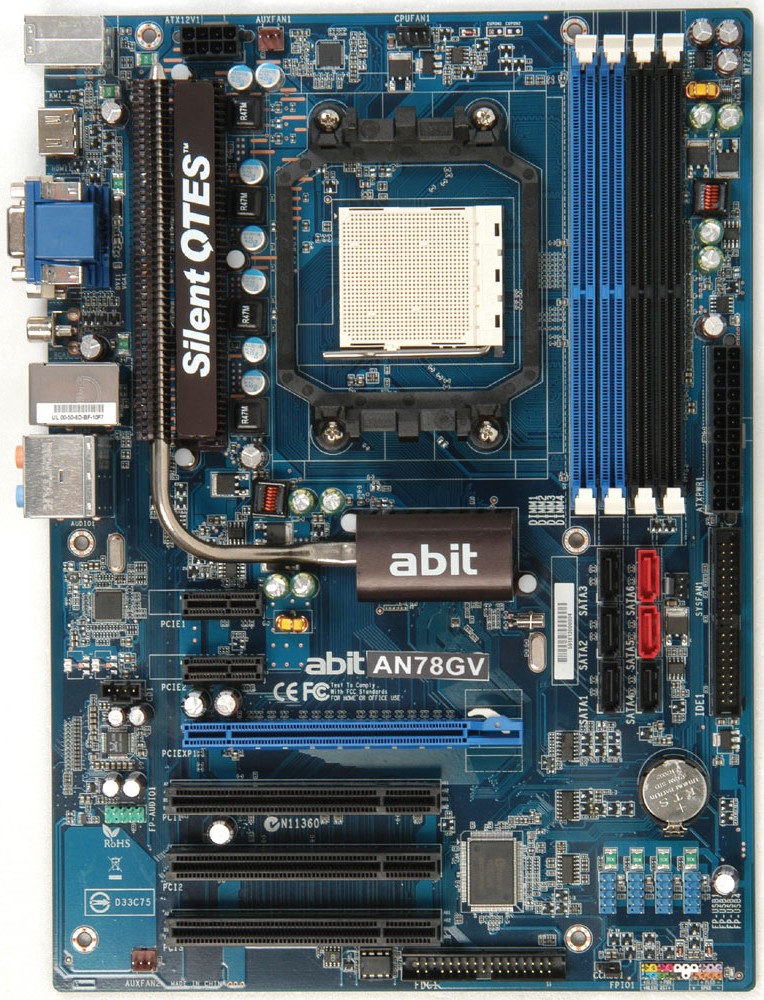

image3 Image 3 of 5 (ABit)
image4 Image 4 of 5 (ABit)
image5 Image 5 of 5 (ABit)
