ABit AN68SD
Logs
chipChipset
cpuSocket
Socket AM2 (mPGA940)
speedFSB speed
Empty
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
Empty
chipCache
None/Integrated in the CPU
ramMax RAM size
8GB
ramRAM type
DDR2 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)

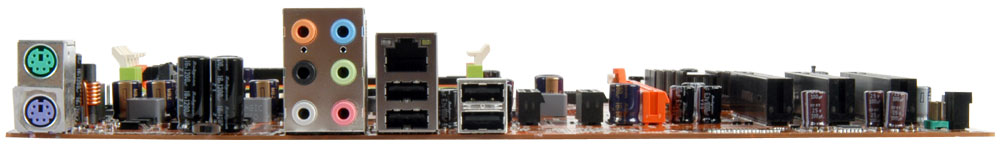

connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
RJ-45 LAN
4x
SATA II
10x
USB 2.0
cardExpansion slots
3x
32-bit PCI
2x
PCIe x1
1x
PCIe x16
Last updated 2025-07-08T10:35:19Z
Board info score is 7.6/10
bios 4 BIOS files available

vendor Award - 4 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
03/31/2008-NF-MCP68D-S-6A61MA1DC-13
Note
Core version
6.00PG
BIOS version
Logs
POST string
02/19/2008-NF-MCP68D-S-6A61MA1DC-12
Note
Core version
6.00PG
BIOS version
Logs
POST string
11/27/2007-NF-MCP68D-S-6A61MA1DC-11
Note
Core version
6.00PG
BIOS version
Logs
POST string
10/04/2007-NF-MCP68D-6A61MA1DC-10
Note
Core version
6.00PG
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
5.10.00.5010
OS support
Windows XP/2k3
Arch
x86
Size
6.7MB
Filename
doc No board documents available

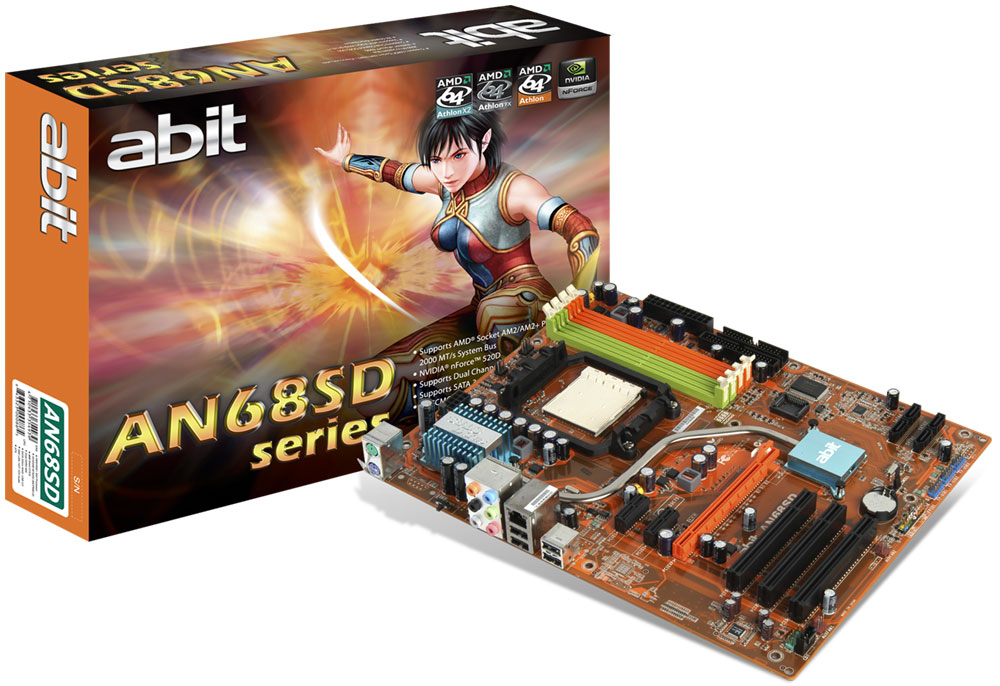

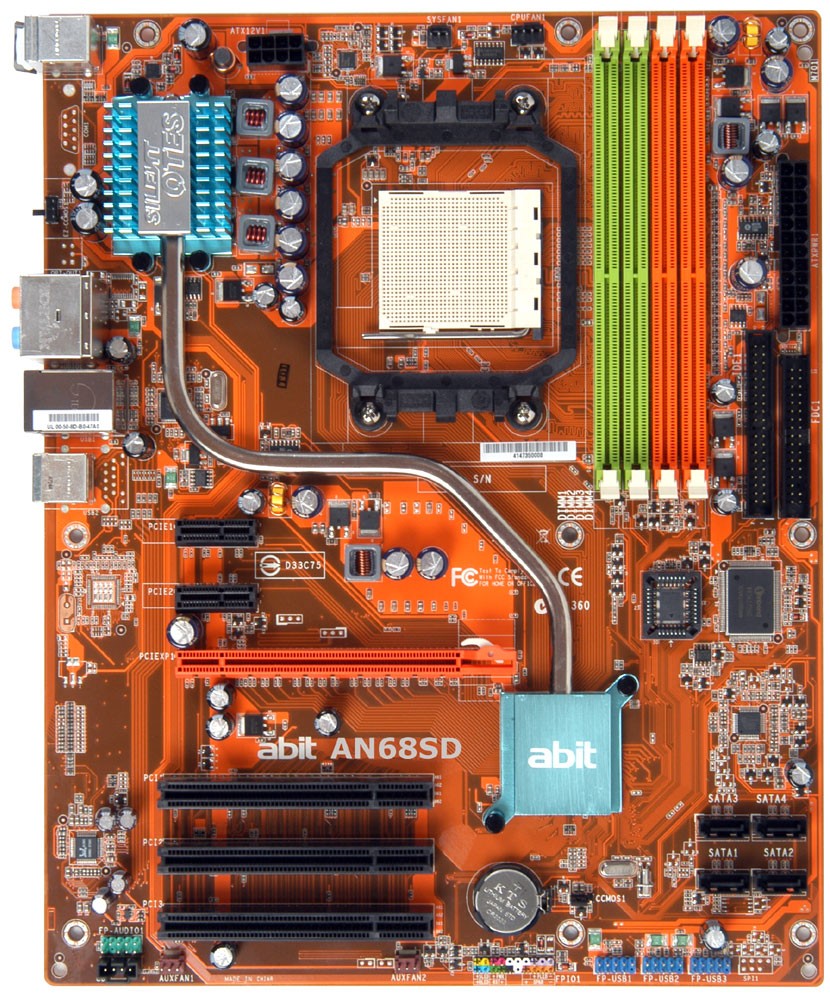

image1 Image 1 of 5 (ABit)
image2 Image 2 of 5 (ABit)
image3 Image 3 of 5 (ABit)
image4 Image 4 of 5 (ABit)
image5 Image 5 of 5 (ABit)
