ABit AB-NF8-V Pro
Chipset
Socket
FSB speed Empty
Form factorATX (max 305 x 244 mm)
Dimensions305mm x 244mm
Cache
None/Integrated in the CPU
Max RAM size
2GB
RAM type DDR UDIMM
PSU connector
Empty
I/O ports1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
1x
S/PDIF
1x
Serial
8x
USB 2.0
Expansion slots1x
1.5V AGP
5x
32-bit PCI
Last updated 2025-07-03T19:34:53Z
Board info score is 8.7/10
Chips
CPU family support
1 BIOS file available
Award - 1 entry
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
04/25/2006-NF3-250(GB)-6A61CA1AC-18
Note
see AB-NF8 for older revisions
Core version
6.00PG
BIOS version
Logs
9 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.008
OS support
Empty
Arch
x86
Size
2.2MB
Filename
Name
Version
All Versions
OS support
Windows 7
Windows Vista
Windows XP/2k3
Arch
x86
Size
33.9MB
Filename
Name
Version
All Versions
OS support
Windows 7
Windows Vista
Windows XP/2k3
Arch
x86
Size
17.6MB
Filename
Name
Version
All Versions
OS support
Windows 7
Windows Vista
Windows XP/2k3
Arch
x86
Size
164.3MB
Filename
Name
Version
A4.06
OS support
Windows 2000
Windows XP/2k3
Arch
x86
Size
17.9MB
Filename
Name
Version
1.08.5
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Arch
x86
Size
11.4MB
Filename
Name
Version
1.0
OS support
Windows 9x
Arch
x86
Size
406.4KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000
Windows XP/2k3
Arch
x86
Size
30.6MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
6.9MB
Filename
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs

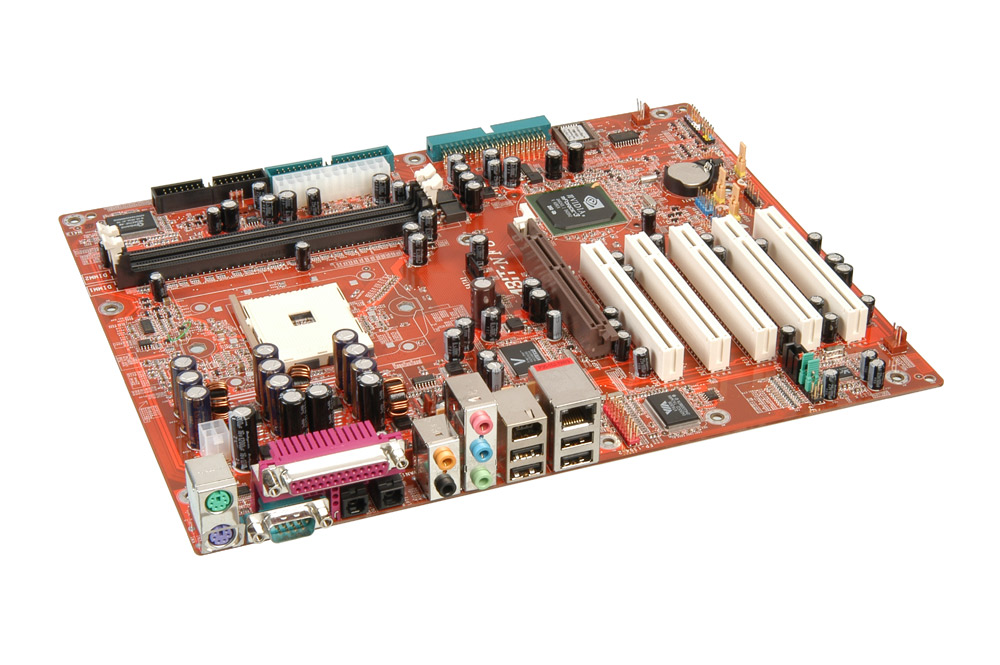

Image 1 of 5 (evasive)
Image 2 of 5 (ABit)

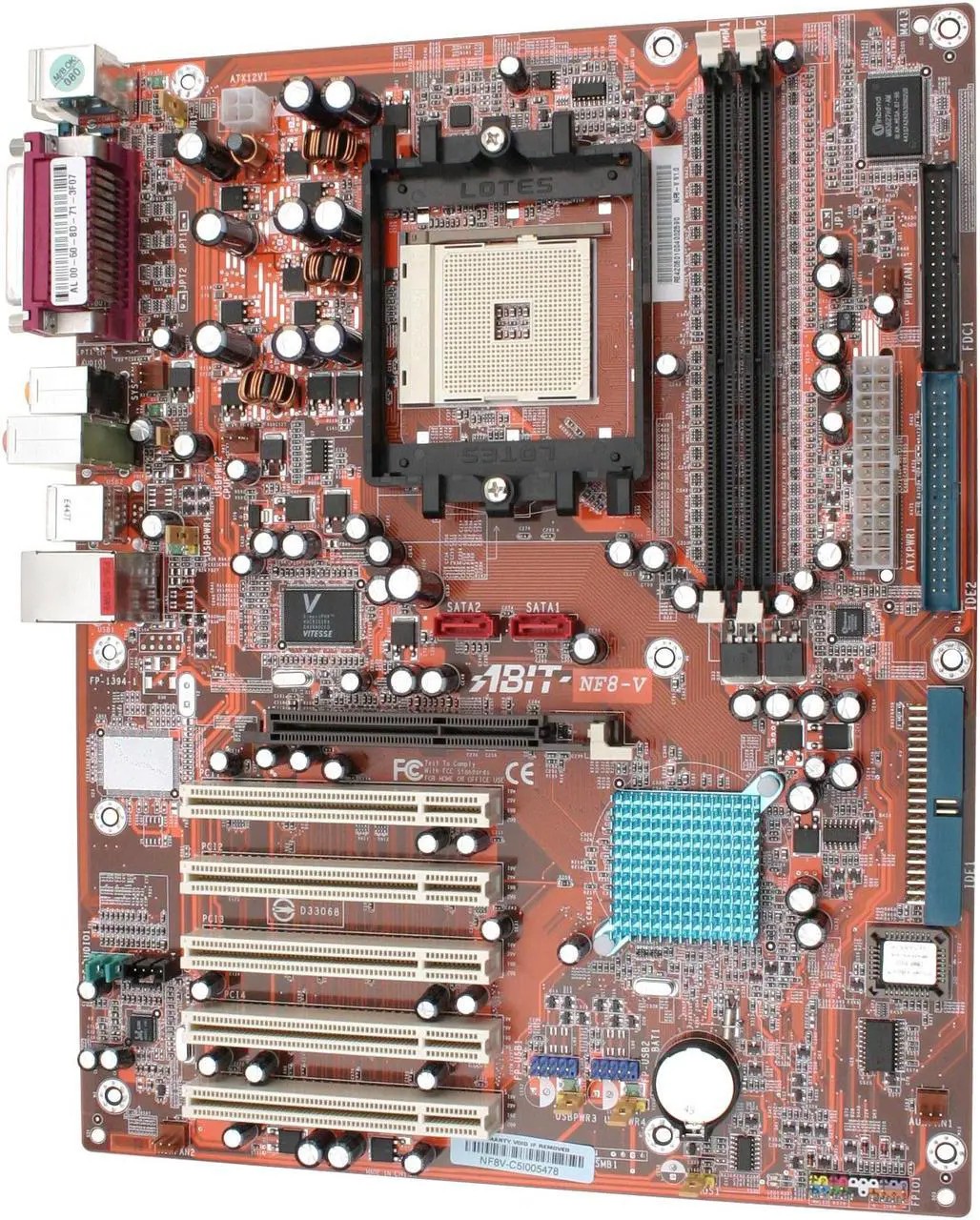

Image 3 of 5 (ABit)

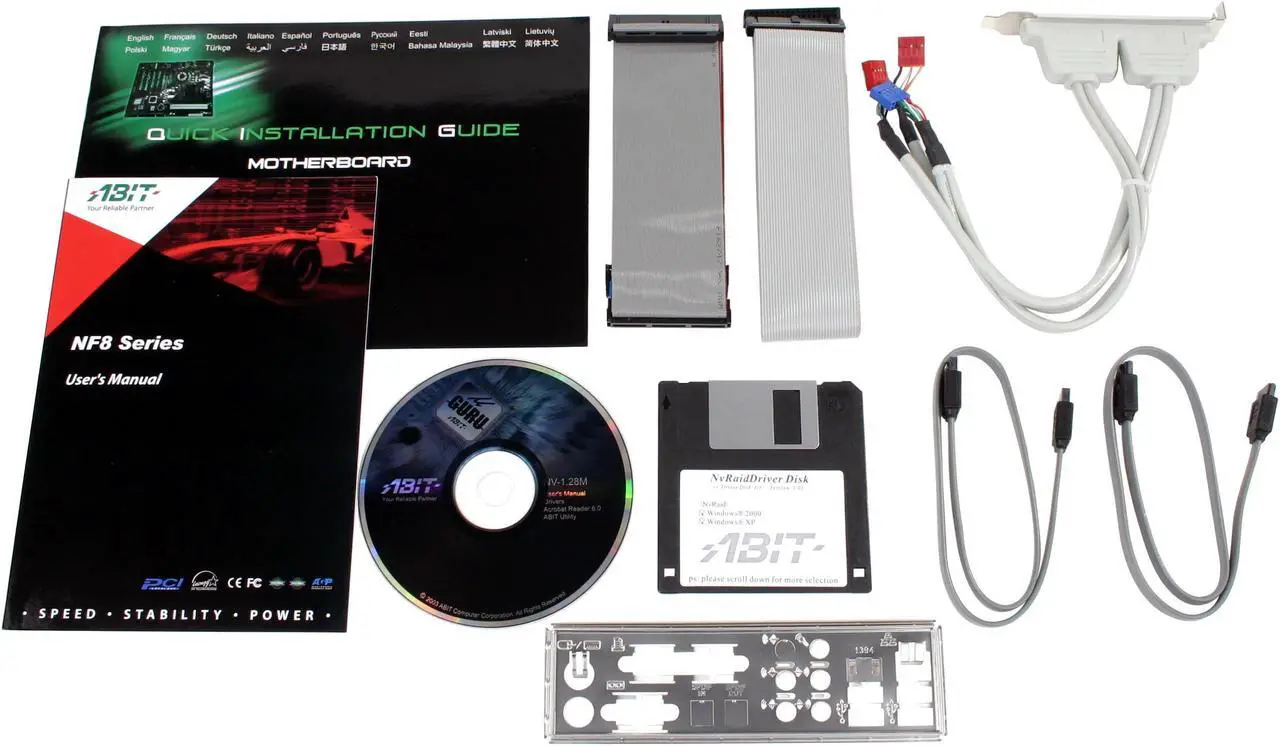

Image 4 of 5 (ABit)
Image 5 of 5 (ABit)
