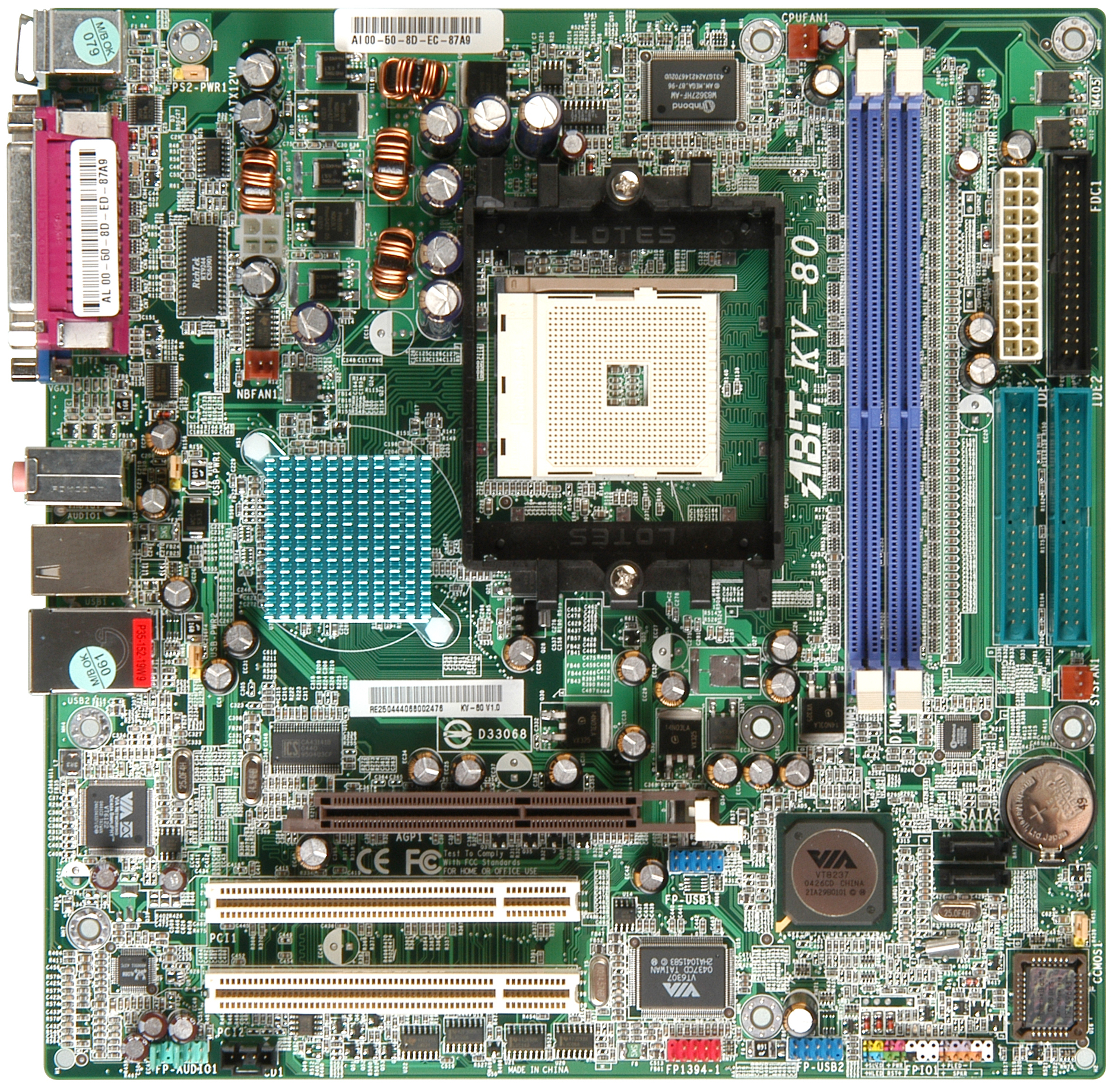

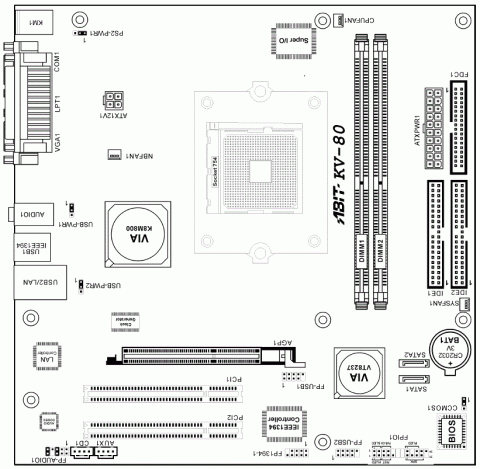

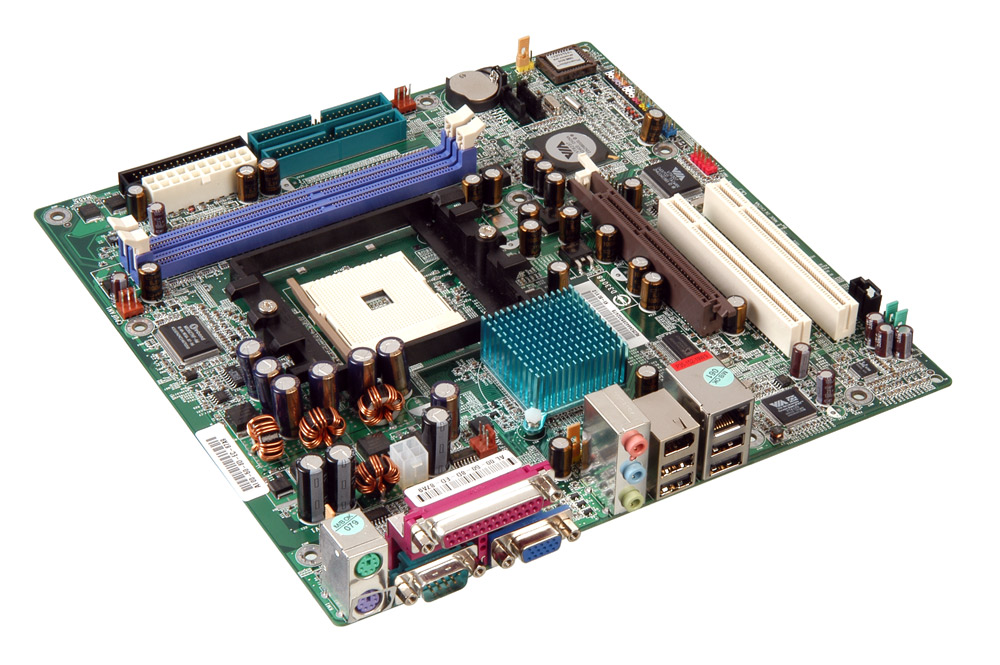

ABit AB-KV-80
Logs
chipChipset
cpuSocket
Socket 754 (mPGA754)
speedFSB speed
800MHz
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
244mm x 244mm
chipCache
None/Integrated in the CPU
ramMax RAM size
2GB
ramRAM type
DDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX) ATX P4 connector 12v (4-pin P4)
tag Also known as
connI/O ports
1x
3.5mm Audio Combo
2x
FireWire 400
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
SATA I
1x
Serial
8x
USB 2.0
1x
VGA
cardExpansion slots
1x
1.5V AGP
2x
32-bit PCI
notes Notes

KV-80: Gbit LAN/IEEE1394

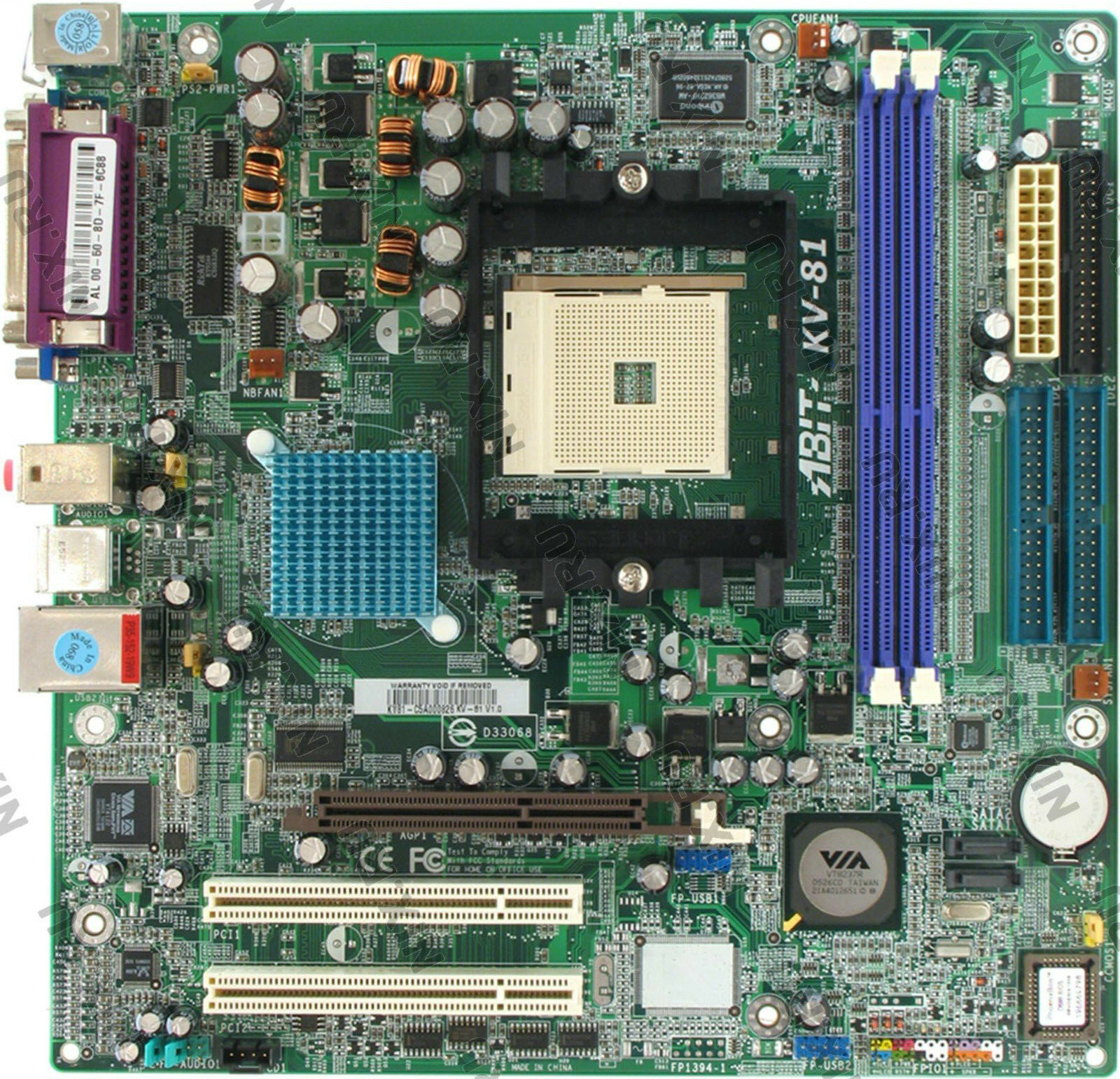

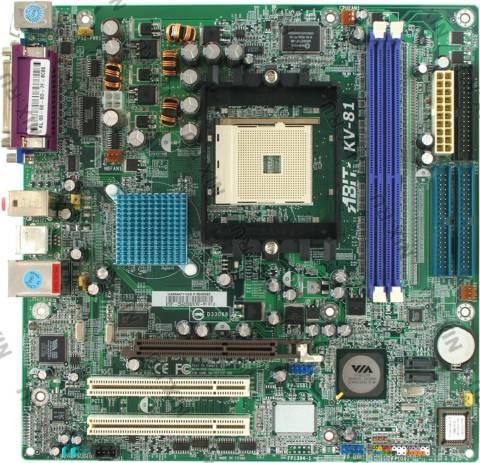

KV-81: Gbit LAN

KV-82: 10/100Mbit LAN

KV-80/KV-81 Uses VT6122 Gigabit LAN

KV-82 Uses VT6107 100Mbit LAN

Last updated 2025-07-03T18:02:44Z
Board info score is 9.6/10
bios 8 BIOS files available

vendor Award - 8 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
01/02/2006-K8M800-8237-6A7L1A1DC-19
Note
Core version
6.00PG
BIOS version
Logs
POST string
01/02/2006-K8M800-8237-6A7L1A1DC-18
Note
Core version
6.00PG
BIOS version
Logs
POST string
07/26/2005-K8M800-8237-6A7L1A1DC-17
Note
Core version
6.00PG
BIOS version
Logs
POST string
06/09/2005-K8M800-8237-6A7L1A1DC-16
Note
Core version
6.00PG
BIOS version
Logs
POST string
06/13/2005-K8M800-8237-6A7L1A1DC-15
Note
Core version
6.00PG
BIOS version
Logs
POST string
05/18/2005-K8M800-8237-6A7L1A1DC-14
Note
Core version
6.00PG
BIOS version
Logs
POST string
02/14/2005-K8M800-8237-6A7L1A1DC-13
Note
Core version
6.00PG
BIOS version
Logs
POST string
10/20/2004-K8M800-8237-6A7L1A1DC-12
Note
Core version
6.00PG
BIOS version
Logs
drv 11 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
A4.06
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
17.9MB
Filename
Name
Version
4.49V
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
1.4MB
Filename
Name
Version
5.70d
OS support
Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
3.9MB
Filename
Name
Version
4.3
OS support
MS-DOS Windows 2000 Windows 3.1x Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP/2k3
Arch
x86 , x86-64
Size
6.2MB
Filename
Name
Version
16.01.22.01
OS support
Windows 9x
Arch
Size
5.7MB
Filename
Name
Version
5.40A
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86 , x86-64
Size
10.8MB
Filename
Name
Version
2.56
OS support
Windows 2000 Windows 9x
Arch
x86
Size
13.1MB
Filename
Name
Version
V5.50b
OS support
Windows 2000 Windows NT 4.0 Windows Vista Windows XP/2k3
Arch
x86
Size
392.3KB
Filename
Name
Version
6.14.10.0380
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
3.2MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
Size
12.7MB
Filename
Version
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
1.4MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2003-08
File
Logs
Chip
Release date
2003-08
File
Logs
Chip
Release date
2002-10-01
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2004-12-15
File
Logs
Chip
Release date
2006-06-09
File
Logs
Chip
Release date
1998-09-25
File
Logs
Chip
Release date
File
Logs

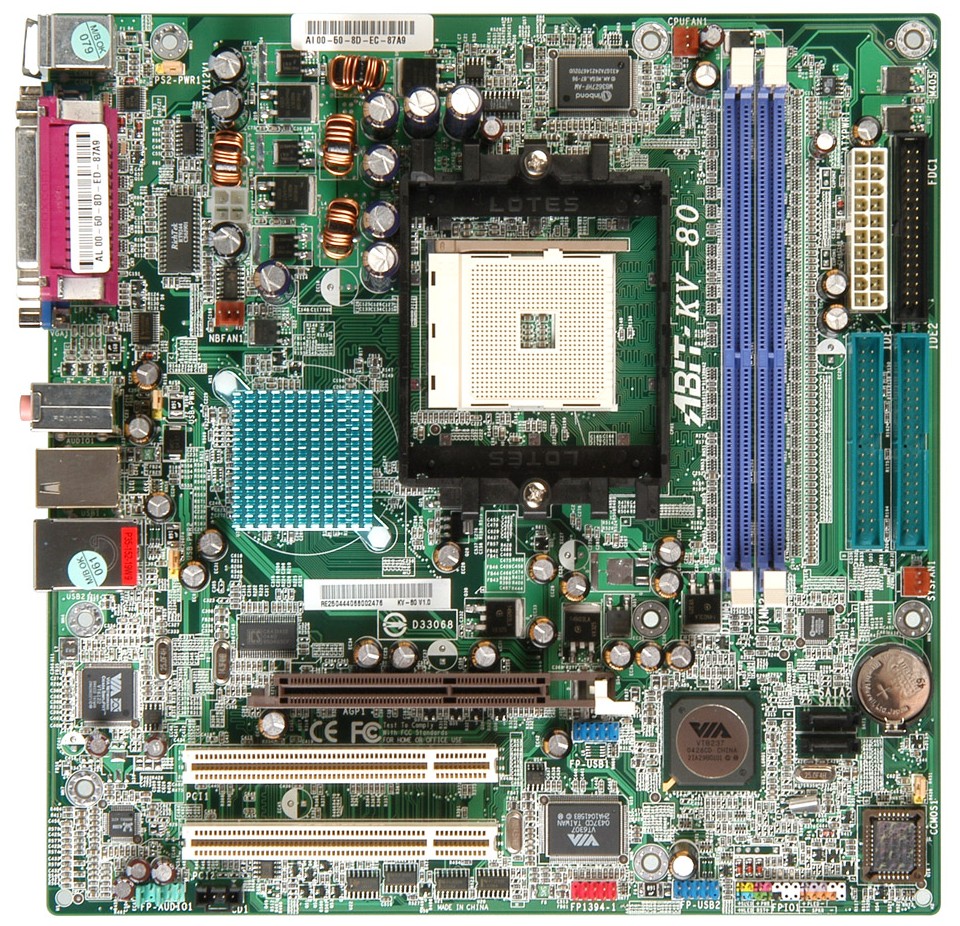

image1 Image 1 of 11 (evasive)
image2 Image 2 of 11
image3 Image 3 of 11 (ABit)
image4 Image 4 of 11
image5 Image 5 of 11 (ABit)
image6 Image 6 of 11 (ABit)
image7 Image 7 of 11 (ABit)
image8 Image 8 of 11
image9 Image 9 of 11 (ABit)
image10 Image 10 of 11 (ABit)
image11 Image 11 of 11 (ABit)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
