ABit AB-BX6
Logs
chipChipset
cpuSocket
Slot 1 (Slot-242)
speedFSB speeds
66MHz75MHz83MHz100MHz112MHz133MHz
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 244mm
chipCache
None/Integrated in the CPU
ramMax RAM size
1GB
ramRAM types
SDR UDIMMSDR UDIMM ECC
pwrPSU connector
ATX 1.x (20-pin ATX)
connI/O ports
1x
Floppy interface
2x
IDE interface
1x
IrDA
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
2x
USB 1.x
cardExpansion slots
3x
16-bit ISA
1x
3.3V AGP
4x
32-bit PCI
Last updated 2024-08-03T05:34:43Z
Board info score is 9.8/10
bios 13 BIOS files available

vendor Award - 13 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
02/21/2000-i440BX-W83977-2A69KA1AC-00
Note
Core version
4.51PG
BIOS version
Logs
POST string
11/23/1999-i440BX-W83977-2A69KA1AC-MX
Note
Core version
4.51PG
BIOS version
Logs
POST string
07/13/1999-i440BX-W83977-2A69KA1AC-MP
Note
Core version
4.51PG
BIOS version
Logs
POST string
07/01/1999-i440BX-W83977-2A69KA1AC-LW
Note
Core version
4.51PG
BIOS version
Logs
POST string
02/05/1999-i440BX-W83977-2A69KA1AC-JL
Note
Core version
4.51PG
BIOS version
Logs
POST string
12/31/1998-i440BX-W83977-2A69KA1AC-HV
Note
Core version
4.51PG
BIOS version
Logs
POST string
10/22/1998-i440BX-W83977-2A69KA1AC-GX
Note
Core version
4.51PG
BIOS version
Logs
POST string
10/06/1998-i440BX-W83977-2A69KA1AC-GQ
Note
Core version
4.51PG
BIOS version
Logs
POST string
08/06/1998-i440BX-W83977-2A69KA1AC-FQ
Note
Core version
4.51PG
BIOS version
Logs
POST string
07/10/1998-i440BX-W83977-2A69KA1AC-EG
Note
Core version
4.51PG
BIOS version
Logs
POST string
04/27/98-i440BX-W83977-2A69KA1AC-DL
Note
Core version
4.51PG
BIOS version
Logs
POST string
04/09/98-i440BX-W83977-2A69KA1AC-CW
Note
Core version
4.51PG
BIOS version
Logs
POST string
04/01/98-i440BX-W83977-2A69KA1AC-AM
Note
Core version
4.51PG
BIOS version
Logs
drv 6 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
3.20.1008
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
Size
Empty
Filename
Name
Version
3.7B / 3.7D
OS support
MS-DOS NetWare Server 3 NetWare Server 4 OS/2 Warp 3.x Windows 3.1x Windows 9x Windows NT 3.5x
Arch
x86
Size
1.6MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
2.2MB
Filename
Version
OS support
Windows 2000 Windows 9x
Arch
x86
Size
1.5MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
x86
Size
569.7KB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
577.8KB
Filename
doc 1 board document available
Release date
File
Logs
Release date
1998-05-22
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2009-10
File
Logs
Chip
Release date
2000-06-20
File
Logs
Chip
Release date
1999-10-27
File
Logs
Chip
Release date
2013-04
File
Logs
Chip
Release date
2004-11
File
Logs
Chip
Release date
2025-10
File
Logs
Chip
Release date
2002-10-20
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2000-02
File
Logs
Chip
Release date
2000-10-01
File
Logs
Chip
Release date
2006-01
File
Logs
Chip
Release date
2002-10-20
File
Logs
Chip
Release date
1998-03
File
Logs
Family
Release date
File
Logs
Family
Release date
2002-02
File
Logs
Family
Release date
1998-01
File
Logs
Family
Release date
1998-01
File
Logs
Family
Release date
1999-05
File
Logs
Socket
Release date
File
Logs
Socket
Release date
1999-02
File
Logs
Socket
Release date
1997-05
File
Logs
image1 Image 1 of 4

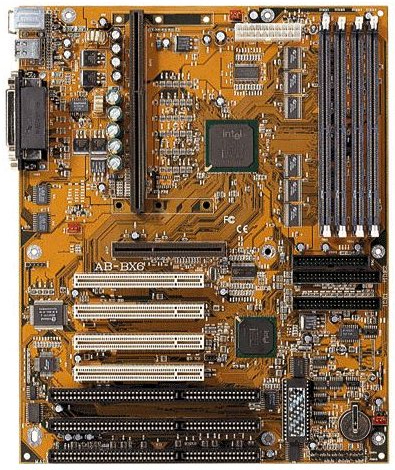

image2 Image 2 of 4 (Fo-91)
image3 Image 3 of 4 (Fo-91)

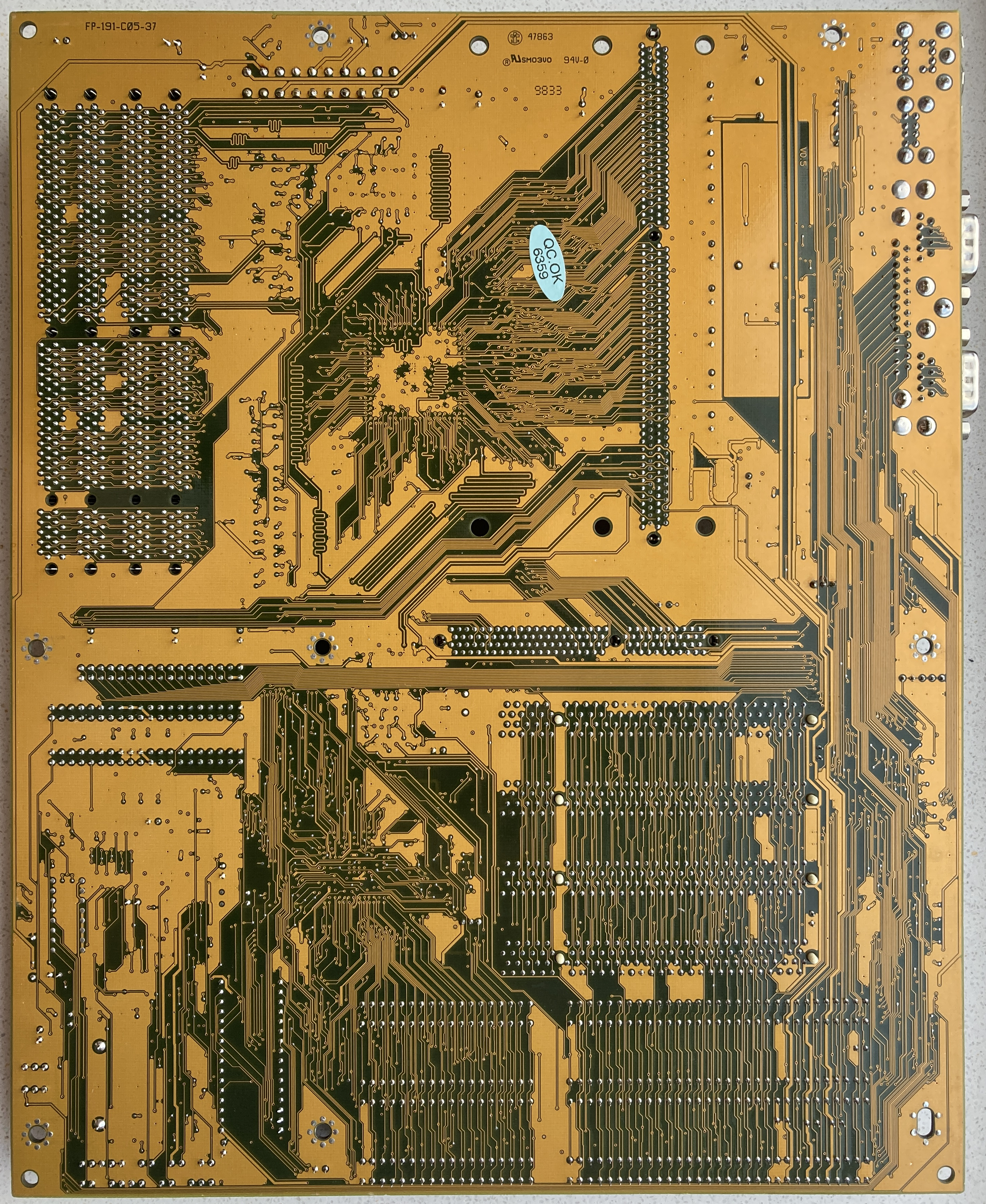

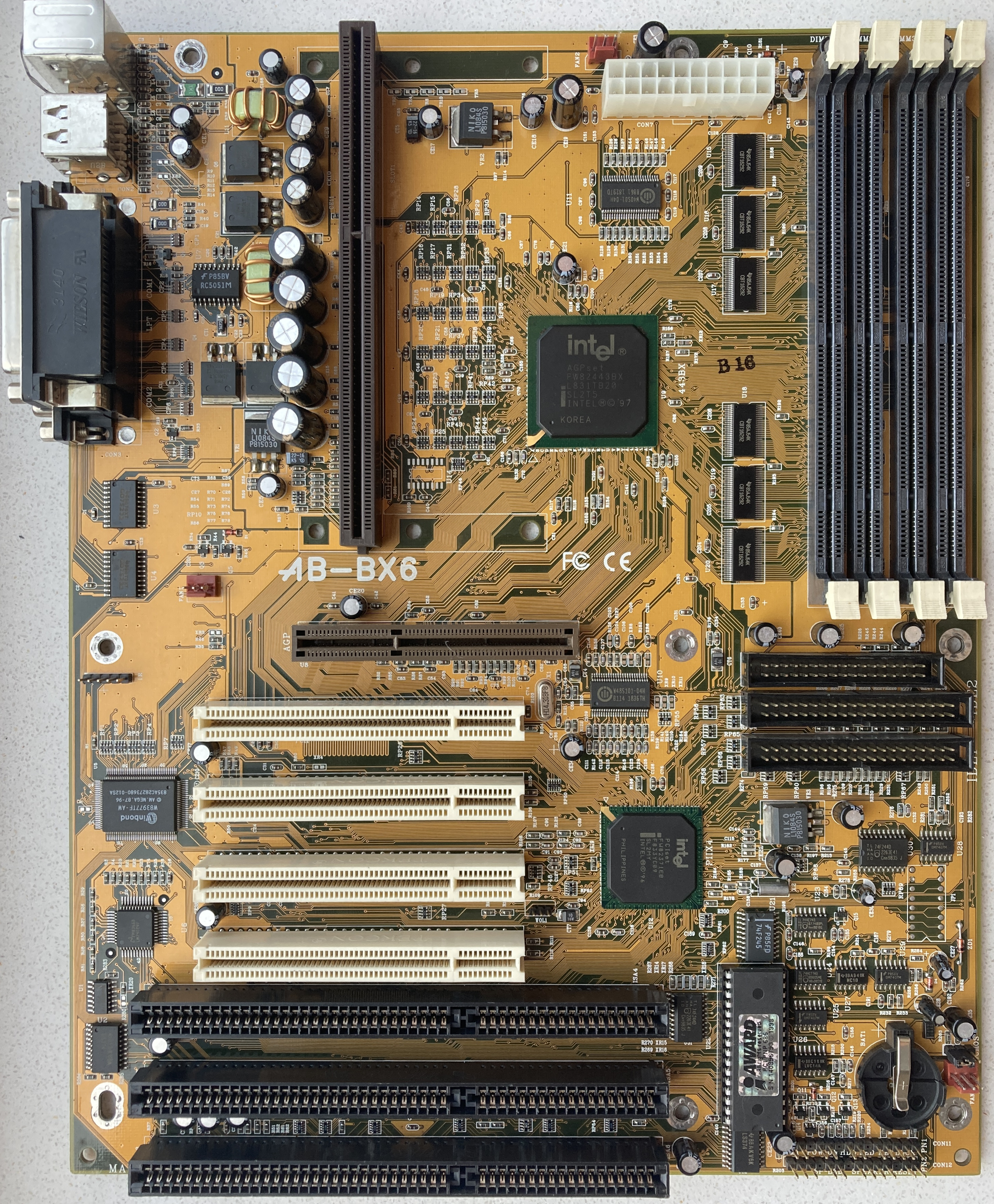

image4 Image 4 of 4
