ABit AB-BP6
Logs
chipChipset
cpuSocket
Socket 370 (PGA370)
speedFSB speeds
66MHz100MHz133MHz
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 240mm
chipCache
None/Integrated in the CPU
ramMax RAM size
768MB
ramRAM type
SDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX)
maxcpuMulti CPU support
2 CPUs
tag Also known as
connI/O ports
1x
Floppy interface
4x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
2x
USB 1.x
cardExpansion slots
2x
16-bit ISA
1x
3.3V AGP
5x
32-bit PCI
notes Notes

500/533MHz CPU only with latest bios.
Coppermine support only with hardware modification
The HPT onboard lacks speed but normally cannot be disabled unless the ROM part is removed like in the "NO HPT patched" one listed.

Last updated 2025-12-03T22:37:29Z
Board info score is 9.8/10
bios 6 BIOS files available

vendor Award - 6 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
04/20/2000-i440BX-W83977-2A69KA1SC-00
Note
Core version
4.51PG
BIOS version
Logs
POST string
04/20/2000-i440BX-W83977-2A69KA1SC-RU
Note
Core version
4.51PG
BIOS version
Logs
POST string
04/20/2000-i440BX-W83977-2A69KA1SC-RU
Note
NO HPT patched
Core version
4.51PG
BIOS version
Logs
POST string
03/29/2000-i440BX-W83977-2A69KA1SC-QQ
Note
Core version
4.51PG
BIOS version
Logs
POST string
11/03/1999-i440BX-W83977-2A69KA1SC-NJ
Note
Core version
4.51PG
BIOS version
Logs
POST string
06/08/1999-i440BX-W83977-2A69KA1SC-LP
Note
Core version
4.51PG
BIOS version
Logs
drv 7 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
2.344
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
137.6KB
Filename
Name
Version
3.20.1008
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
Size
Empty
Filename
Name
Version
3.7B / 3.7D
OS support
MS-DOS NetWare Server 3 NetWare Server 4 OS/2 Warp 3.x Windows 3.1x Windows 9x Windows NT 3.5x
Arch
x86
Size
1.6MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
2.2MB
Filename
Version
OS support
Windows 2000 Windows 9x
Arch
x86
Size
1.5MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
x86
Size
569.7KB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
577.8KB
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1996-05
File
Logs
Chip
Release date
2003-04
File
Logs
Chip
Release date
1999-03
File
Logs
Chip
Release date
2010-01
File
Logs
Family
Release date
File
Logs
Family
Release date
2002-02
File
Logs
Family
Release date
2000-02
File
Logs
Family
Release date
2001-06
File
Logs
Socket
Release date
File
Logs
Socket
Release date
1997-05
File
Logs
Socket
Release date
File
Logs
Socket
Release date
1999-04
File
Logs
Socket
Release date
1999-12
File
Logs
Socket
Release date
2000-07
File
Logs

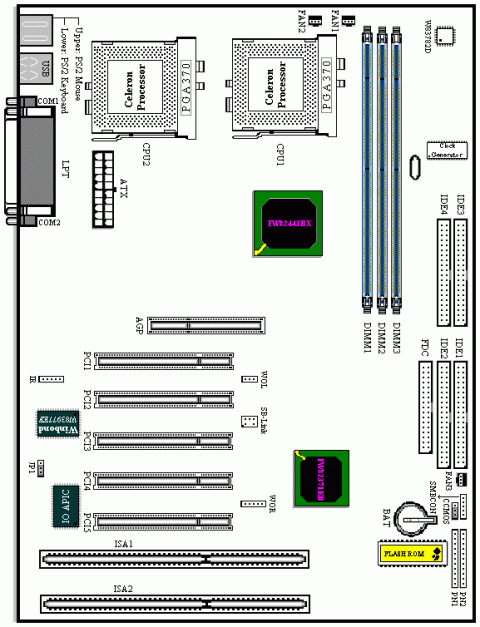

image1 Image 1 of 9 (Microhouse)
image2 Image 2 of 9 (Motherboard Continuum)
image3 Image 3 of 9 (mtgmackid)
image4 Image 4 of 9 (Sam Breen)

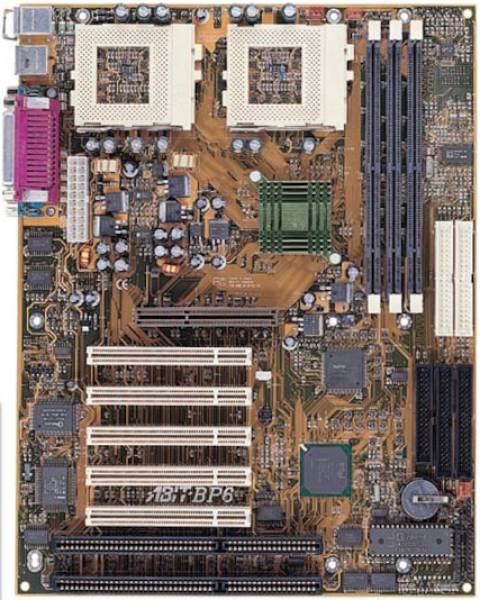

image5 Image 5 of 9
image6 Image 6 of 9 (Motherboard Continuum)
image7 Image 7 of 9 (mtgmackid)
image8 Image 8 of 9 (Sam Breen)
image9 Image 9 of 9 (Motherboard Continuum)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
