AAEON Technology SBC-558
Chipset
Socket
FSB speed 266MHz
Form factorSingle Board Computer
Dimensions185mm x 122mm
Max VRAM size2MB
Cache
None/Integrated in the CPU
Max RAM size
256MB
RAM type 144-pin SDR SO-DIMM
PSU connector
Empty
I/O ports1x
Disk-on-Chip Socket
1x
Floppy interface
1x
IDE interface
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
Serial
2x
USB 1.x
1x
VGA
Expansion slots1x
16-bit ISA
1x
PC/104+ (PC/104-Plus)
Last updated 2024-09-08T11:04:00Z
Board info score is 8.9/10
Chips
4 BIOS files available
Award - 4 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
12/19/2000-i430TX-W83977-2A59IAKDC-00
Note
Core version
4.51PG
BIOS version
Logs
POST string
06/15/2000-i430TX-W83977-2A59IAKDC-00
Note
Core version
4.51PG
BIOS version
Logs
POST string
01/19/2000-i430TX-W83977-2A59IAKDC-00
Note
Core version
4.51PG
BIOS version
Logs
POST string
04/10/2002-i430TX-W83977-2A59IAKDC-00
Note
Core version
4.51PG
BIOS version
Logs
14 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.3.2
OS support
MS-DOS
Windows 3.1x
Arch
x86
Size
1019.2KB
Filename
Name
Version
2.2.7
OS support
OS/2 Warp 3.x
OS/2 Warp 4.x
Arch
x86
Size
1.1MB
Filename
Name
Version
3.06
OS support
Windows 9x
Arch
x86
Size
148.7KB
Filename
Name
Version
4.05
OS support
Windows 9x
Arch
x86
Size
251.3KB
Filename
Name
Version
N/A
OS support
Windows 9x
Arch
x86
Size
1.7MB
Filename
Name
Version
1.29
OS support
Windows NT 4.0
Arch
x86
Size
158.5KB
Filename
Name
Version
1.14
OS support
Windows NT 3.5x
Arch
x86
Size
41.4KB
Filename
Name
Version
1.29
OS support
Windows NT 4.0
Arch
x86
Size
304KB
Filename
Name
Version
3.00
OS support
OS/2 Warp 3.x
Windows NT 3.5x
Windows NT 4.0
Arch
x86
Size
1.2MB
Filename
Name
Version
3.7B / 3.7D
OS support
MS-DOS
NetWare Server 3
NetWare Server 4
OS/2 Warp 3.x
Windows 3.1x
Windows 9x
Windows NT 3.5x
Arch
x86
Size
1.6MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Arch
x86
Size
2.2MB
Filename
Version
OS support
Arch
Size
Filename
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
1998-01
File
Logs

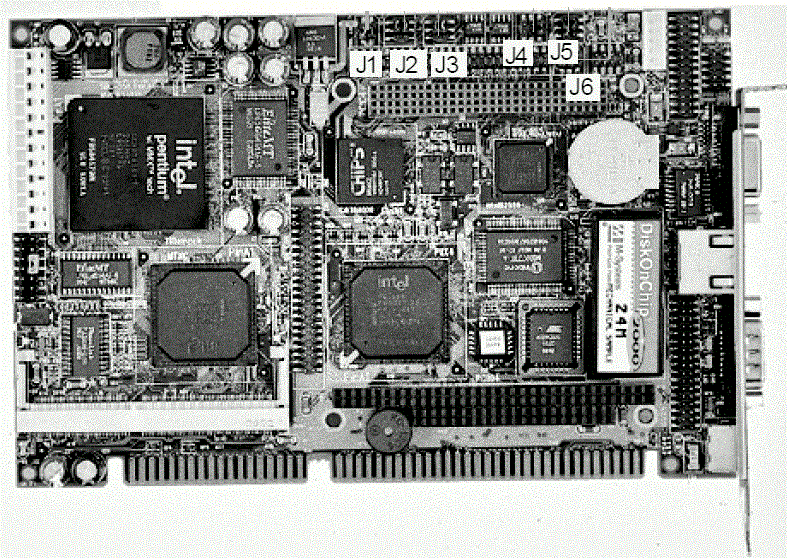

Image 1 of 2 (evasive)

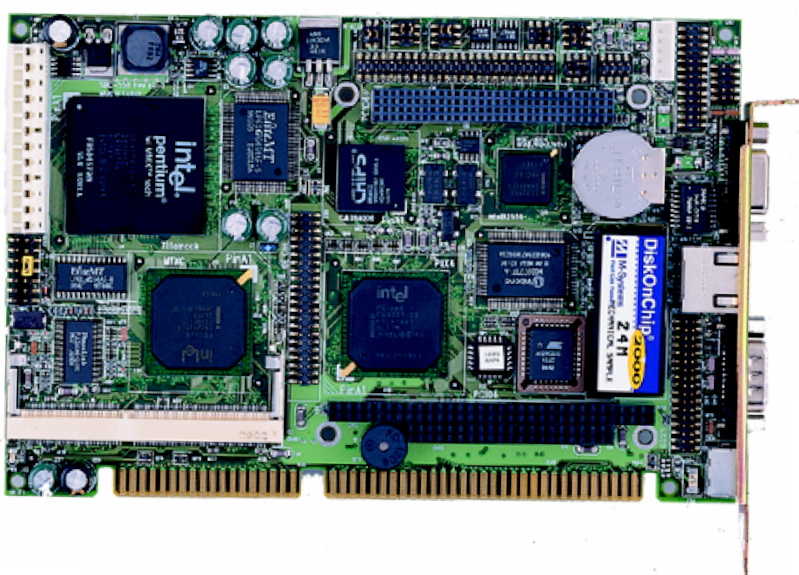

Image 2 of 2 (evasive)
