PGC (Professional Graphics Controller)
Logs
connConnector
DE-9
connConn. part number
Empty
signalElectrical interfaces
Empty
doc No documents available
notes Notes

Origionally designed to work with the IBM 5175 monitor https://www.seasip.info/VintagePC/pgc.html

Pin Assignments and Signal Levels

  • Input level: 0.7Vpp
  • Composite sync TTL negative

Pin Input Signal

  1. Red
  2. Green
  3. Blue
  4. Sync Composite TTL
  5. PGA modes 0:400 Lines, 1:480 Lines
  6. GND Red
  7. GND Green
  8. GND Blue
  9. GND Shield

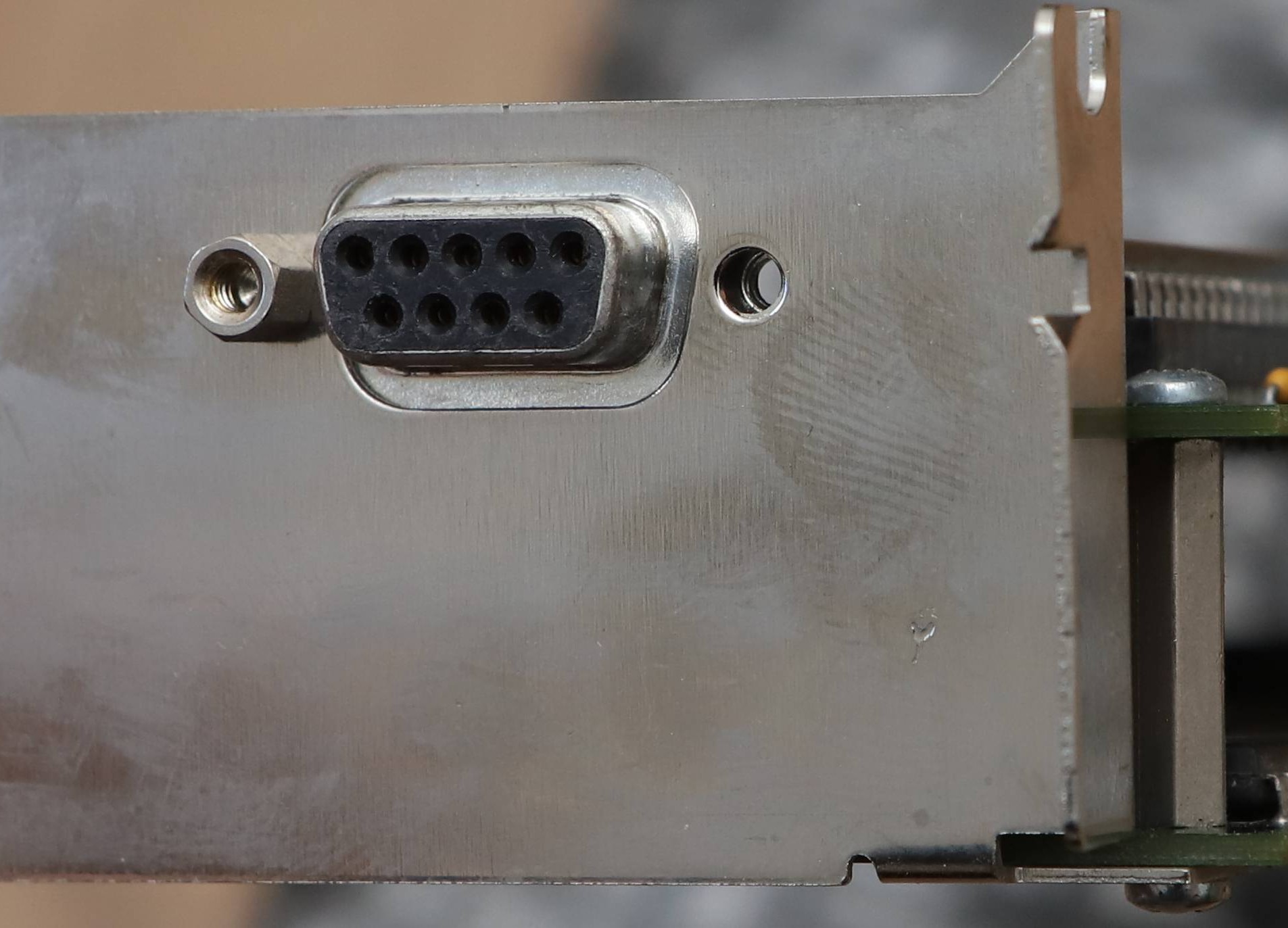

image1 Image 1 of 1 (Predator99)
