XFX PV-T960-S1S 4V3.0
Logs
typeType
Video
interfaceInterface
signalSignaling
PCIe 1.0 PCIe 2.0
datePCI ID
0610 0635
ramRAM type
DDR2
ramRAM size
768MB
chip Chips and specs
-> Video
Nvidia GeForce 9600 GSO (G92)
tag Also known as
  • XFX GeForce 9600 GSO Fatality Edition 768MB
  • XFX GF 9600 GSO 580M 768MB DDR2 DUAL DVI TV PCI-E
portintI/O ports
2x
  • DVI-I
1x
  • 7-pin Mini-DIN
1x
  • 2x13 PCB edge fingers
powerPower connectors
1x
wrench No card specific known issues
  • Bumpgate

These cards are likely to suffer a premature failure due to the defective 90nm process node from TSMC used back in the day, where the die underfill used was inappropriate for the chip design.

On Nvidia GPUs it mainly affects all 90/80/65 and some 55 nm GPUs (the A revisons of G9x and GT200 chips).

You can see a very detailed explanation of this issue by RIP Felix on YouTube

Last updated 2025-11-29T19:32:33Z
bios 1 card BIOS file available
Version
Note
File
Logs
Version
62.92.4C.00.37
Note
File
Logs
drv 2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
175.19
OS support
Windows XP/2k3
Arch
x86-64
Size
48.1MB
Filename
Name
Version
175.19
OS support
Windows XP/2k3
Arch
x86
Size
36.9MB
Filename
doc No card documents available

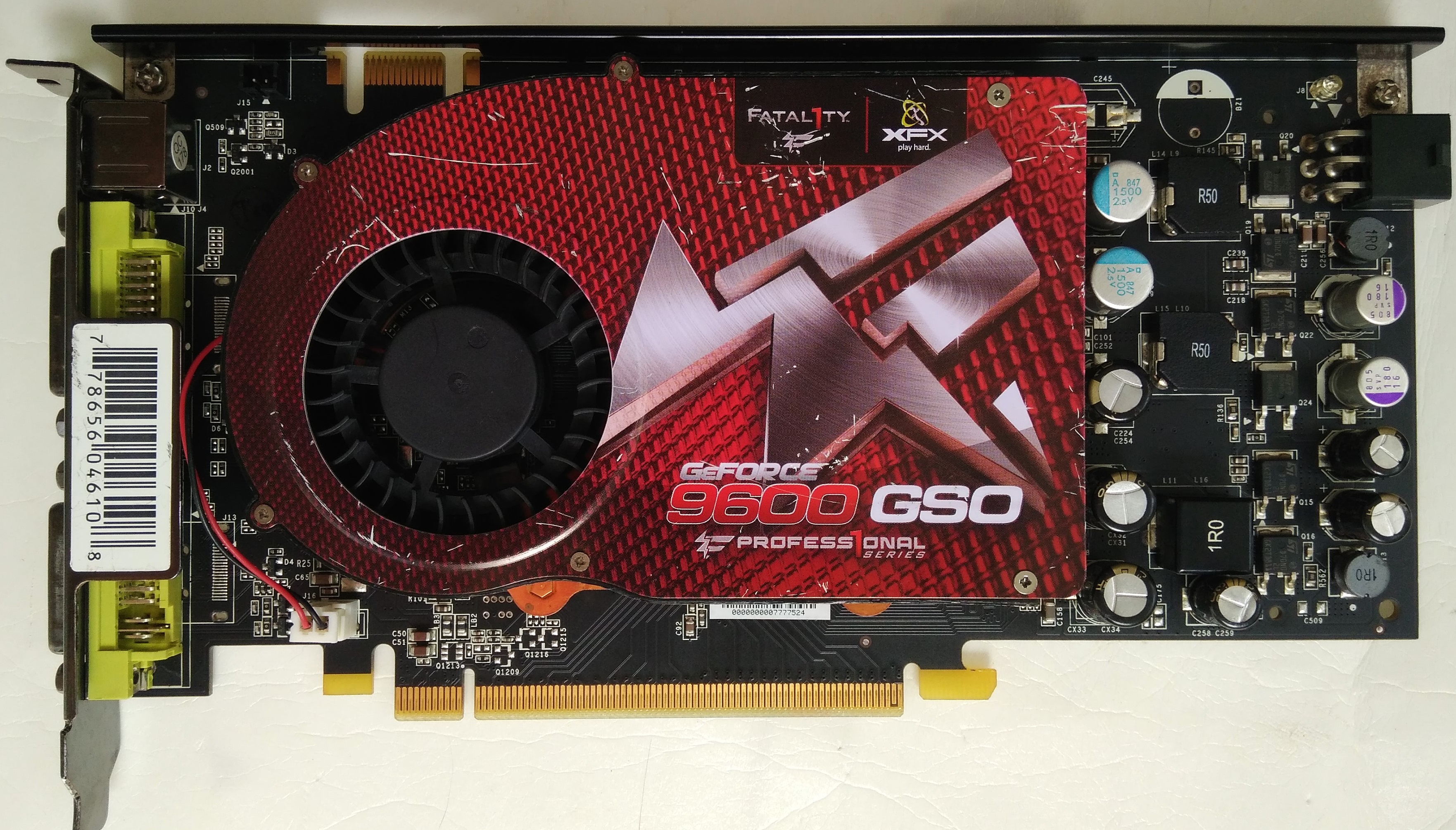

image1 Image 1 of 3 (Karbist)

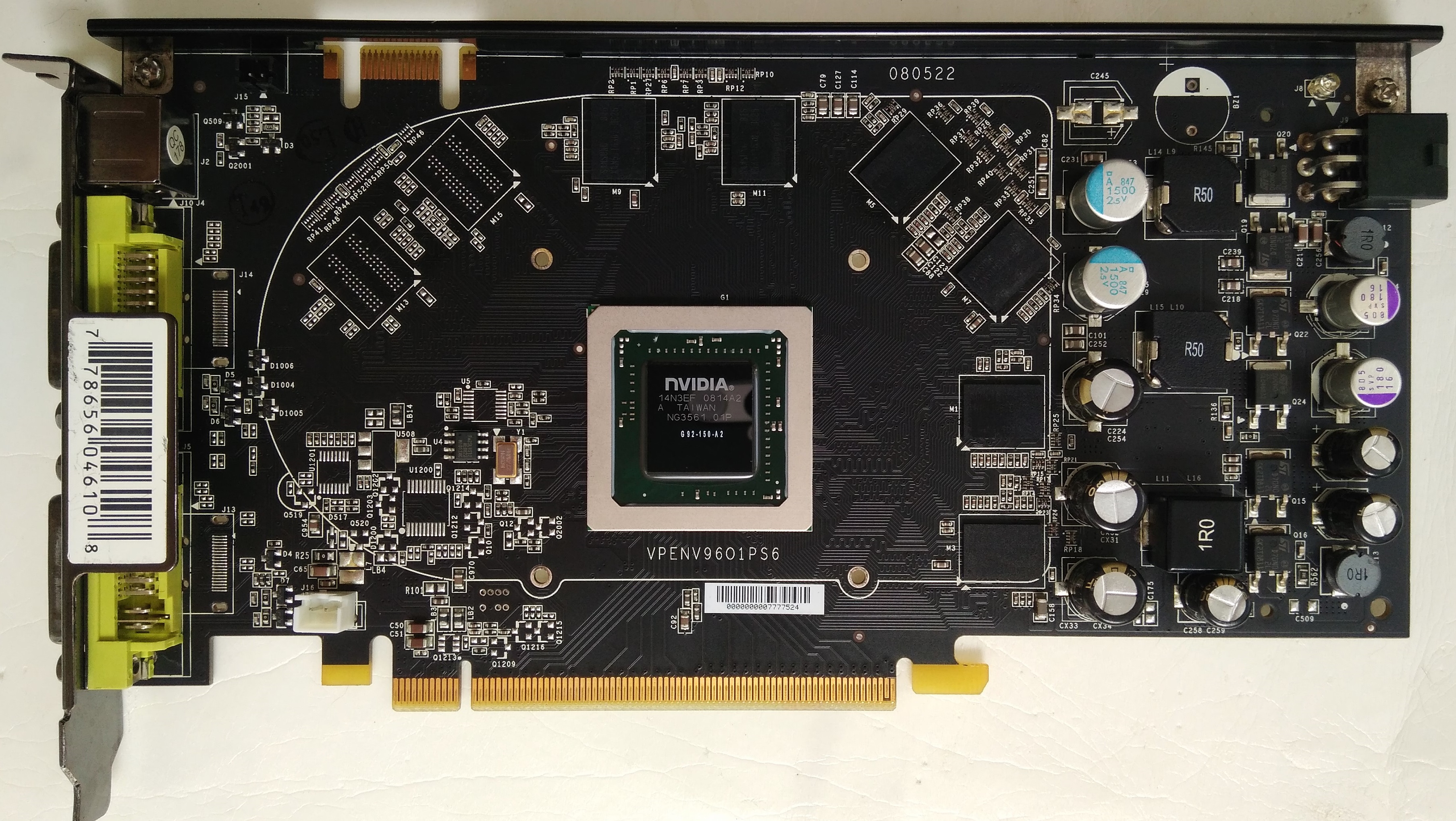

image2 Image 2 of 3 (Karbist)

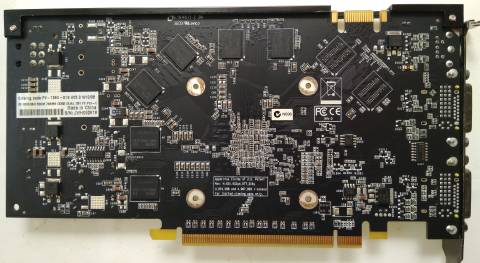

image3 Image 3 of 3 (Karbist)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
