XFX PV-T84J-UD14
Logs
typeType
Video
interfaceInterface
signalSignaling
PCIe 1.0
datePCI ID
0401 0402
ramRAM type
DDR3
ramRAM size
256MB
chip Chips and specs
-> Video
Nvidia GeForce 8600 GT (G84)
tag Also known as
  • XFX GF 8600 GT FATAL1TY 256MB DDR3
  • XFX GF 8600GT 620M 256MB DDR3 TV DVI PCI-E
portintI/O ports
2x
  • DVI-I
1x
  • 7-pin Mini-DIN
1x
  • 2x13 PCB edge fingers
powerPower connectors
Empty
wrench No card specific known issues
  • Bumpgate

These cards are likely to suffer a premature failure due to the defective 90nm process node from TSMC used back in the day, where the die underfill used was inappropriate for the chip design.

On Nvidia GPUs it mainly affects all 90/80/65 and some 55 nm GPUs (the A revisons of G9x and GT200 chips).

You can see a very detailed explanation of this issue by RIP Felix on YouTube

Last updated 2025-11-29T19:45:03Z
bios 1 card BIOS file available
Version
Note
File
Logs
Version
60.84.35.00.10
Note
File
Logs
drv 2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
175.19
OS support
Windows XP/2k3
Arch
x86-64
Size
48.1MB
Filename
Name
Version
175.19
OS support
Windows XP/2k3
Arch
x86
Size
36.9MB
Filename
doc No card documents available

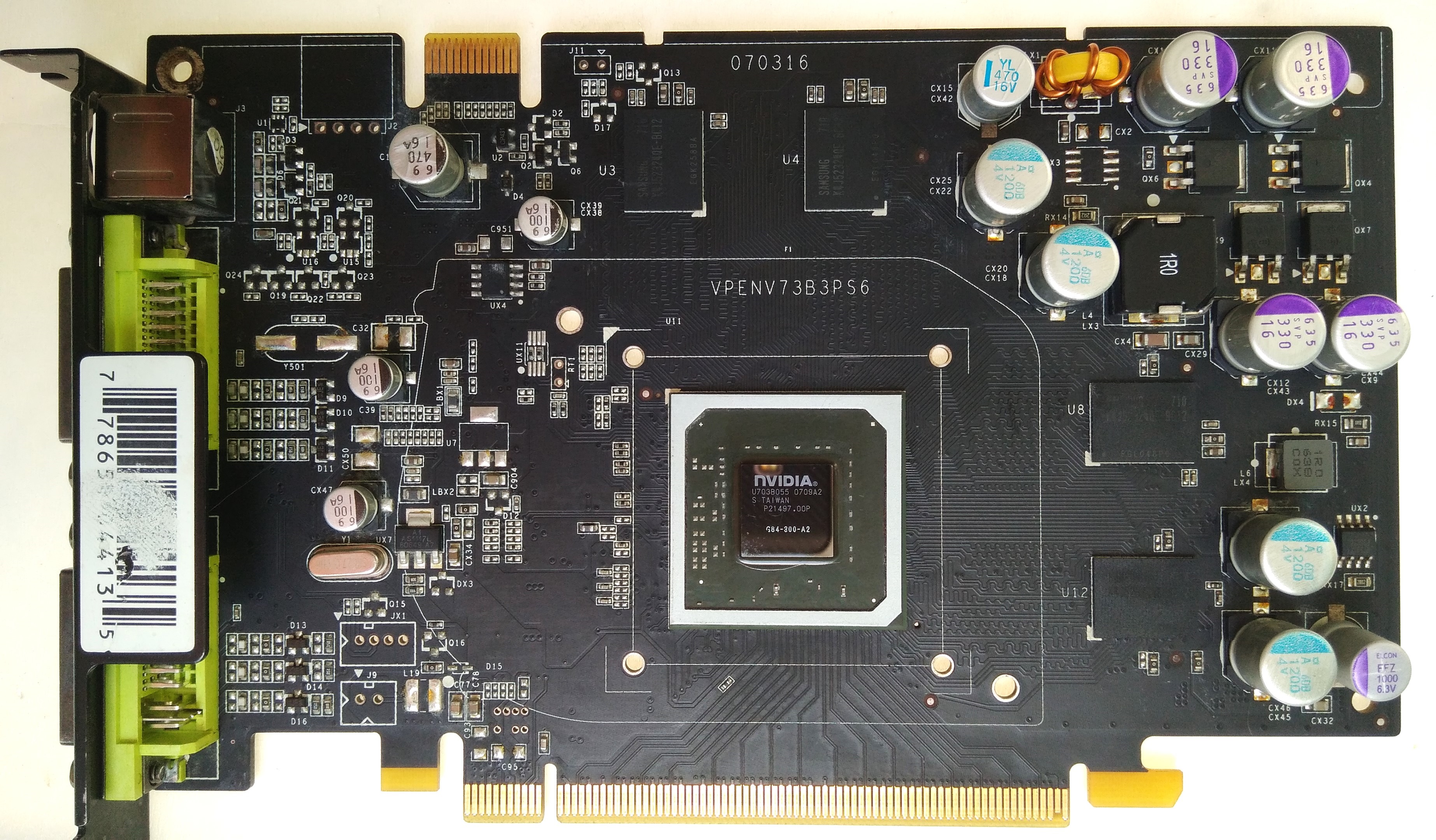

image1 Image 1 of 4 (Karbist)

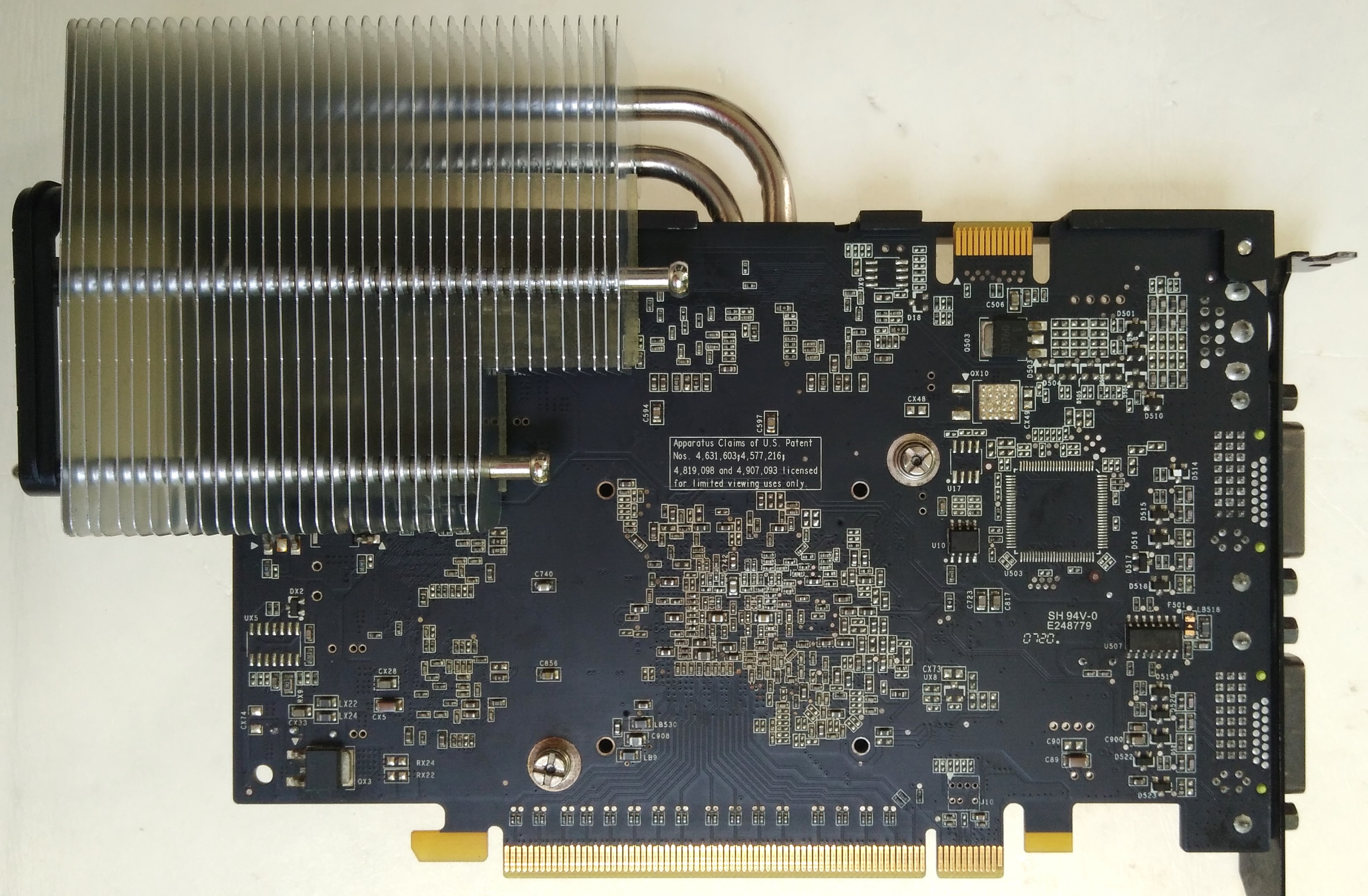

image2 Image 2 of 4 (Karbist)
image3 Image 3 of 4 (Karbist)

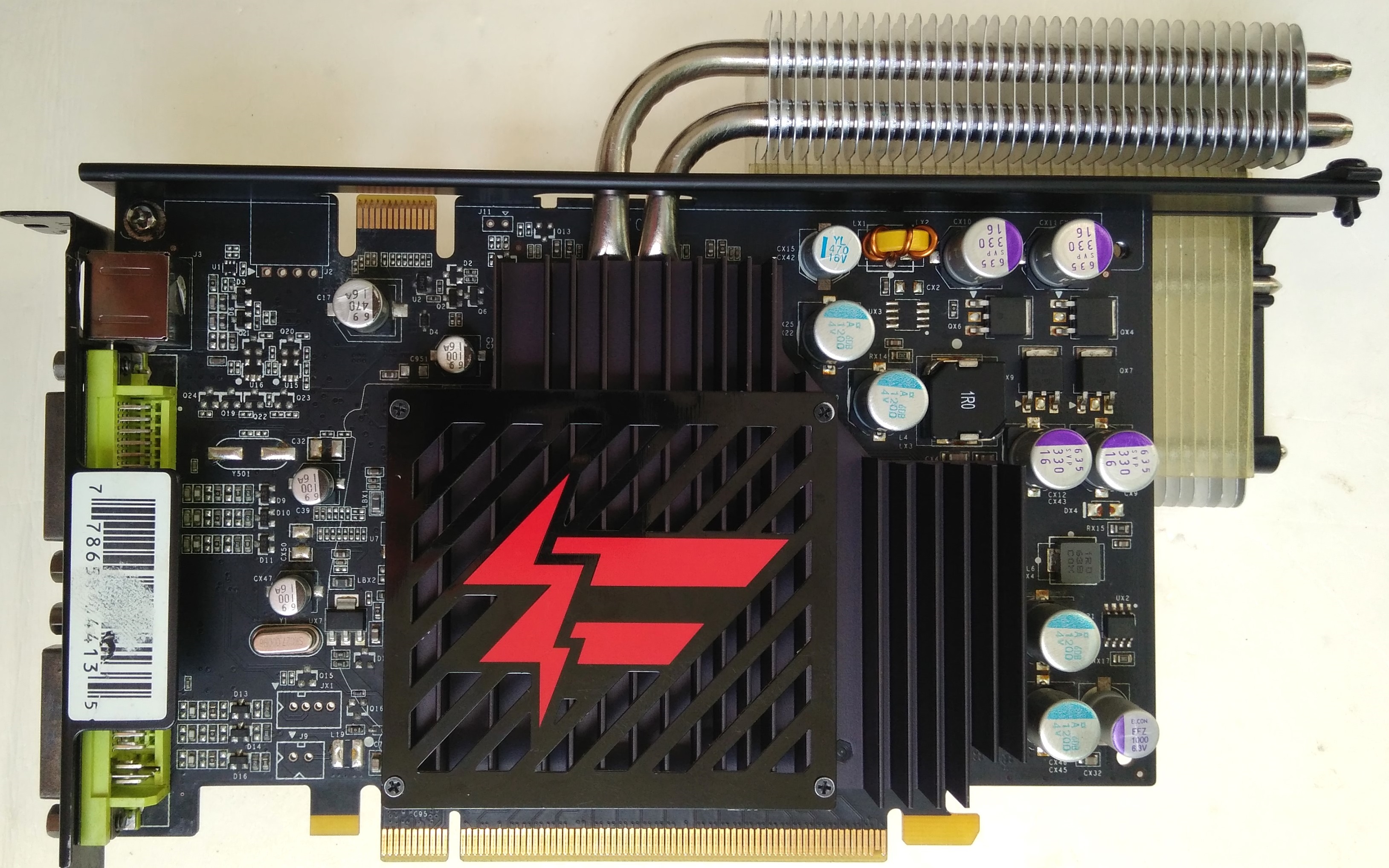

image4 Image 4 of 4 (Karbist)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
