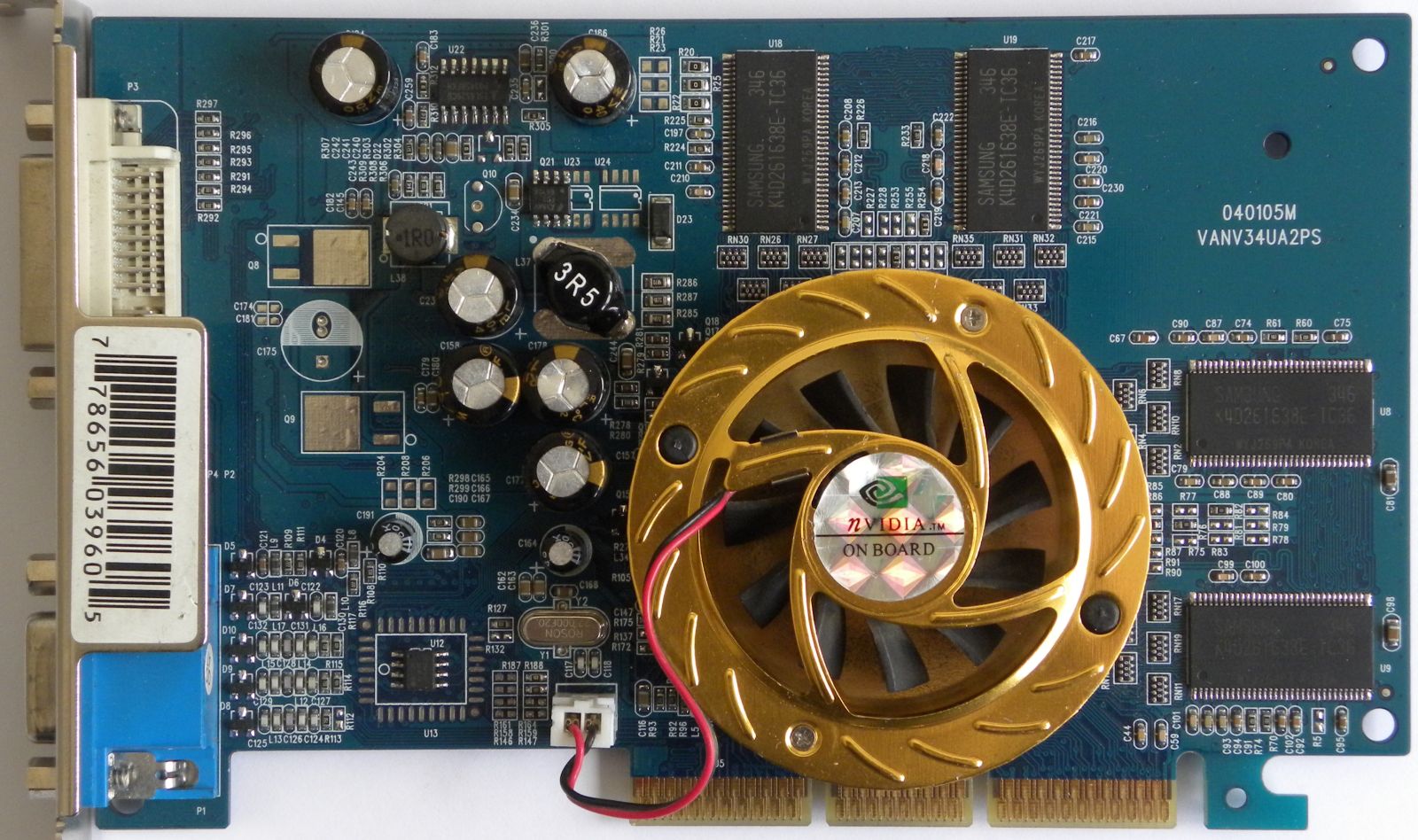

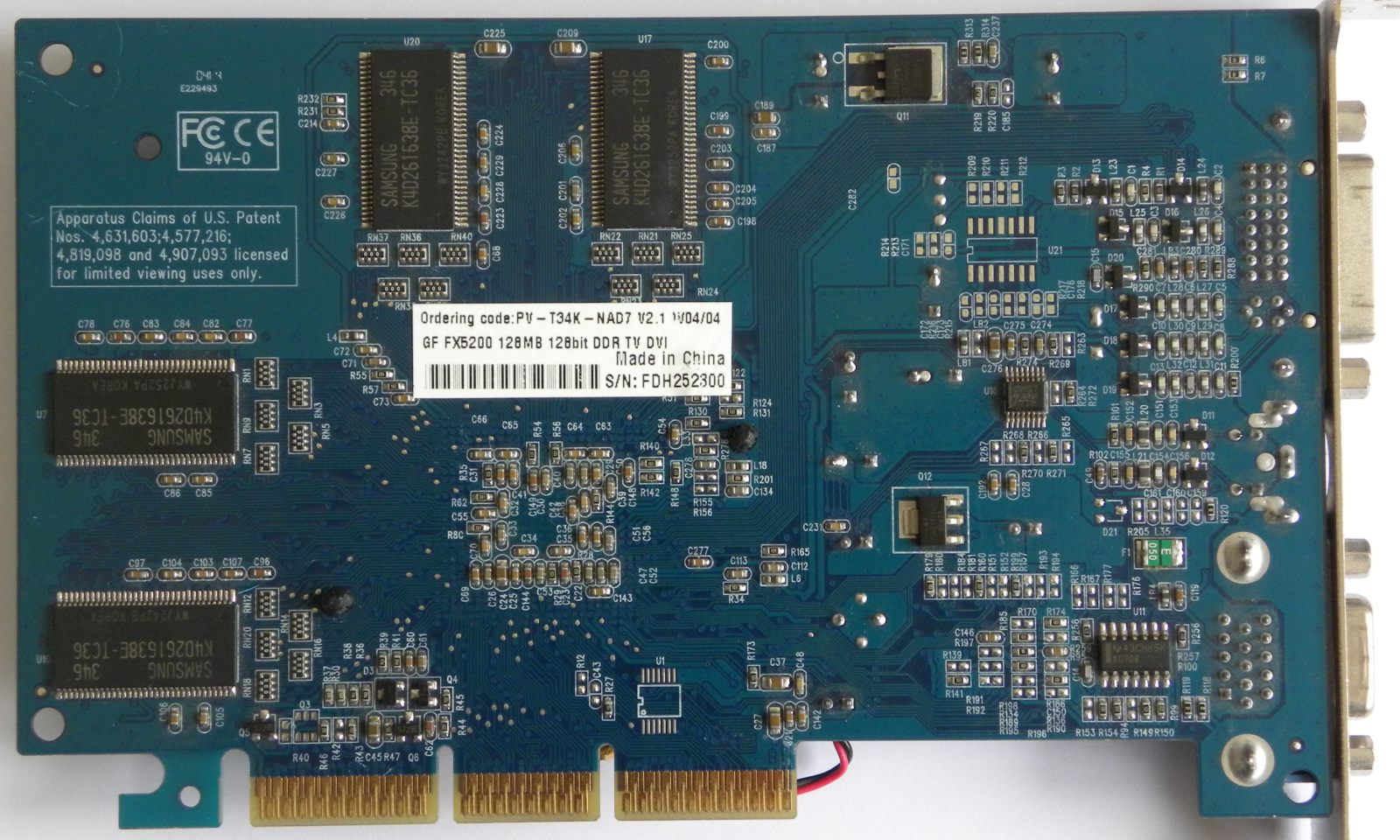

XFX PV-T34K-NAD7

Description

BIOS 0

Drivers 42

Documentation 0

Logs

Type

Video

Interface

Universal AGP

Signaling

AGP 8x

Slot height

PCI ID

0322 0320 032F

RAM type

DDR

RAM size

128MB

Chips and specs

-> Video

Nvidia GeForce FX 5200 (NV34)

Foundry: TSMC
Package: BGA-555
Die size: 124 mm²
Transistors: 45 million
Architecture: Rankine
Process node: 150nm
Release date: 6 March 2003

Features
ROPs	4
TMUs	4
OpenGL	1.5 (full), 2.0 (partial)
DirectX	9.0a
Pixel shaders	4 (version 2.0a)
Vertex shaders	2 (version 2.0a)

GPU specs
Core clock	250 MHz
Pixel rate	1 Gpixel/s
Vertex rate	125Mvertices/s
Memory clock	200 MHz
Texture rate	1 Gtexel/s
Memory bus width	64bit, 128 bit

Also known as

XFX GF FX5200 128MB 128bit DDR TV DVI

I/O ports

DVI-I

DVI-I

S-video (4-pin)

4-pin Mini-DIN

VGA

DE-15

Power connectors

Empty

Known issues

Faulty or Leaking Electrolytic Capacitors

Some cards may contain faulty or leaking electrolytic capacitors, which can negatively impact system performance or stability. These capacitors may exhibit issues such as bulging, leaking, or even exploding, potentially damaging other components on the card. Users should inspect their capacitors regularly and replace any that are faulty or leaking to avoid damage or system instability.

Last updated 2025-11-29T19:45:46Z
