Western Digital PARADISE VGA PLUS 16
Logs
typeType
Video
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
fccFCC ID
DBM5UEVGAPROF
ramRAM type
DRAM
ramRAM size
256KB
chip Chips and specs
-> Video
Paradise PVGA1A
MTL
Category Video
Memory Type DRAM
Data Bus Type 16-bit ISA
Video Processor WD PVGA1A
Video Types Supported VGA
Maximum Onboard Memory 256KB
Highest Resolution Supported 800 x 600
portintI/O ports
1x
  • 2x13 PCB edge fingers
1x
  • DE-15
powerPower connectors
Empty
Last updated 2025-10-07T16:18:09Z
biosc No BIOS files available
drv No drivers available
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1990-10-30
File
Logs
Chip
Release date
1990-10-30
File
Logs

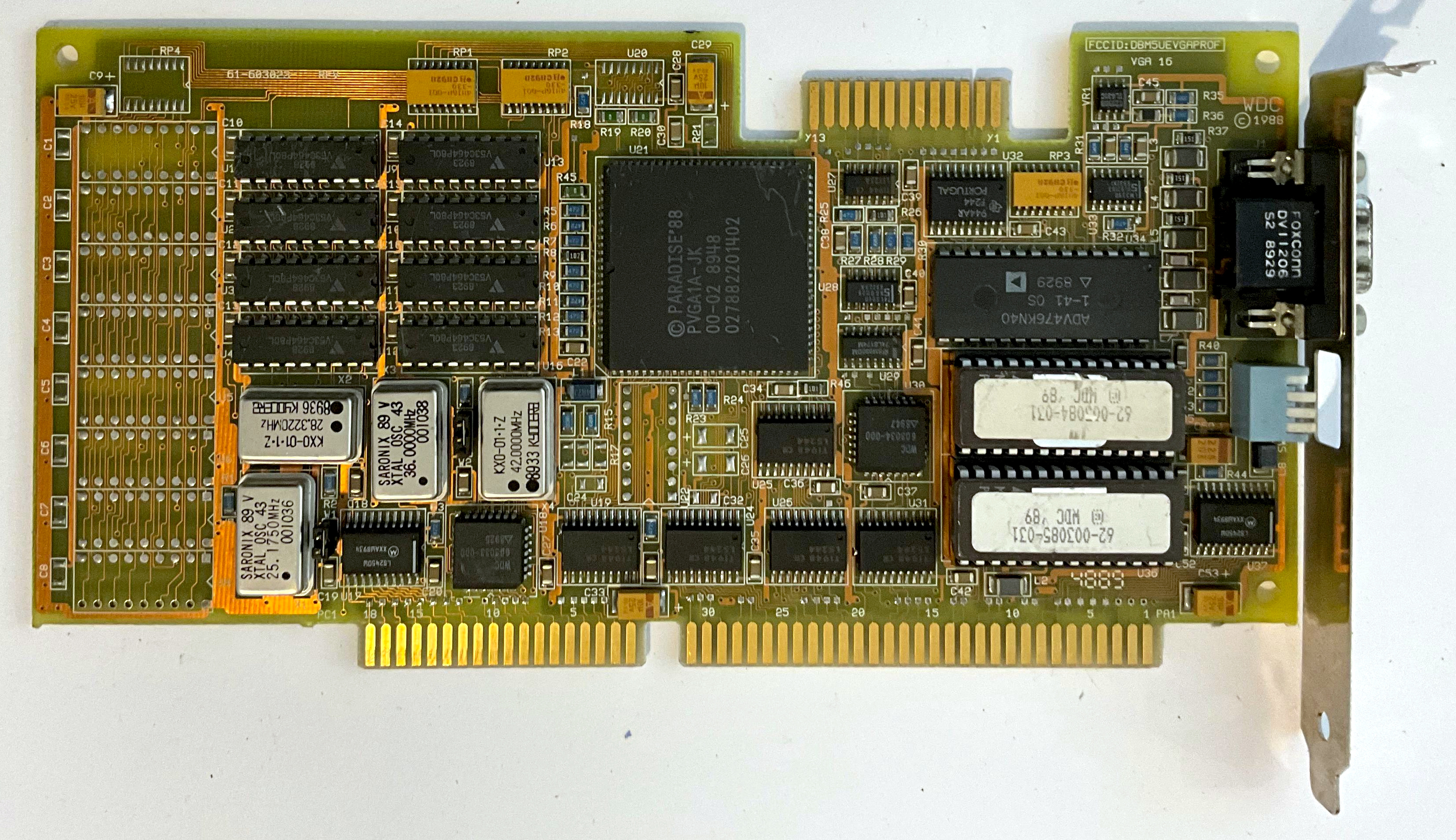

image1 Image 1 of 3 (Microhouse)

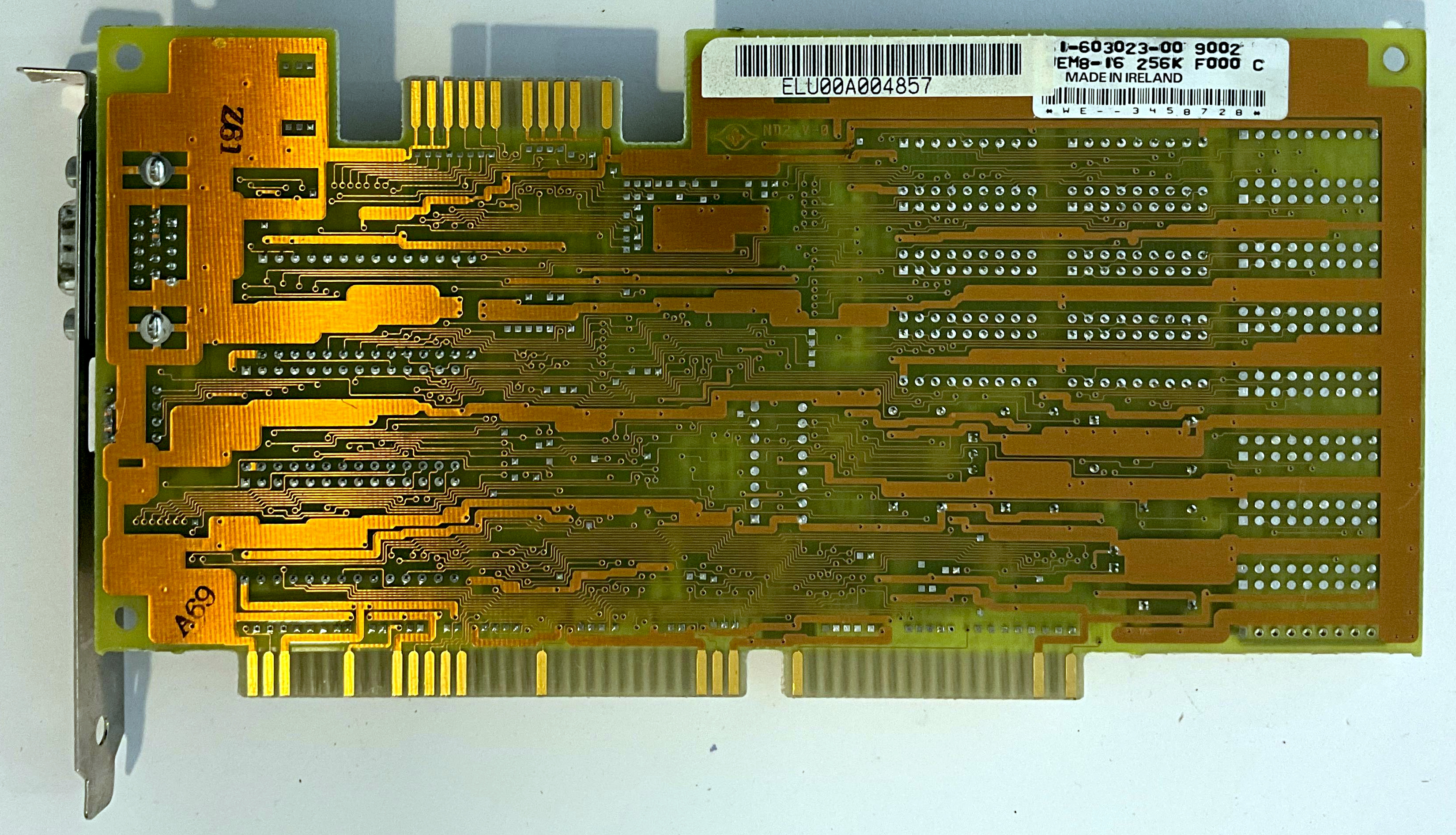

image2 Image 2 of 3 (IT Refresh)
image3 Image 3 of 3 (IT Refresh)
