Vision Net EZ-100TX
Logs
typeType
Network
interfaceInterface
signalSignaling
32-bit PCI
dimSlot height
1
datePCI ID
8139
dimDimensions
120 mm (width) x 50mm (length)
chip Chips and specs
-> Network
Realtek RTL8139A (PCI Fast Ethernet)
portintI/O ports
1x
  • RJ45, 10Mbps LAN, 100Mbps LAN
1x
  • 28-pin DIP socket
powerPower connectors
Empty
Last updated 2024-09-19T15:05:16Z
biosc No BIOS files available
drv 2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
5.719.0325.2009
OS support
Linux MS-DOS Mac OS X NetWare Server 3 NetWare Server 4 Windows 2000 Windows 7 Windows 9x Windows Vista Windows XP/2k3
Arch
x86
Size
39.5MB
Filename
Name
Version
V5.00
OS support
MS-DOS Mac OS X NetWare Server 3 NetWare Server 4 Netware Client32 SCO Unix - OpenServer Windows 2000 Windows 3.1x Windows 9x Windows NT 3.5x Windows NT 4.0
Arch
x86 , PPC
Size
3.3MB
Filename
doc 1 card document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

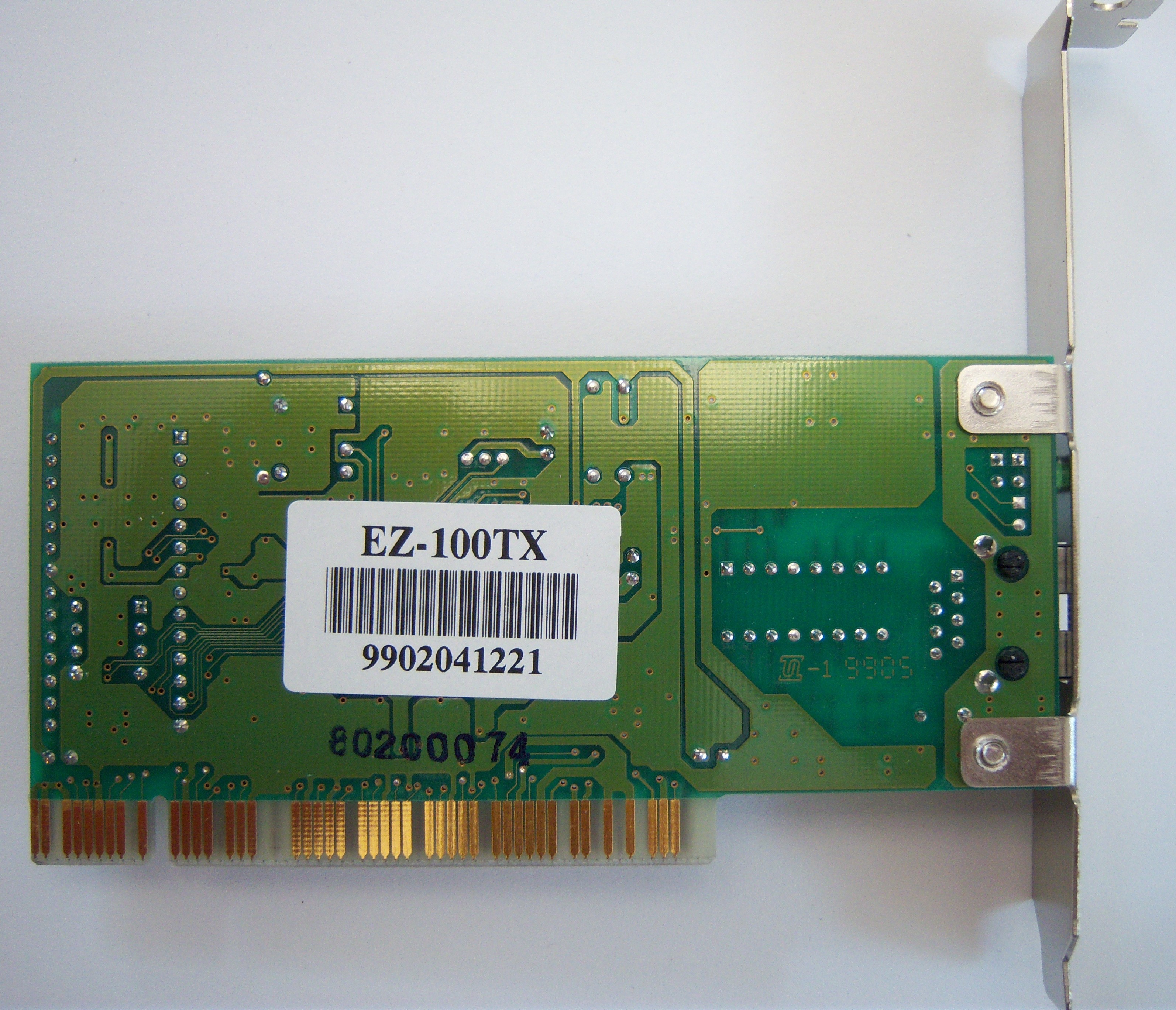

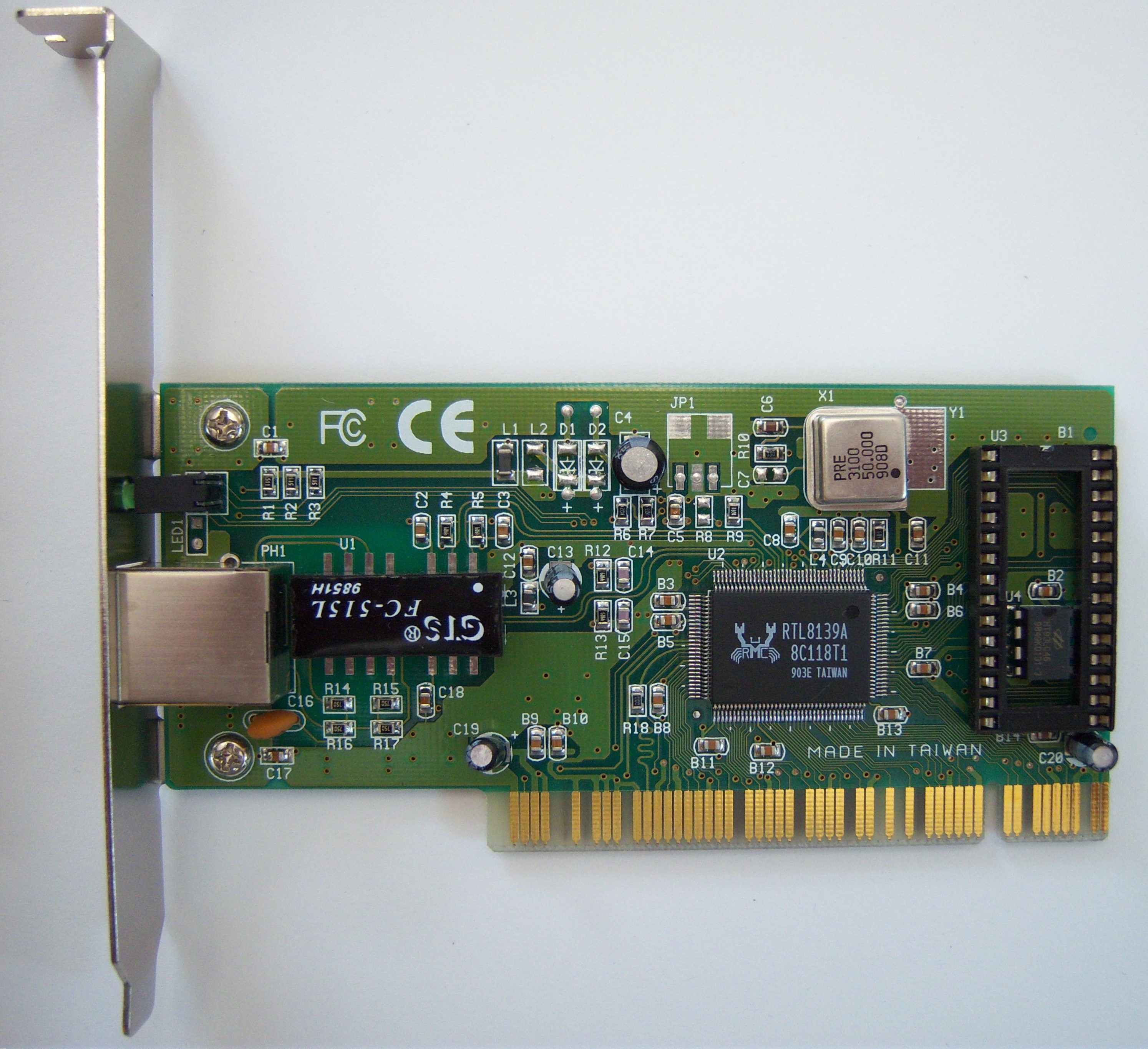

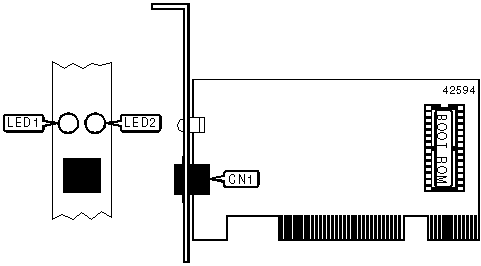

image1 Image 1 of 3 (Microhouse)
image2 Image 2 of 3 (M.Jo)
image3 Image 3 of 3 (M.Jo)
